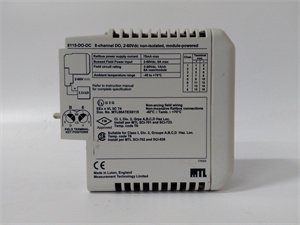

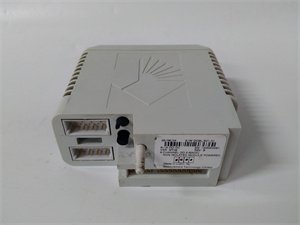

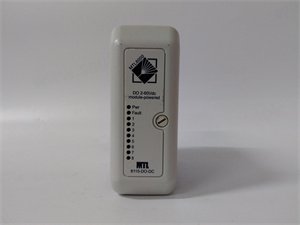

General Electric 8115-DO-DC Digital Output Module

The General Electric 8115 – DO – DC is a high – performance digital output module, designed to meet the diverse needs of industrial control and automation systems. As part of GE’s advanced product lineup, this module is engineered to deliver reliable and precise digital output capabilities.

The 8115 – DO – DC is widely used in industrial control, building automation, transportation, energy, and electricity sectors. It plays a crucial role in converting digital signals from PLCs or other control devices into controllable switch signals for external device control. This module features 8 isolated output channels, each capable of handling a maximum output current of 2A, ensuring sufficient power to drive a variety of industrial loads. It supports two output modes, NPN and PNP, providing flexibility for different application requirements. Additionally, the output delay can be configured through software, allowing for fine – tuning of the control process. With its overcurrent and short – circuit protection functions, the 8115 – DO – DC ensures safe and stable operation, protecting both the module and the connected equipment.

Technical Specifications

High – Current Output Capability

With each of the 8 isolated channels capable of delivering up to 2A of output current, the 8115 – DO – DC can power a wide range of industrial devices. This high – current capacity makes it suitable for applications where substantial power is required to drive motors, solenoids, or other high – load equipment.

Versatile Output Modes

The support for both NPN and PNP output modes gives users the flexibility to interface with different types of control systems and sensors. This adaptability allows for seamless integration into various industrial setups, whether they are based on NPN – or PNP – type logic.

Configurable Output Delay

The ability to configure the output delay through software is a significant advantage. It enables precise control over the timing of the output signals, which is crucial in applications where the sequence and timing of operations matter, such as in complex manufacturing processes or automated machinery.

Robust Protection Features

The built – in overcurrent and short – circuit protection functions safeguard the module from potential damage due to electrical faults. This not only ensures the reliable operation of the 8115 – DO – DC but also protects the connected devices and the overall industrial system from electrical hazards.

Easy Installation

Designed for guide rail installation, the 8115 – DO – DC can be quickly and easily mounted in control panels. Its compact size of 176 mm x 110 mm x 32 mm and lightweight of 0.3 kg further facilitate installation, reducing the time and effort required for system setup.

In industrial control settings, the 8115 – DO – DC is used to control the operation of conveyor belts, robotic arms, and other automated machinery. For example, in a manufacturing plant, it can be used to turn on and off motors that drive conveyor belts, ensuring the smooth movement of products along the production line.

In building automation, the module is deployed to control lighting systems, HVAC units, and access control devices. It can be programmed to turn on lights at specific times or adjust the temperature settings of HVAC systems based on predefined schedules or sensor inputs.

In the transportation industry, the 8115 – DO – DC can be found in applications such as controlling the opening and closing of automated gates in parking lots or the operation of signaling systems in railway yards.

In the energy and electricity sector, it plays a role in controlling the operation of power distribution equipment, such as circuit breakers and relays. It can also be used to monitor and control the performance of generators and other electrical equipment, ensuring the stable supply of electricity.

Installation and Maintenance

Pre – installation preparation: Before installing the 8115 – DO – DC, ensure that the guide rail where it will be mounted is clean and free from any debris. Check the power supply voltage to confirm it falls within the 2 – 60 VDC range specified for the module. Verify the compatibility of the module’s output modes (NPN/PNP) with the connected control system. Also, make sure that the software used for configuration is properly installed and updated on the control device.

Maintenance recommendations: Regularly inspect the connections of the 8115 – DO – DC to ensure they are secure. Check for any signs of overheating, such as discoloration or unusual warmth around the module. Monitor the output signals using appropriate diagnostic tools to ensure they are within the expected range. If an overcurrent or short – circuit event occurs, carefully review the connected devices and wiring for any faults before resetting the module. Periodically update the software configuration if new features or bug fixes are available to optimize the module’s performance.

Product Guarantee

General Electric offers a comprehensive product guarantee for the 8115 – DO – DC. The module is rigorously tested during the manufacturing process to ensure it meets high – quality standards. GE provides a standard warranty period, during which, if the module shows any defects in materials or workmanship, the company will offer free repair or replacement. Additionally, GE’s technical support team is available to assist customers with installation, configuration, and troubleshooting. They can provide detailed guidance and solutions to any issues that may arise during the use of the 8115 – DO – DC. This commitment reflects GE’s confidence in the reliability and performance of the module, giving customers peace of mind when integrating it into their industrial control systems.
