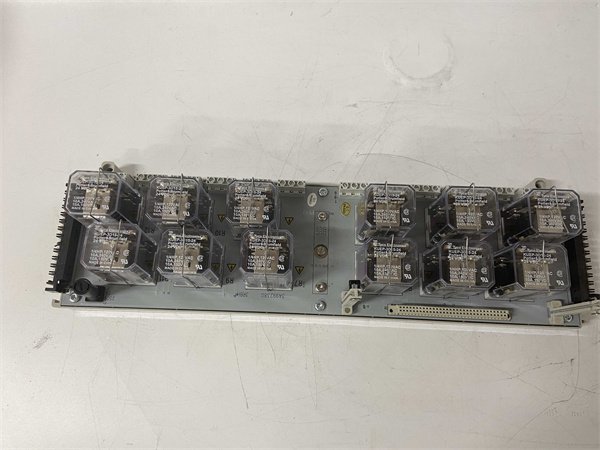

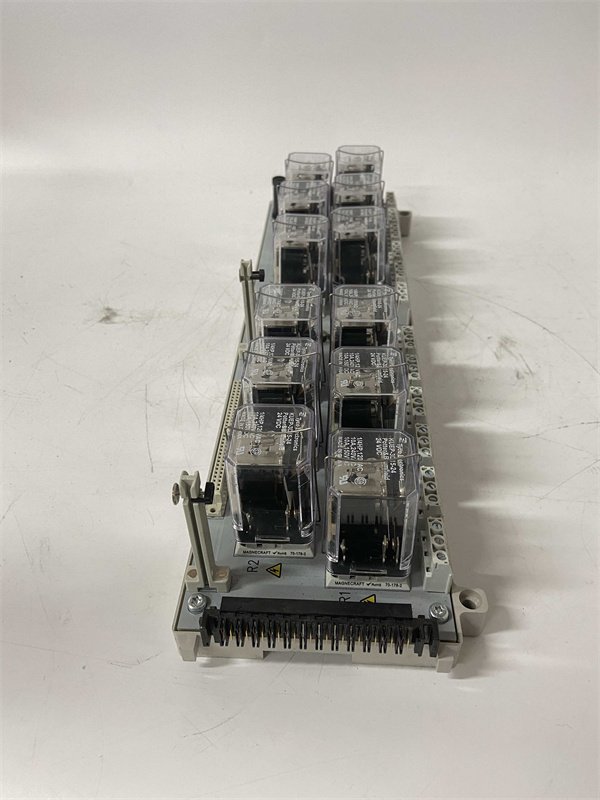

Emerson 1C31222G01 Relay Output Base

The Emerson 1C31222G01 is a high-reliability relay output base module designed for industrial automation systems, particularly Emerson’s Ovation™ distributed control system (DCS). This module provides a rugged interface between digital output signals from PLCs or controllers and high-power external devices, ensuring precise control in demanding environments such as power plants, oil refineries, and water treatment facilities.

Product Overview

The Emerson 1C31222G01 serves as a relay output base for Emerson’s Ovation™ system, supporting up to 16 channels of high-power relay outputs. It enables the conversion of low-voltage digital signals into high-current/voltage switching commands for actuators, motors, and solenoids. The module features a modular design, allowing easy integration with Ovation™ controllers and field devices. Its wide operating temperature range (-40°C to 70°C) and robust construction make it suitable for harsh industrial settings.

Technical Specifications

Key Advantages and Features

• High Power Handling: Supports up to 30 A per channel, ideal for controlling large motors and industrial actuators.
• Wide Temperature Range: Operates reliably in extreme conditions (-40°C to 70°C), outperforming many competitors.
• Modular Design: Hot-swappable relay modules allow maintenance without system downtime.
• Safety Mechanisms: Built-in overcurrent and short-circuit protection ensures device longevity.
• Easy Integration: Compatible with Emerson’s Ovation™ DCS and third-party systems via MODBUS RTU.
• Space-Saving: Compact form factor (30 cm × 20 cm × 25 cm) fits into dense control panels.

Applications and Use Cases

Industry Applications

• Power Generation: Controls boiler feedwater pumps and turbine valves in coal and gas-fired plants.
• Oil & Gas: Manages solenoid valves and compressors in offshore platforms and refineries.
• Water/Wastewater: Powers pumps and valves in treatment facilities, ensuring efficient fluid management.

Case Study

A European wastewater treatment plant reduced unplanned downtime by 30% after deploying the Emerson 1C31222G01 for its pump control system. The module’s high-current switching capability and redundant design prevented failures during peak demand, saving €120,000 annually in maintenance costs.

Competitor Comparison

The Emerson 1C31222G01 outperforms comparable solutions in:

• Temperature Range: Operates at -40°C to 70°C, whereas many competitors are limited to 0°C to 50°C.
• Power Handling: Supports 30 A per channel, exceeding standard 10–20 A outputs in similar modules.
• Integration: Native compatibility with Ovation™ reduces engineering effort compared to third-party alternatives.

Selection and Maintenance Tips

Selection Criteria

• Load Requirements: Ensure the 30 A per channel rating matches the connected devices’ power demands.
• Environmental Conditions: Verify the -40°C to 70°C temperature range suits the installation environment.
• System Compatibility: Confirm compatibility with Ovation™ controllers and field devices.

Maintenance Recommendations

• Regular Inspections: Check for loose connections and signs of overheating.
• Relay Replacement: Replace relays every 5–7 years or after 1 million operations.
• Firmware Updates: Keep the module’s firmware updated via Emerson’s AMS Device Manager.

Safety and Installation Guidelines

• Electrical Isolation: Install the module in a grounded enclosure to prevent electrical hazards.
• Cable Management: Route power cables away from signal cables to avoid EMI.
• Ventilation: Ensure adequate airflow around the module to prevent overheating.
• Shock/Vibration Protection: Use anti-vibration mounts in high-vibration environments.
