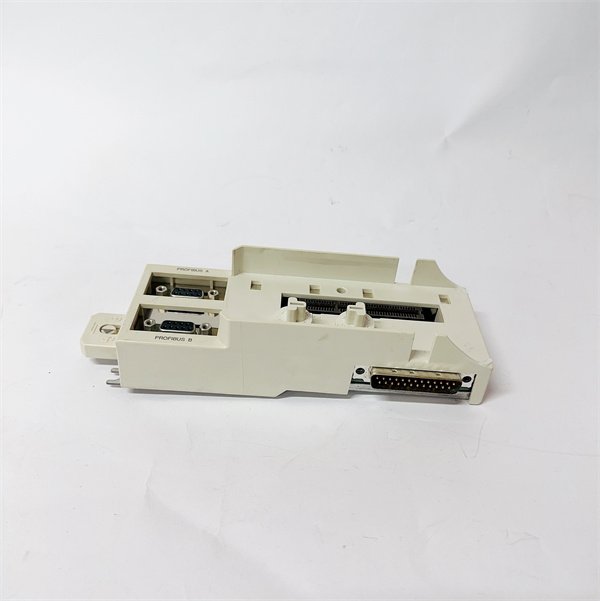

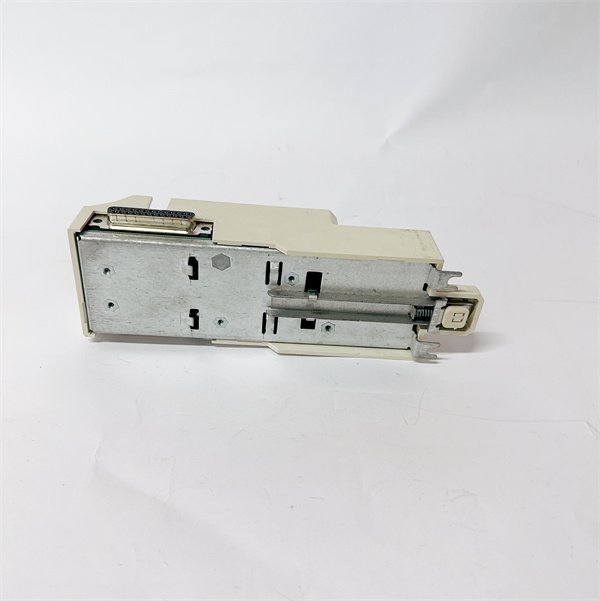

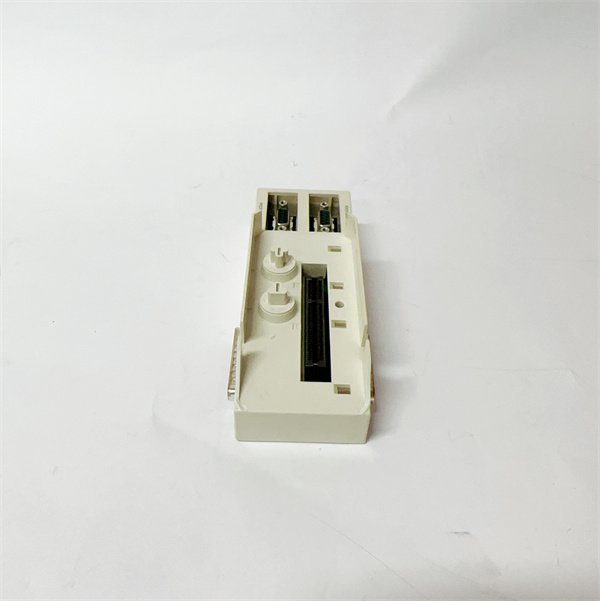

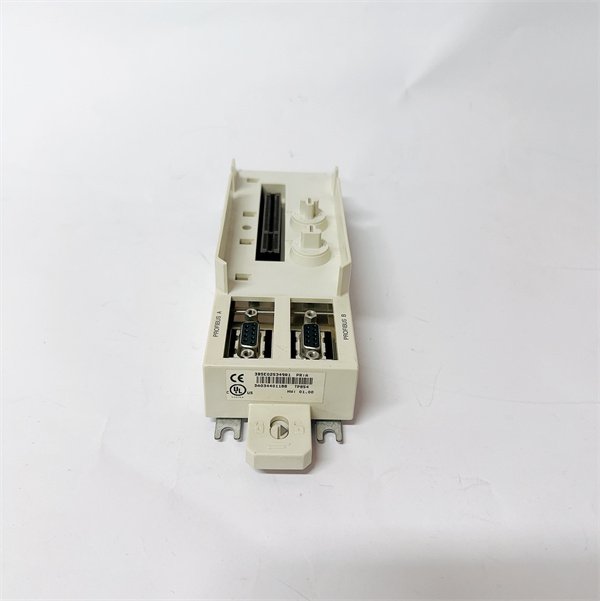

ABB TP854 3BSE025349R1 Base Unit

The ABB TP854 3BSE025349R1 is a base unit designed for the CI854, CI854A, and CI854B modules. It serves as a crucial component in automation systems, ensuring secure connections and reliable performance for these interface modules1. This baseplate is an integral part of ABB’s Advant 800xA system, facilitating efficient communication between different components in industrial control setups3. With its high – quality construction and advanced design, the TP854 3BSE025349R1 provides a stable platform for the CI854 – series modules, enabling precise control and monitoring in various industrial applications.

Product Parameters

• Model: 3BSE025349R1
• Brand: ABB
• Type: Base unit for DP – V1 interface CI854
• Dimensions1:
  • Net depth/length: 21.6 cm (216 mm)
  • Net height: 4.95 cm (49.5 mm)
  • Net width: 7.2 cm (72 mm)
• Weight1:
  • Net weight: 0.234 kg
• Operating voltage: 220 V
• Output frequency: 30 kHz

Advantages and Features

The ABB TP854 3BSE025349R1 offers several notable advantages. It ensures high reliability by providing a stable and secure connection for the CI854 – series modules, which is essential for the reliable operation of the overall automation system. Its compact design allows for easy integration into existing control cabinets, saving space and facilitating installation. Additionally, the base unit is constructed from high – quality materials, ensuring durability and a long service life, even in harsh industrial environments.

Application Areas and Case Studies

This base unit is widely used in various industries, including manufacturing, energy, and process control. It is suitable for applications that require reliable communication and control between field devices and the central control system.

Case Study: In a manufacturing plant, the ABB TP854 3BSE025349R1 was used to connect the CI854A communication interface modules with remote I/O devices and fieldbus instruments. This allowed for seamless communication and precise control of the production line, resulting in improved productivity and reduced downtime.

Competitor Comparison

Compared to similar base units in the market, the ABB TP854 3BSE025349R1 stands out for its excellent compatibility with ABB’s extensive range of automation products. It offers a more integrated and seamless solution, as it is specifically designed to work with the CI854 – series modules and the Advant 800xA system. While some competitors may offer basic functionality, the ABB base unit provides enhanced reliability and performance, thanks to its advanced design and high – quality construction.

Selection Recommendations

When selecting the ABB TP854 3BSE025349R1, consider the following factors:

• Compatibility: Ensure that it is compatible with the CI854, CI854A, or CI854B modules you are using.
• Installation space: Check if the dimensions of the base unit fit into your control cabinet or installation area.
• System requirements: Consider the power and communication requirements of your overall automation system to ensure that the base unit can meet these needs.

Precautions

• Installation: Follow the installation instructions provided by ABB carefully to ensure proper connection and grounding.
• Electromagnetic interference: Keep the base unit away from strong electromagnetic fields to prevent interference with its operation.
• Maintenance: Regularly inspect the base unit for any signs of damage or wear and replace it if necessary.
