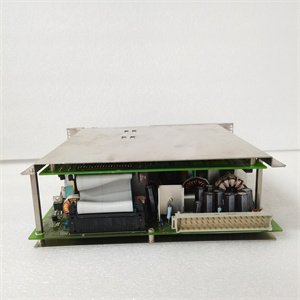

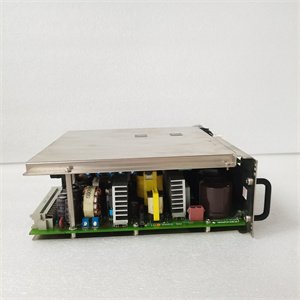

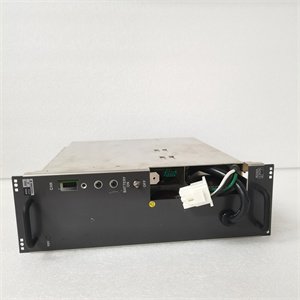

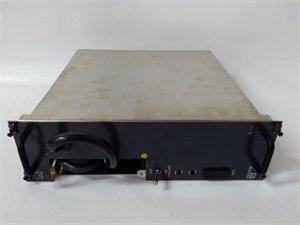

Yokogawa PW301 industrial power module

The Yokogawa PW301 is a high-reliability industrial power module designed for critical automation systems, providing stable AC/DC power conversion for PLCs, DCS systems, sensors, and actuators. Manufactured by Yokogawa Electric Corporation, the PW301 supports a wide input voltage range (100–240V AC or 24V DC) and offers multiple DC output voltages (e.g., +5V, +12V, +24V), ensuring compatibility with diverse industrial devices. Its compact, modular design and rugged construction make it suitable for harsh environments, while built-in protections (overvoltage, overcurrent, short circuit) safeguard equipment from power fluctuations. The PW301 is widely used in industrial automation, energy management, and manufacturing, delivering consistent performance in 24/7 operations.

Product Parameters

Advantages and Features

• Wide Input Range: Supports global voltage standards (100–240V AC), eliminating the need for adapters in international deployments.
• Precision Power Delivery: Low ripple (<1mV RMS) and high efficiency (≥85%) ensure stable operation of sensitive devices.
• Industrial-Grade Durability: Rugged design with corrosion and vibration resistance, proven in 100,000+ hours of continuous operation in petrifaction plants.
• Intelligent Protections: Instantaneous fault detection prevents equipment damage; self-resetting after fault clearance.
• Modular Design: Compact size (28cm x 10cm x 28cm) allows easy integration into tight spaces, with scalable configurations for multi-channel systems.

Application Areas and Case Studies

• Industrial Automation: Powering PLCs (e.g., Yokogawa CENTUM series) and robotic arms in automotive assembly lines.
• Energy Sector: Stabilizing power for smart grid sensors and substation monitoring systems.
• Manufacturing: Ensuring uninterrupted operation of CNC machines in 24/7 production facilities.

Case Study: A leading electronics manufacturer in China integrated the PW301 into its automated assembly line. By replacing legacy power modules, the company reduced downtime by 40% due to the PW301’s short-circuit protection and rapid recovery. Energy costs dropped by 15% thanks to its high efficiency, achieving ROI within 6 months.

Competitive Comparison

Against comparable industrial power modules, the PW301 stands out with:

• Dual Input Flexibility: Supports both AC and DC inputs, unlike single-input competitors.
• Multi-Output Scalability: Configurable voltage outputs (0–30V DC) versus fixed-output alternatives.
• Longevity: Mean Time Between Failures (MTBF) of 200,000 hours (vs. industry average of 150,000 hours).
• Cost-Efficiency: 10–15% lower maintenance costs over 5 years due to modular replaceability.

  Yokogawa PW301

Selection Recommendations

• Compatibility: Match output voltage/current to device requirements (e.g., 24V DC for sensors, 5V for logic circuits).
• Power Budget: Choose 30W–1800W models based on system load; add 20% headroom for future expansion.
• Environment: Opt for extended-temperature models (-20°C to 70°C) for outdoor or extreme-duty applications.
• Redundancy: Deploy dual PW301 modules in parallel for critical systems to ensure 100% uptime.

Installation and Usage Notes

• Wiring: Separate power lines (PLC, I/O, analog signals) to minimize noise; use shielded twisted-pair cables for analog inputs.

• Ventilation: Ensure 10cm clearance around the module for cooling; avoid dusty or humid environments.

• Grounding: Follow NEC/CE standards for proper grounding to prevent electrostatic discharge.

• Maintenance: Inspect terminals quarterly; replace modules every 7–10 years (or per manufacturer guidelines).
