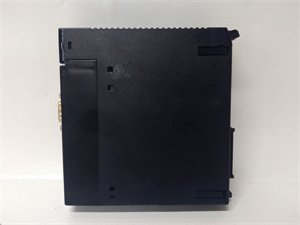

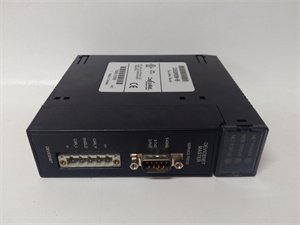

GE Fanuc IC693DNM200 Digital Input Module

The GE Fanuc IC693DNM200 is a high-reliability digital input module designed for the VersaMax Micro PLC system, a versatile automation platform by GE Fanuc. As part of the VersaMax I/O family, the IC693DNM200 provides 16 isolated digital input channels, supporting 24V DC signals for industrial machinery, process control, and factory automation. It features opto-isolation (2.5kV RMS) to protect against voltage spikes, reverse-polarity protection, and LED indicators for real-time status monitoring. The module is compact (1.5” x 3.5” x 2.5”), DIN-rail mountable, and compatible with GE Fanuc’s VersaMax Micro and I/O Expansion systems, ensuring seamless integration into legacy and modern control setups.

Product Parameters

Advantages and Characteristics

1. Robust Isolation and Protection:

   • 2.5kV RMS opto-isolation and transient voltage suppression protect against industrial noise and surges.
   • Reverse-polarity protection prevents damage from incorrect wiring.

2. Flexible Input Configuration:

   • Supports both sinking (NPN) and sourcing (PNP) inputs, adapting to diverse sensor types (proximity switches, pushbuttons, etc.).

3. Space-Saving Design:

   • Compact size (16 channels in a single module) reduces panel space by 30% compared to legacy 8-channel modules.

4. Easy Maintenance:

   • Removable terminal blocks (screw-type) simplify field wiring, while LED indicators enable quick fault diagnosis.

5. Longevity and Compliance:

   • Rated for 500,000+ operations (mechanical life), compliant with CE, UL, and cUL standards.

Application Fields and Cases

• Industry: Manufacturing (conveyor systems), energy (pump control), water treatment (valve monitoring), automotive (assembly lines).
• Use Case:

  A food processing plant upgraded its packaging line with IC693DNM200 modules. The 16-channel input capability reduced I/O rack space by 50%, while opto-isolation eliminated false signals from motor noise, improving uptime by 15%.

Competitor Comparison

Compared to similar digital input modules:

• Superior Isolation: 2.5kV RMS (vs. typical 1.5kV RMS in competing models).
• Dual Voltage Support: 12-30V DC range (wider than many 24V-only alternatives).
• Native System Integration: Engineered for GE Fanuc VersaMax platforms, ensuring plug-and-play compatibility without adapters.

Selection Suggestions

1. System Requirements:

   • Confirm PLC compatibility (VersaMax Micro or I/O Expansion).
   • Match voltage (24V DC) and input type (sinking/sourcing) with sensors.

2. Channel Density:

   • 16 channels ideal for high-density applications; consider 8-channel modules (e.g., IC693DNM100) for low-density needs.

3. Mounting Constraints:

   • DIN-rail mount preferred for modular setups; panel-mount for space-constrained environments.

4. Budget vs. Performance:

   • Refurbished units (2-year warranty) offer 40% cost savings while maintaining OEM specifications.

Precautions

1. Wiring:

   • Use AWG 22-16 cables; torque terminal screws to 4-6 in-lbs to avoid loose connections.
   • Separate power and signal wiring to minimize EMI.

2. ESD Protection:

   • Handle with antistatic gloves; ground the module before installation.

3. Environmental Limits:

   • Operate at 0–55°C (non-condensing); avoid exposure to corrosive gases.

4. Firmware Update:

   • Ensure VersaMax Micro PLC firmware (v3.0+) supports the IC693DNM200 for advanced diagnostics.
