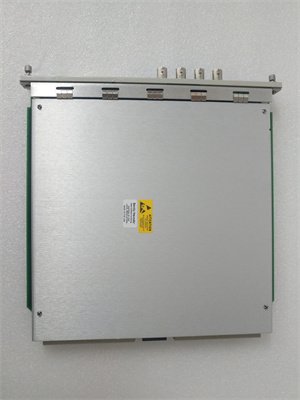

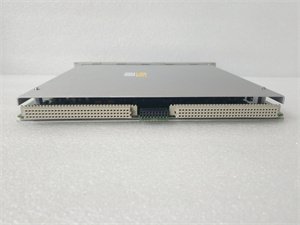

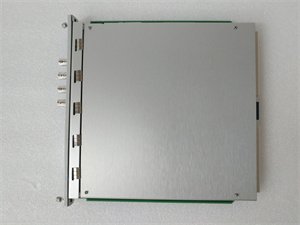

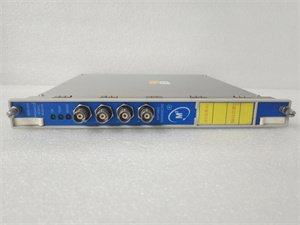

Bently Nevada 176449-02 Machinery Protection System Vibration Monitor

The 176449-02 from Bently Nevada is the standard production variant of the 3500/42M vibration monitoring series, serving as the core measurement component in 3500 Machinery Protection Systems. This 2-slot module is specifically engineered to continuously monitor critical rotating machinery parameters—including radial vibration, axial position, and differential expansion—providing the essential data foundation for both real-time protection and predictive maintenance strategies. As the most widely deployed variant of the 3500/42M series, 176449-02 acts as the critical interface between sensor inputs and protection system logic in industrial machinery monitoring applications.

Bently Nevada’s 176449-02 module converts raw signals from proximity probes and vibration sensors (connected via 136711-01 cables) into actionable machinery health metrics. Installed in 125744-02 racks and configured through 136180-01 modules, it delivers dual functionality: triggering protective actions during abnormal conditions while supplying continuous measurement data for diagnostic analysis. This combination makes it indispensable for preventing machinery damage through timely interventions and enabling proactive maintenance through trend analysis across power generation, oil and gas, and manufacturing sectors.

Detailed parameter table

Core advantages and technical highlights

Multi-parameter monitoring capability: 176449-02 supports multiple critical machinery measurements across its four channels, eliminating the need for specialized single-function modules. This versatility allows simultaneous monitoring of radial vibration (indicating bearing condition), axial position (assessing thrust bearing health), and differential expansion (tracking rotor-to-stator clearance), providing a comprehensive view of machinery health in a single module.

High-precision measurement: Equipped with advanced signal conditioning and 24-bit analog-to-digital conversion, 176449-02 delivers ±0.2% full-scale accuracy across its 0.1 Hz to 10 kHz frequency range. This precision ensures detection of subtle vibration changes that may indicate early-stage faults, enabling maintenance teams to address issues before they escalate into catastrophic failures.

Configurable protection logic: Each channel features independently programmable dual alarm levels (Alert and Danger) with adjustable time delays and latching behavior. This flexibility allows implementation of customized protection strategies tailored to specific machinery types and operating conditions, balancing protection sensitivity with operational availability to minimize unnecessary shutdowns.

Seamless transient integration: The module synchronizes with 133388-01 transient monitors to provide triggered high-speed data capture during alarm conditions. By sharing measurement data with transient systems, it ensures pre-alarm and alarm condition data is preserved for detailed post-event analysis, supporting both protection system validation and root cause determination.

Typical application scenarios

In power generation facilities, 176449-02 modules form the backbone of turbine and generator protection systems. Installed in 125744-02 racks, they monitor radial vibration on turbine bearings, axial thrust position, and rotor differential expansion. The module continuously analyzes signals from proximity probes connected via 136711-01 cables, activating alarms or shutdown sequences when measurements exceed predefined thresholds. Simultaneously, it provides continuous data to 133388-01 transient monitors for detailed analysis during startup/shutdown sequences and load changes.

Oil and gas processing plants utilize 176449-02 to monitor critical rotating equipment such as centrifugal compressors and pump trains. The module tracks bearing vibration, shaft position, and casing expansion, integrating with 125712-01 I/O modules to combine vibration data with process parameters like discharge pressure and flow rate. This integration enables operators to distinguish between genuine mechanical issues and process-induced vibrations, reducing false alarms while ensuring timely response to critical conditions.

Manufacturing facilities deploy 176449-02 on production-critical rotating machinery including motors, gearboxes, and fans. The module provides continuous protection against catastrophic failures while feeding vibration trends to plant management systems via 140734-01 gateways. Maintenance teams use the historical data to schedule predictive maintenance activities, while the module’s alarm outputs integrate with plant control systems to prevent equipment damage during abnormal operating conditions.

Installation, commissioning and maintenance instructions

Installation preparation: Before installing 176449-02, verify compatibility with the target 125744-02 rack firmware version and ensure two adjacent slots are available. Confirm the system power supply can accommodate the 10 W maximum load. Gather required tools including torque screwdriver, vibration calibrator, and configuration laptop with 3500 software. Inspect the module for shipping damage, particularly checking input connectors and backplane pins.

Maintenance suggestions: Include 176449-02 in quarterly system inspections, verifying status LEDs indicate normal operation and checking communication links with configuration modules. Perform annual calibration using a certified vibration calibrator to maintain measurement accuracy. During scheduled maintenance, verify alarm setpoints and logic through 136180-01 configuration interfaces. Clean input connectors annually with approved electronic contact cleaner. Update firmware during major system upgrades to ensure compatibility with 133388-01 transient monitors and other system components.
