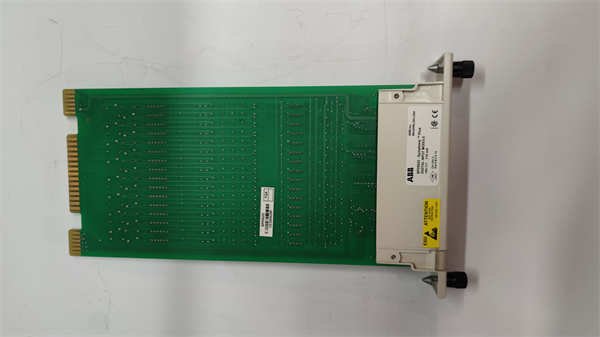

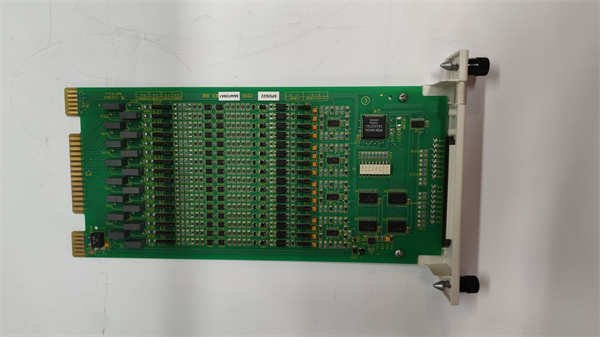

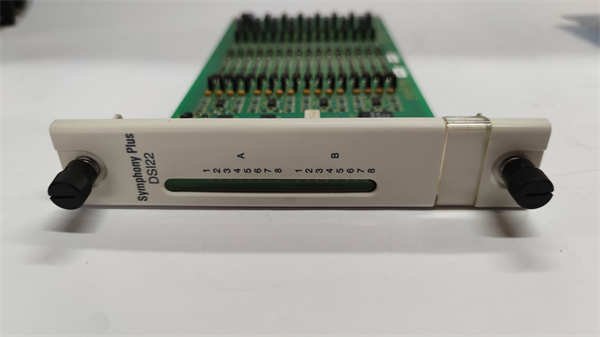

ABB SPDSI22 Digital Input Module

The ABB SPDSI22 is a safety-certified digital input module designed for ABB’s Symphony® Plus and 800xA safety instrumented systems (SIS). Engineered for critical applications requiring functional safety compliance, this 16-channel module interfaces with emergency stop buttons, safety interlocks, and presence detectors. It converts field contact status into SIL 2-certified signals for safety controllers while providing advanced diagnostics to detect wiring faults.

As part of ABB’s S+ I/O family, the ABB SPDSI22 implements dual-channel processing with discrepancy time monitoring for each input pair. This architecture ensures reliable detection of dangerous failures in safety chains – from stuck relays to welded contacts. The module integrates seamlessly with safety controllers like ABB AC800M HI, forming the frontline defense for personnel protection in hazardous processes. Its ≤1 ms response time guarantees timely reaction to emergency signals, making the ABB SPDSI22 indispensable for machine safety and process shutdown systems.

Detailed Parameter Table

Core Advantages and Technical Highlights

The ABB SPDSI22 sets new standards in safety integrity and diagnostic intelligence:

Safety by Architecture: Dual-redundant input circuits per channel group validate signal consistency. Configurable discrepancy time (0-500 ms) detects contact bounce or asynchronous operation – critical for E-stop validation per ISO 13850. SIL 2 certification covers both random and systematic failures.

Ultra-Fast Response: With ≤1 ms reaction time (filter disabled), the ABB SPDSI22 outperforms standard DI modules by 10x. Time-stamped inputs enable precise event sequencing for forensic analysis after safety incidents.

Comprehensive Diagnostics: Continuously monitors for open circuits (field wire break), short circuits (<3 kΩ load), and cross-wiring (cross-channel faults). Faults trigger immediate controller alarms and LED indicators per channel (green=healthy, red=fault).

Flexible Sourcing/Sinking: Software-configurable per channel group (8 channels) for sourcing (PNP) or sinking (NPN) field devices. Wide voltage tolerance (10-30 VDC) accommodates unstable plant power.

Cyber-Secure Design: Hardware-enforced I/O partitioning prevents unauthorized write access. Firmware signatures validated at boot-up per IEC 62443-4-2. Audit logs track configuration changes.

Extreme Environment Ready: -40°C cold-start capability with 95% non-condensing humidity tolerance. Conformal coating protects against corrosive atmospheres in pulp/paper mills.

Typical Application Scenarios

The ABB SPDSI22 delivers fail-safe monitoring in high-risk environments:

Robotic Workcells: Monitors safety mats, light curtains, and E-stop stations for ISO 10218 compliance. Cross-wire detection prevents bypass attempts.

Press Line Safety: Interfaces two-hand control stations and guard locks. ≤1 ms response halts 800-ton presses before human injury occurs.

Chemical Plant ESD: Processes emergency shutdown commands from field pushbuttons. SIL 2 certification meets IEC 61511 requirements for valve isolation.

Turbine Overspeed Protection: Validates vibration switch contacts. Discrepancy timing ignores transient spikes while detecting contact welding.

Pharmaceutical Isolators: Monitors door interlocks for containment integrity. Diagnostic LEDs enable quick fault localization in cleanrooms.

Installation Commissioning and Maintenance Instructions

Installation Preparation: Mount ABB SPDSI22 in HTTA-series rack with safety-rated backplane (e.g., HTTA201). Segregate safety/non-safety wiring per IEC 60204-1. Use shielded cables (≥0.5 mm²) with separate conduits. Verify external test pulse source ≤60 VDC for diagnostics.

Maintenance Suggestions: Quarterly, validate response time using calibrated pulse generator. Annually, perform forced fault tests via Control Builder MT. Replace if STATUS LED flashes red. Verify discrepancy time settings after maintenance. Always use ABB-approved 24VDC power supplies to ensure diagnostic accuracy. Store configuration backups on encrypted media.

Service and Guarantee Commitment

ABB provides a 36-month warranty for the ABB SPDSI22, covering safety function integrity per IEC 61508. SIL verification reports and FMEDA data available upon request. Cybersecurity patches released quarterly via ABB Ability™ portal. Global safety specialists offer on-site SIL validation audits and TÜV-certified training. Spare parts guaranteed for 15 years post-discontinuation. 24/7 critical failure response includes 8-hour component replacement for safety system customers under ABB Service Agreement.
