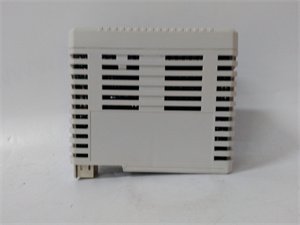

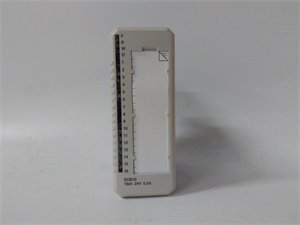

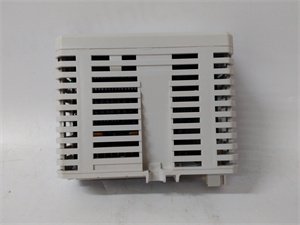

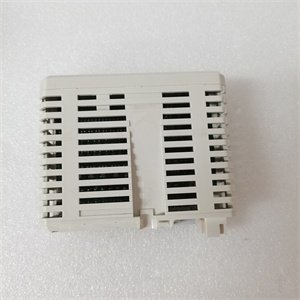

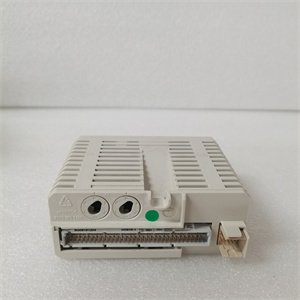

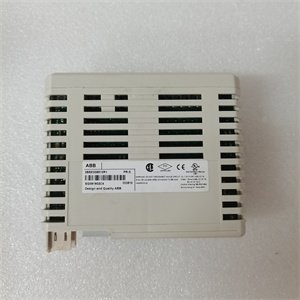

ABB DO810 3BSE008510R1 Digital output module

The ABB D0810 3BSE008510R1 is a robust digital output module designed for industrial automation systems, part of ABB’s S800 I/O family renowned for seamless integration with AC 800M controllers. This module serves as a critical interface between control systems and external devices, converting digital control signals into physical actions by switching power to actuators, valves, alarms, and other field equipment.

ABB D0810 3BSE008510R1 features 8 isolated relay outputs, each with changeover contacts (1 normally open + 1 normally closed), providing versatile control options for diverse industrial applications. Its ability to handle both AC and DC loads up to 5 A makes it suitable for switching motors, solenoids, indicator lights, and heating elements. Whether deployed in manufacturing, process control, or infrastructure projects, ABB D0810 3BSE008510R1 ensures reliable signal transmission, enhancing system responsiveness and operational safety.

Detailed parameter table

Core advantages and technical highlights

Enhanced isolation protection: ABB D0810 3BSE008510R1 incorporates 2.5 kV AC isolation between channels and from channels to the backplane, eliminating cross-talk and protecting sensitive control systems from voltage spikes, ground loops, and electromagnetic interference (EMI). This isolation is critical in harsh industrial environments with high electrical noise, such as near large motors or welding equipment.

Flexible load compatibility: Unlike solid-state output modules limited to specific voltage types, ABB D0810 3BSE008510R1’s relay contacts support both AC (up to 250 V) and DC (up to 30 V) loads, making it compatible with diverse field devices. This versatility eliminates the need for multiple module types, reducing inventory costs and simplifying system design for mixed-load applications.

Robust contact design: The module’s relays feature silver-alloy contacts rated for 5 A resistive load, ensuring a mechanical lifespan of up to 10 million operations and electrical lifespan of up to 100,000 operations at full load. This durability reduces maintenance frequency and minimizes downtime in high-cycle applications, such as packaging lines or material handling systems.

Seamless system integration: ABB D0810 3BSE008510R1 is engineered for plug-and-play compatibility with ABB’s AC 800M controllers and S800 I/O racks, featuring standardized connectors that simplify installation. The module is automatically recognized by ABB’s Control Builder M software, reducing configuration time during commissioning and ensuring consistent system performance.

Typical application scenarios

In automotive assembly plants, ABB D0810 3BSE008510R1 controls solenoid valves in robotic welding stations, switching compressed air to actuate clamping mechanisms. Its changeover contacts allow simultaneous control of the valve and monitoring of its status via the normally closed contact, enabling immediate fault detection if the valve fails to operate. The module’s isolation protects the robot controller from electrical noise generated by welding transformers.

Within water treatment facilities, ABB D0810 3BSE008510R1 switches submersible pump motors and chemical dosing pumps, regulating water flow and reagent injection. Its ability to handle 5 A loads ensures compatibility with small pumps, while its wide operating temperature range (-40°C to +70°C) allows installation in outdoor pump stations or indoor control rooms. The relay contacts’ resistance to moisture-related corrosion ensures reliable operation in humid environments.

In food and beverage processing, ABB D0810 3BSE008510R1 controls conveyor belt motors, heating elements, and alarm lights in packaging lines. Its relay outputs safely switch 230 V AC heating elements for shrink wrapping, while the normally closed contacts integrate with emergency stop circuits to disconnect power during safety incidents. The module’s robust design withstands temperature fluctuations near refrigeration units and washdown areas.

Installation, commissioning and maintenance instructions

Installation preparation: Before installing ABB D0810 3BSE008510R1, ensure the DIN rail or S800 I/O rack is securely mounted in a dust-free enclosure with ambient temperature between -40°C and +70°C. Required tools include a torque wrench (set to 0.5 Nm for terminal connections), screwdrivers, and wire strippers. Use twisted-pair cables for control signals to minimize EMI, and route power wiring separately from signal wiring. Verify that the 24 V DC power supply is properly grounded and protected by a 1A fuse. Allow 20 mm clearance around the module for ventilation.

Maintenance suggestions: For ABB D0810 3BSE008510R1, perform quarterly visual inspections to check for loose connections, damaged terminals, or signs of overheating (discoloration). Clean dust from ventilation slots using compressed air (max 5 bar) annually. Test relay contacts periodically using a multimeter—high resistance or intermittent continuity indicates worn contacts that require module replacement. Document relay operation cycles to predict maintenance needs, as electrical lifespan decreases with higher loads. When replacing ABB D0810 3BSE008510R1, use ABB’s configuration software to transfer channel settings, ensuring consistency with the rest of the system.
