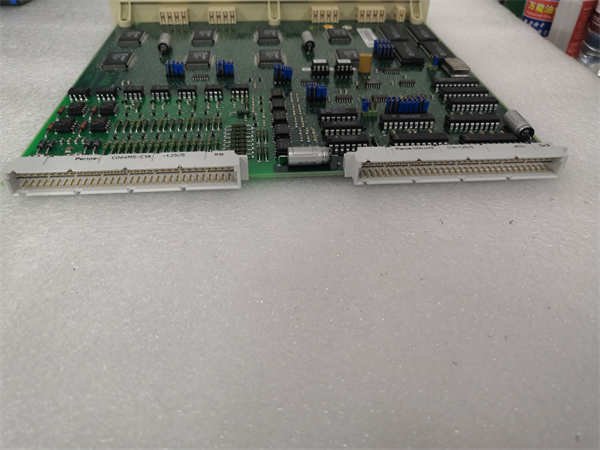

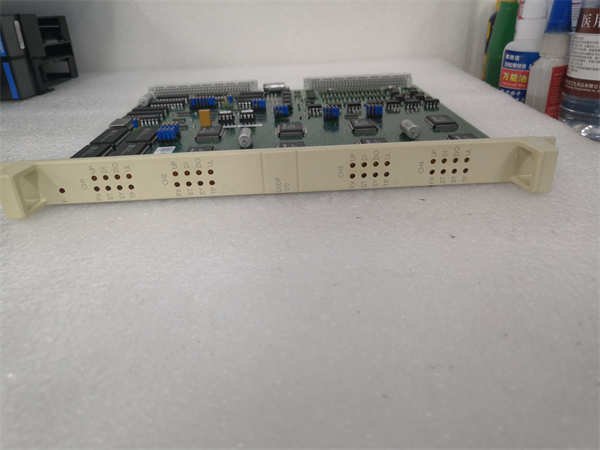

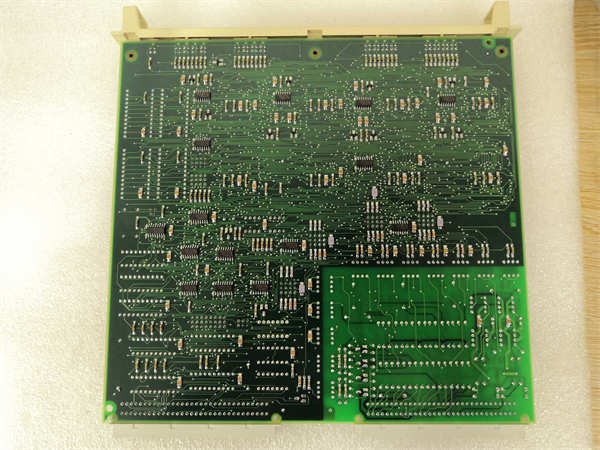

ABB DSDP170 pulse counting board

The ABB DSDP170 (57160001-ADF) is a high-performance pulse counting board designed for industrial automation systems, specializing in precise positioning, speed, and frequency measurements. As part of ABB’s modular automation portfolio, the DSDP170 supports up to four independent high-speed pulse counting channels (2.5 MHz max frequency), enabling real-time monitoring of rotating machinery, conveyor systems, and linear actuators. Its advanced features include direction detection (forward/reverse), software-selectable resolution (1x/2x/4x/8x), and wide input voltage compatibility (5–24 VDC). The DSDP170 integrates on-board diagnostics and calibration tools, ensuring reliability in harsh industrial environments while simplifying maintenance. Ideal for applications requiring accurate motion control, the board is widely used in manufacturing, energy, and transportation sectors.

Product Parameters

Advantages and Features

• High-Speed Performance: Supports 2.5 MHz pulse frequency (25x higher than standard 100 kHz boards), enabling precise measurements in high-speed machinery.
• Multi-Function Design: Simultaneous position, speed, and frequency tracking across four channels, reducing system complexity.
• Flexible Configuration: Adjustable resolution modes and wide voltage input for compatibility with diverse sensors (encoders, tachometers).
• Reliability: Built-in diagnostics and isolation circuitry protect against noise and voltage spikes, ensuring stable operation in noisy environments.
• Compact & Lightweight: 0.38 kg design for easy installation in space-constrained systems.

Application Areas and Use Cases

Industries: Manufacturing (assembly lines), energy (turbine monitoring), transportation (conveyor systems), and machinery (robotics).

Scenarios:

• Positioning Systems: Tracking linear actuator movement in automotive assembly lines.
• Speed Control: Monitoring conveyor belt speed in logistics centers.
• Use Case: A steel mill reduced downtime by 15% using the DSDP170 to monitor four roller speeds in a rolling mill, enabling predictive maintenance through real-time speed deviation alerts.

Competitive Comparison

Compared to similar pulse counting boards:

• Higher Frequency Handling: 2.5 MHz vs. standard 1–2 MHz in competing products，suitable for high-speed applications.
• Integrated Diagnostics: On-board calibration and error detection eliminate the need for external modules.
• Space Efficiency: Compact design (328.5 × 238.5 mm) vs. bulkier alternatives, ideal for modular systems.

Selection Recommendations

• Compatibility: Verify sensor output (voltage/current) and pulse frequency (≤2.5 MHz) match the DSDP170 specifications.
• Environment: Choose IP-rated enclosures (optional) for dusty/washdown environments.
• Scalability: Pair with ABB’s modular I/O systems (e.g., AC500 PLC) for expandable automation setups.
• Cost Efficiency: Leverage multi-channel capability to reduce hardware costs vs. single-channel solutions.

Precautions

• Installation: Follow ABB’s wiring guidelines to avoid short circuits; ensure proper grounding for noise reduction.
• Calibration: Perform annual calibration (or enable auto-calibration) for sustained accuracy.
• Maintenance: Inspect connectors for wear; clean dust from vents quarterly.
• Safety: Disconnect power before module replacement; adhere to local electrical codes (e.g., NEC, IEC).
