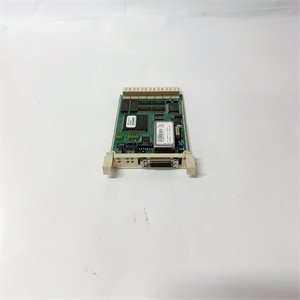

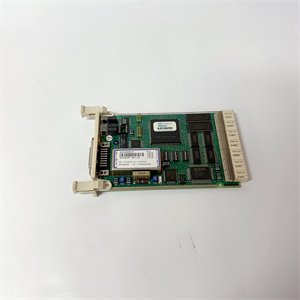

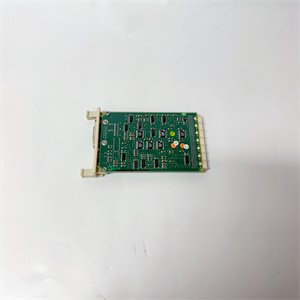

ABB DAPI100 3AST000929R109 High-density digital input module

The DAPI100 3AST000929R109 is a high-performance digital input module from ABB, designed to convert discrete electrical signals from field devices into digital data for industrial control systems. As a key component in ABB’s I/O portfolio, this module serves as a critical interface between sensors (such as limit switches, proximity detectors, and emergency stop buttons) and central controllers like the PCD235A101 3BHE032025R0101 PLC, ensuring reliable monitoring of on/off states in automation processes.

Unlike basic digital input modules, the DAPI100 combines high channel density with robust isolation and fast response times, making it ideal for applications where real-time event detection is critical—from automotive assembly lines to power plant control systems. Whether deployed in harsh industrial environments or controlled facilities, this module delivers consistent performance, enabling precise process control and safety monitoring.

Detailed parameter table

Core advantages and technical highlights

High-density channel configuration: With 16 isolated channels in a compact form factor, the DAPI100 maximizes I/O density, reducing the number of modules needed in control cabinets. In a packaging plant, this allows monitoring of 16 conveyor belt sensors (e.g., jam detectors, position switches) using a single module, saving 40% of backplane space compared to 8-channel alternatives. Each channel is individually configurable for sinking or sourcing inputs, eliminating the need for hardware modifications when connecting diverse sensor types.

Ultra-fast response times: The module offers configurable response times as low as 0.1 ms in fast mode, ensuring rapid detection of critical events like emergency stops or machine overspeed conditions. In a robotic welding cell, this speed allows the DAPI100 to signal a collision detection sensor to the KUC321AE HIEE300698R1 robot controller within 50 µs, triggering an immediate stop to prevent equipment damage. Standard mode (1 ms response) balances speed and noise immunity for general-purpose applications like part presence detection.

Robust isolation and noise immunity: Equipped with 2.5 kV AC channel-to-channel isolation and 5 kV AC isolation from the backplane, the DAPI100 effectively rejects electromagnetic interference (EMI) and ground loops common in industrial environments. In a steel mill, this isolation ensures reliable detection of limit switch signals near high-voltage rolling mills, preventing false triggers that could disrupt production. The module’s surge protection (2 kV per IEC 61000-4-5) further safeguards against voltage transients from lightning or motor switching.

Seamless system integration: Designed for compatibility with ABB’s AC800M/S800 backplanes, the DAPI100 integrates seamlessly with power supplies like the PPE091A101 3BHE044481R0101 and communication modules such as the GCC960C103. It supports hot swapping, allowing replacement without system shutdown—a critical feature in continuous processes like chemical production. Diagnostic data (including channel faults, overvoltage events, and open circuits) is transmitted to the controller, enabling predictive maintenance and reducing downtime.

Wide operational flexibility: The module’s 15-30 V DC input range accommodates varying field voltages, making it compatible with both 24 V DC standard sensors and 18 V DC specialized devices. In a solar panel manufacturing facility, this flexibility allows the DAPI100 to monitor both high-precision position sensors (18 V) and rugged environmental switches (24 V) using a single module, simplifying inventory and reducing spare parts costs.

Typical application scenarios

In an automotive paint shop, the DAPI100 3AST000929R109 monitors 16 critical safety interlocks, including door sensors, light curtains, and pressure switches. Its fast response mode (0.1 ms) ensures the PCD235A101 PLC receives emergency stop signals within 100 µs, halting robot movement (controlled by KUC321AE units) to prevent accidents. The module’s isolation protects against EMI from paint sprayers, ensuring reliable operation in this electrically noisy environment.

In a water treatment plant, the module processes signals from 16 level switches across different tanks, detecting high/low water levels and pump statuses. Its wide operating temperature range (-40°C to 70°C) allows installation in unheated pump rooms, while surge protection safeguards against voltage spikes from motor starters. Diagnostic data from the DAPI100 is transmitted via the 500CIM05 1MRB150077R1/B communication module to the SCADA system, alerting operators to faulty sensors before they cause process disruptions.

Installation, commissioning and maintenance instructions

Installation preparation: Mount the DAPI100 3AST000929R109 into a compatible S800 backplane using the front-panel screw, torquing to 0.5 Nm. Ensure at least 50mm clearance for ventilation. Connect field sensors using 0.5-1 mm² shielded twisted-pair cable, with inputs wired to switch contacts or sensor outputs. Ground all shields at the module end. For sinking inputs, connect the common terminal to 0 V DC; for sourcing inputs, connect to 24 V DC. Required tools include a torque screwdriver, wire strippers, and a multimeter. Power off the backplane during installation.

Commissioning steps: Use ABB’s Automation Builder software to configure each channel’s response time (standard/fast) and input type (sinking/sourcing). Map digital inputs to the controller’s address space and verify signal detection by activating each sensor manually. Test fast mode response using an oscilloscope, ensuring transitions are detected within 0.1 ms. Validate isolation integrity with a megohmmeter (minimum 100 MΩ at 500 V DC between channels). Save configurations to non-volatile memory and confirm data transmission to the PLC.

Maintenance suggestions: Inspect quarterly for loose connections, dust accumulation, and LED status (power: green, channel active: yellow, fault: red). Clean ventilation slots with compressed air. Test input responsiveness semi-annually by simulating signals with a signal generator. Check isolation resistance yearly to ensure it meets specifications. If channels fail to detect signals, verify sensor wiring and power (supplied by PPE091A101) before replacing the module with an ABB-certified unit.
