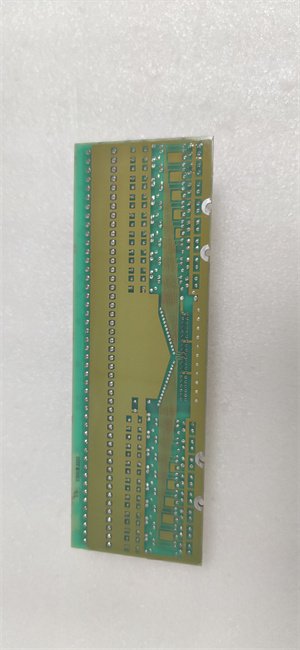

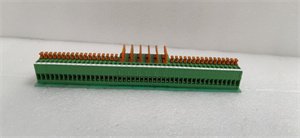

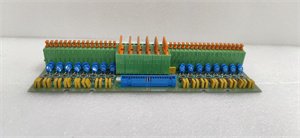

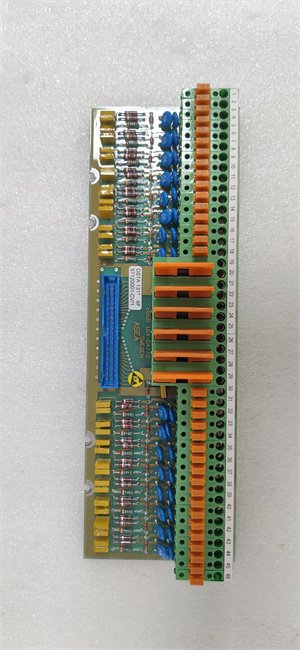

ABB DSTA131 Industrial Automation Module

The ABB DSTA131 is a high-performance industrial automation module designed for connecting analog input (AI) boards to ABB’s S100 series controllers. It is part of the ABB Advant OCS system and offers a reliable and efficient solution for industrial control and data acquisition. The module supports both analog and digital I/O channels, making it suitable for a wide range of applications, including process control, robotics, and building automation. Its compact design and modular construction ensure easy installation and maintenance.

Detailed Parameter Table

Core Advantages and Technical Highlights

High Precision and Reliability: The DSTA131 provides high-precision signal conversion with ±0.1% accuracy. It is designed for harsh industrial environments, ensuring long-term reliability and minimal downtime.

Versatile Communication Capabilities: The module supports multiple communication protocols, including Ethernet and RS-485, enabling seamless integration with various control systems.

Flexible Configuration: With 32 analog I/O channels and 16 digital I/O channels, the DSTA131 offers extensive connectivity options for diverse industrial applications.

Compact Design: Measuring 110 mm x 60 mm x 30 mm and weighing only 0.4 kg, the DSTA131 is easy to install in space-constrained control cabinets.

Advanced Diagnostics: The module includes diagnostic features and multi-level password protection to ensure secure operation and quick troubleshooting.

Typical Application Scenarios

The DSTA131 is widely used in various industrial sectors, including manufacturing, robotics, process control, and building automation. It is ideal for applications requiring high-precision control and data acquisition, such as:

• Process control systems in chemical and petrochemical plants

• Robotics and automation in automotive and electronics manufacturing

• Building automation systems for HVAC, lighting, and security control

• Data acquisition in research and development facilities

Installation Commissioning, and Maintenance Instructions

Installation Preparation: Before installing the DSTA131, ensure the designated location meets the specified temperature and humidity requirements. Mount the module securely on a standard DIN rail using the provided hardware. Use shielded cables for connections to minimize electrical interference.

Maintenance Suggestions: Perform regular visual inspections to check for dust accumulation, wear, or damage. Clean ventilation openings to ensure proper airflow and prevent overheating. Monitor diagnostic indicators for any abnormal conditions or warning messages. In harsh environments, consider implementing a scheduled maintenance program to minimize downtime.

Service and Guarantee Commitment

The DSTA131 is backed by ABB’s comprehensive support and quality assurance. The module comes with a warranty that ensures protection against manufacturing defects. ABB’s global technical support network offers 24/7 assistance with guaranteed response times, ensuring minimal downtime and maximum efficiency. Each DSTA131 undergoes extensive testing to ensure reliability in industrial environments, providing customers with confidence in the product’s long-term performance.
