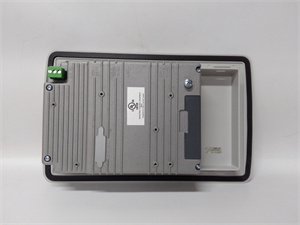

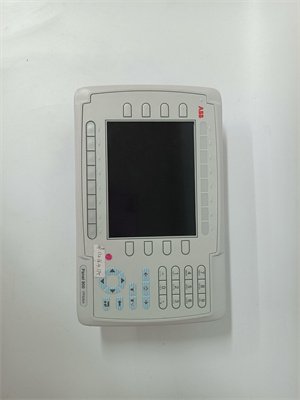

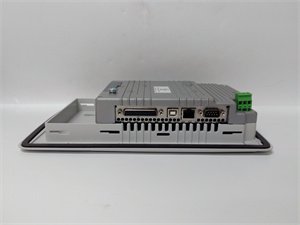

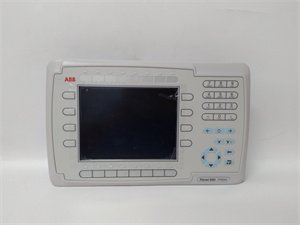

ABB PP836A 3BSE042237R2 operator panel

The PP836A 3BSE042237R2 is a high-performance operator panel from ABB’s Panel 800 family, designed for industrial automation and human-machine interface (HMI) applications. With a 10.4-inch color touchscreen (800×600 resolution), it offers intuitive control and monitoring of processes in manufacturing, energy, and infrastructure sectors. Powered by an Intel Atom N270 1.6 GHz processor, 1 GB DDR2 RAM, and 4 GB SSD, the panel runs Windows Embedded CE 6.0, supporting advanced HMI features like real-time data visualization, alarm management, and recipe handling. The PP836A 3BSE042237R2 integrates seamlessly with ABB’s automation ecosystem (e.g., PLCs, drives) via Ethernet, USB, and RS-232 ports, enabling efficient system management.

Technical Parameters

Advantages and Features

• User-Friendly Interface: Intuitive touchscreen with vector-based graphics and icon-driven navigation.
• Open Architecture: Supports multi-brand controller connectivity (e.g., PLCs, drives) via open protocols.
• Reliability: Rugged aluminum housing with IP65/IP66 protection for dusty/wet environments; MTBF > 80,000 hours.
• Ease of Engineering: Configurable via ABB’s Panel Builder 800 software (drag-and-drop interface, pre-built templates).
• Case Study: A water treatment plant in France reduced downtime by 25% using the PP836A 3BSE042237R2 for real-time monitoring of pumps and valves, improving operational efficiency.

Application Areas and Use Cases

• Industries: Manufacturing (production lines), energy (power plants), oil & gas (field operations), water/wastewater, food & beverage.
• Scenarios:
  • Manufacturing: Monitoring CNC machine parameters (e.g., speed, temperature).
  • Energy: Controlling circuit breakers in substations.
  • Oil & Gas: Managing pump stations in pipeline networks.
• Use Case: A pharmaceutical factory in India deployed the panel for batch process control, achieving 99.5% recipe accuracy and compliance with FDA regulations.

Competitive Comparison

Compared to similar HMI panels:

• Integration: Native compatibility with ABB’s automation suite (e.g., AC500 PLCs) reduces commissioning time by 20%.
• Graphics Performance: High-resolution TFT-LCD (vs. standard resistive screens in competing products).
• Environment: Wider temperature range (-30°C to +70°C storage) vs. industry average (-20°C to +60°C).
• Software Tools: Panel Builder 800 offers pre-tested libraries (vs. custom coding required for some competing products).

Selection Recommendations

• Compatibility: Verify controller protocols (e.g., Modbus, Profibus) and Panel Builder 800 version (≥6.2).
• Environment: Choose the rugged variant (IP66) for outdoor/harsh environments.
• Scalability: Opt for models with expandable I/O (e.g., USB ports for peripherals).
• Future Proofing: Leverage ABB’s long-term support (10+ years of lifecycle service).

Precautions

• Installation: Follow ABB’s mounting guidelines (cutout size: 286 × 216 mm) and EMC standards for cable routing.
• Software Updates: Regularly update firmware via Panel Builder 800 to access new features.
• Safety: Ensure proper grounding to prevent static discharge; avoid direct sunlight on the display.
• Maintenance: Clean the screen with a microfiber cloth; schedule annual system health checks.
