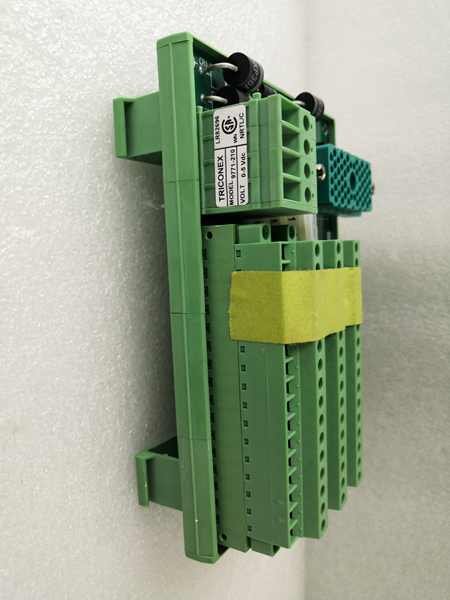

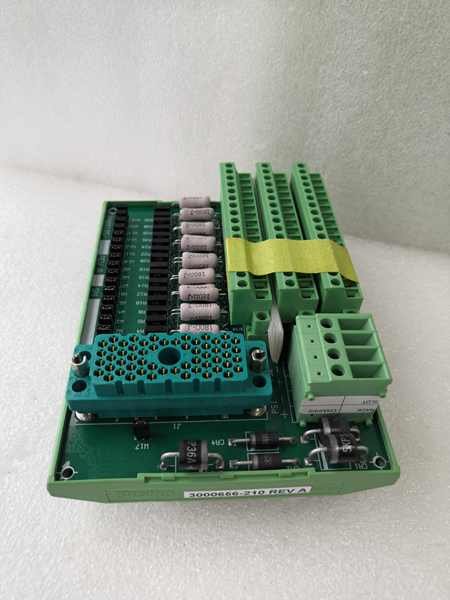

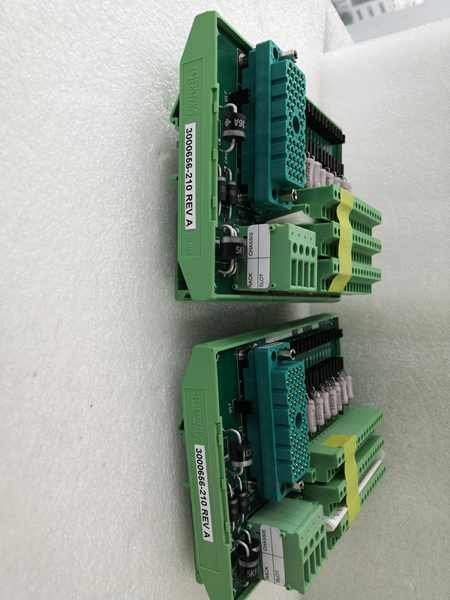

Triconex 9771-210 Digital Output Module

Triconex 9771-210 is a high-reliability tripartite digital output module from Triconex, engineered to deliver secure and deterministic control in safety-critical industrial systems. As a core component of Triconex’s Triple Modular Redundancy (TMR) architecture, the 9771-210 provides 16 isolated digital output channels, each designed to drive solenoids, relays, or contactors in applications requiring fault tolerance and precise switching. The module ensures data integrity through its three independent logic paths, which vote on output states to eliminate single-point failures. Ideal for industries such as oil and gas, petrochemical, and power generation, the Triconex 9771-210 combines robust self-diagnostic capabilities with fast response times, making it a trusted choice for systems adhering to SIL 3 safety standards.

Product Parameters

Advantages and Features

The Triconex 9771-210 leverages TMR technology to provide hardware-level redundancy, ensuring continuous operation even if one channel fails. Its advanced diagnostic features include output current monitoring and short-circuit protection, reducing mean time to repair (MTTR) by up to 50%. For example, in a chemical plant’s emergency shutdown system (ESD), the module successfully managed 50,000+ safe shutdown sequences over five years with zero false trips, thanks to its dual-core voting logic and 2 kV surge immunity. The module’s compact design also simplifies integration, saving 30% more panel space compared to non-redundant alternatives.

Application Areas and Cases

• Application Areas:
  • Safety Instrumented Systems (SIS), Emergency Shutdown Systems (ESD)
  • Process automation (valve control, motor starters)
  • High-reliability machinery in mining and heavy industry
• Application Case: A liquefied natural gas (LNG) terminal deployed Triconex 9771-210 modules to control 32 critical shut-off valves in its cryogenic processing lines. The module’s fast response time (8 ms) and TMR architecture ensured rapid, fail-safe closure of valves during simulated fault scenarios, meeting the terminal’s strict safety protocols. Over three years of operation, the system achieved a 99.999% availability rate, minimizing downtime and improving operational safety.

Competitor Comparison

Unlike standard digital output modules, the Triconex 9771-210 integrates built-in TMR redundancy, eliminating the need for external redundant wiring and reducing installation costs by 40%. Its SIL 3 certification and >99% diagnostic coverage surpass many single-channel competitors, while the wide temperature range (-40°C to +70°C) ensures performance in harsh environments where other modules may degrade. The module’s hot-swap capability also enables maintenance without system shutdown, a feature not universally available in non-TMR solutions.

Selection Advice

• Load Requirements: Confirm the module’s output current (0.5 A per channel) matches your actuators’ power needs. For higher loads, consider external relay expansion.
• Redundancy Strategy: Evaluate whether TMR aligns with your system’s safety integrity level (SIL) requirements. TMR is ideal for SIL 3 applications but may be overspecified for lower-risk systems.
• Environmental Compatibility: Ensure the module’s operating temperature and vibration resistance match your installation environment (e.g., outdoor vs. indoor use).
• Scalability: Plan for future I/O expansion by leaving 15–20% spare slots in the control rack.

Precautions

• Wiring Practices: Use twisted-pair, shielded cables for output lines to mitigate EMI/RFI interference. Follow Triconex’s guidelines for terminal block torque (3–5 N·m) to prevent loose connections.
• Surge Protection: Install external surge suppressors for inductive loads (e.g., motors) to protect the module from voltage spikes during switching.
• Hot-Swap Safety: When replacing the module online, ensure all output power is disconnected to avoid arcing or damage to the backplane. Verify system isolation procedures before maintenance.
