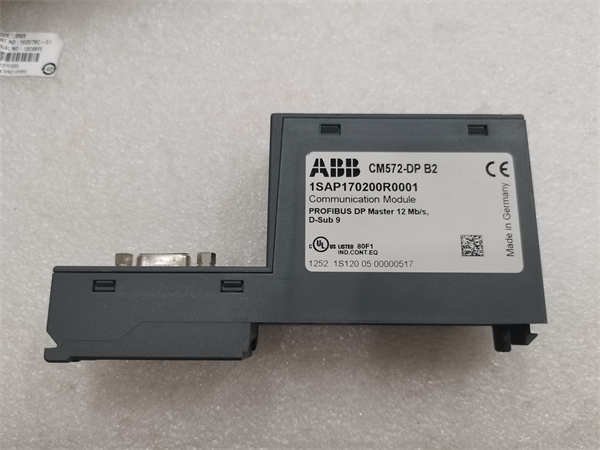

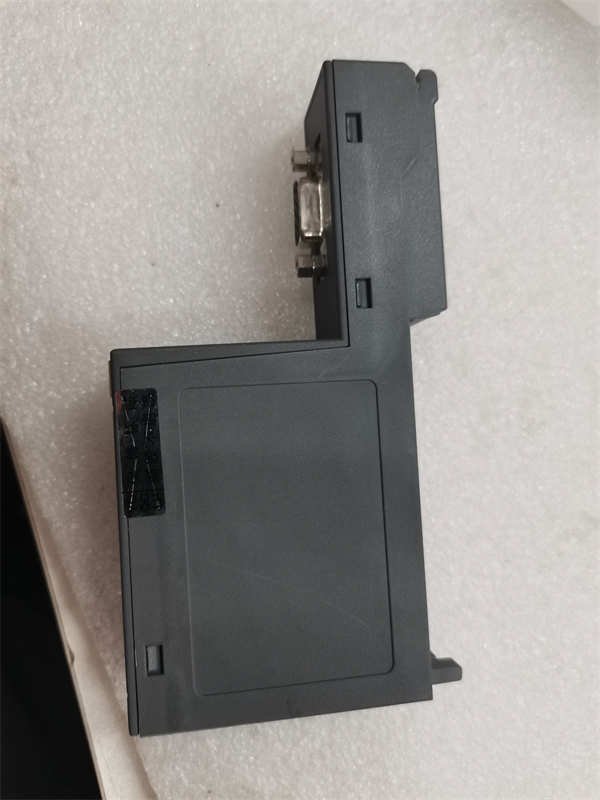

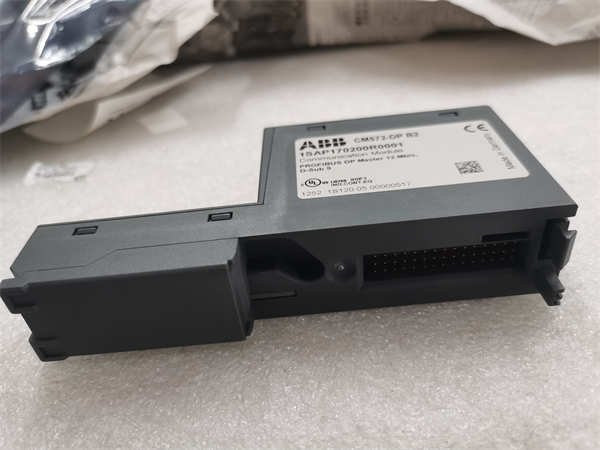

ABB CM572-DP Communication Module

The ABB CM572-DP is a high-performance PROFIBUS DP communication module designed for seamless integration into industrial automation systems. It enables efficient data exchange and control between various devices on a PROFIBUS DP network, making it an essential component for modern industrial applications. The module features a compact and rugged industrial design, allowing for easy installation and reliable operation in harsh environments. With its wide range of supported baud rates (9.6 kbps to 12 Mbps) and compatibility with both DPV0 and V1 protocols, the ABB CM572-DP ensures versatile communication capabilities. Its diagnostic LEDs provide real-time status monitoring, further enhancing its usability and maintenance efficiency.

Detailed Parameter Table

Core Advantages and Technical Highlights

The ABB CM572-DP offers several key advantages that make it a standout choice for industrial communication needs.

High Performance and Reliability: The ABB CM572-DP supports data transfer rates up to 12 Mbps, ensuring fast and efficient communication on the PROFIBUS DP network. Its rugged design and wide operating temperature range (-25°C to +60°C) make it suitable for use in challenging industrial environments. The module also features a high mean time between failures (MTBF) of over 200,000 hours, ensuring long-term reliability.

Easy Integration and Compatibility: The ABB CM572-DP is designed to seamlessly integrate with ABB’s AC500 series of programmable logic controllers (PLCs) and other industrial devices. Its D-Sub 9-pin connector and compliance with RS-485 standards ensure easy connection and compatibility with a wide range of systems. The module supports both DPV0 and V1 protocols, providing flexibility in network configuration.

User-Friendly Design: The ABB CM572-DP features diagnostic LEDs that provide real-time status monitoring, making it easy to identify and resolve issues quickly. Its compact size (62 mm x 135 mm x 28 mm) and lightweight design (0.12 kg) make it easy to install and integrate into existing systems. The module also features a simple plug-and-play installation process, reducing setup time and effort.

Advanced Protection and Durability: The ABB CM572-DP is designed with a protection class of IP20, ensuring it is protected against dust and indirect contact. It also features a vibration resistance of 2 g (10-150 Hz) and a shock resistance of 15 g (11 ms duration), making it highly durable. The module operates reliably within a wide voltage range (24 VDC ±10%) and can withstand power interruptions of up to 10 ms.

Typical Application Scenarios

The ABB CM572-DP is widely used in various industrial applications where reliable and efficient communication is critical. In manufacturing plants, it is used to connect PLCs with sensors, actuators, and other devices on the factory floor, enabling seamless data exchange and control. In the automotive industry, the ABB CM572-DP is employed in assembly lines to facilitate real-time communication between robotic systems and control units. In food and beverage processing facilities, it ensures precise control and monitoring of production processes by connecting various equipment on a PROFIBUS DP network. The module’s ability to operate in a wide temperature range and its rugged design make it suitable for outdoor applications, such as in oil and gas refineries.

Installation Commissioning and Maintenance Instructions

Installation Preparation

Before installing the ABB CM572-DP, ensure that the environment meets the specified requirements, including an operating temperature range of -25°C to +60°C and relative humidity levels between 5% and 95% non-condensing. The installation location should be free from excessive dust, moisture, and corrosive gases to ensure long-term reliability. Use a standard DIN rail for mounting the module, ensuring it is securely fastened. Always follow the manufacturer’s guidelines for proper installation to avoid damage to the device.

Maintenance Suggestions

To maintain the ABB CM572-DP, perform regular inspections of the module and its connections to ensure they are secure and free from corrosion. Clean the module regularly with a soft, dry cloth to remove dust and debris. If any issues arise, refer to the troubleshooting guide in the user manual for common solutions. Replace any worn or damaged parts promptly to ensure continued performance. Regularly update the firmware to benefit from the latest enhancements and security features. By following these maintenance tips, you can ensure the long-term reliability and optimal performance of the ABB CM572-DP.

Service and Guarantee Commitment

The ABB CM572-DP is backed by ABB’s commitment to quality and customer satisfaction. ABB offers a comprehensive warranty that covers manufacturing defects and ensures the product meets the highest standards of reliability. In addition to the warranty, ABB provides extensive after-sales support, including technical assistance and spare parts availability. This commitment ensures that customers receive reliable and efficient support throughout the product’s lifecycle, giving them confidence in their investment.
