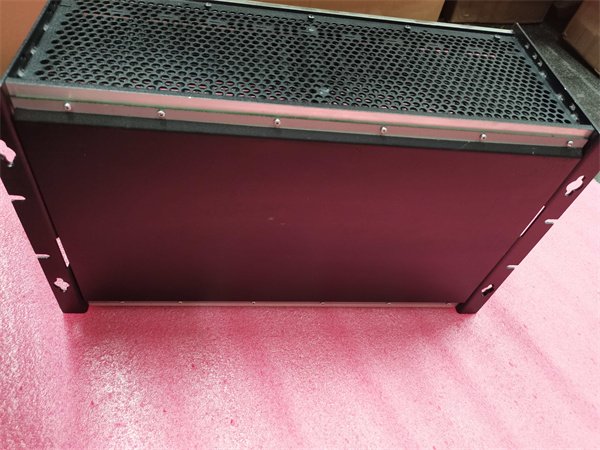

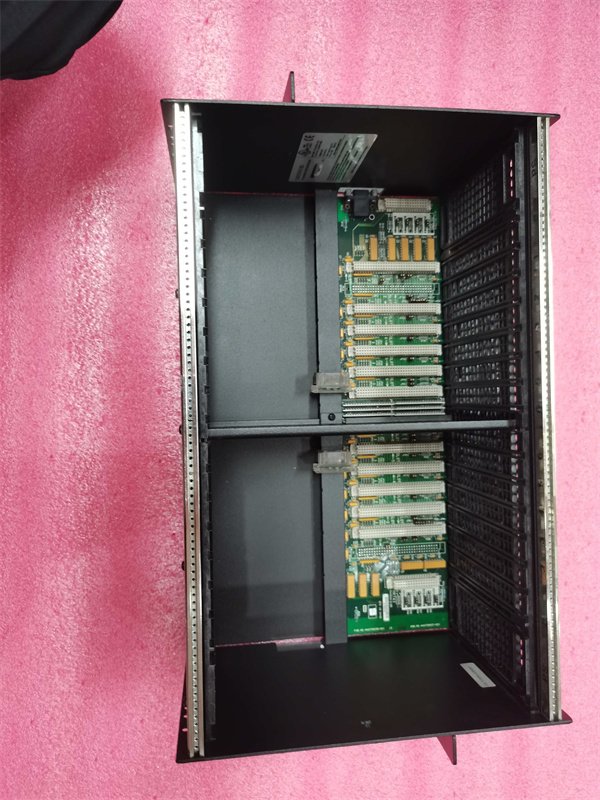

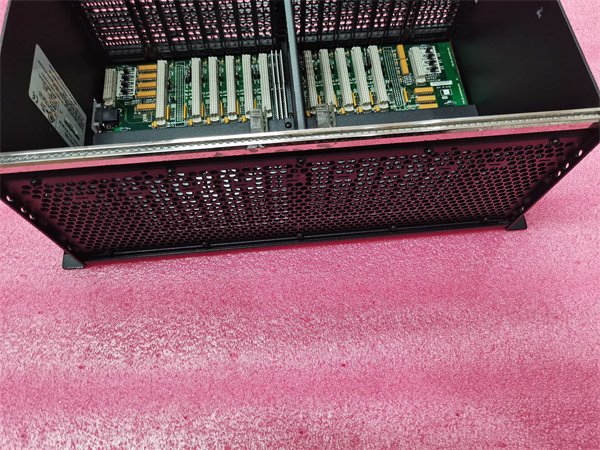

General Electric IC697CHS770 Dual Redundant Rear Mount Rack
Manufacturer:General Electric
Product Number:GE IC697CHS770
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The GE IC697CHS770 is a high-performance, dual redundant rear mount rack designed for the GE Fanuc Series 90-70 PLC system. It supports both VME and IC697 PLC modules, making it a versatile and reliable solution for industrial automation applications.
Detailed Parameter Table
| Parameter Name | Parameter Value |
|---|---|
| Product Model | GE IC697CHS770 |
| Manufacturer | GE Fanuc |
| Product Category | PLC Rack |
| Type | Dual Redundant Rear Mount Rack |
| Compatibility | Series 90-70 PLC System |
| Slots Supported | 12 backplane slots divided into two sections |
| Power Supply Slots | 2 (one in each section) |
| Dimensions | 10 inches (254 mm) deep for rear mount; standard 19-inch (483 mm) rack for front mount |
| Weight | Approximately 2 pounds (0.91 kg) |
| Power Supply | 115-230Vac, 5VDC, 12VDC, 24VDC, 48VDC |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to +85°C |
| Certifications | CE, SEMI S2, SEMI S7, SEMI S14, SEMI F47 |
Core Advantages and Technical Highlights
High Reliability and Redundancy
The GE IC697CHS770 features a dual redundant controller architecture, which provides increased reliability and availability. It supports redundant power supplies and CPUs, ensuring continuous operation even under unexpected conditions.
Flexible and Scalable Design
The rack supports up to 12 backplane slots divided into two sections, each with its own power supply slot. This modular design allows for easy expansion and customization, accommodating a wide range of I/O modules.
Wide Compatibility
The GE IC697CHS770 is compatible with various power supply options, including 115-230Vac, 5VDC, 12VDC, 24VDC, and 48VDC. It also supports hot-swapping of modules for uninterrupted operation.
Typical Application Scenarios
The GE IC697CHS770 is widely used in:
-
Manufacturing and Production Lines: For precise control and monitoring of industrial processes.
-
Oil and Gas Processing Plants: For reliable operation in harsh environments.
-
Chemical and Petrochemical Facilities: For efficient process control and automation.
-
Power Generation Plants: For stable and continuous power management.
-
Water and Wastewater Treatment Plants: For effective water treatment and management.
Installation Commissioning, and Maintenance Instructions
Installation Preparation
Ensure the environment meets the specified temperature and humidity requirements. Use appropriate tools and safety equipment to secure the rack in place. Connect the power supply and modules according to the manufacturer’s guidelines.
Maintenance Suggestions
Regularly inspect the rack for signs of wear or damage. Keep the unit clean and free from dust to prevent overheating and ensure efficient operation. Perform annual calibration checks and store calibration data in the module’s flash memory.
Service and Guarantee Commitment
The GE IC697CHS770 is backed by a comprehensive warranty and after-sales service commitment. GE Fanuc guarantees the quality of the product and provides a 12-month warranty period from the date of purchase.
