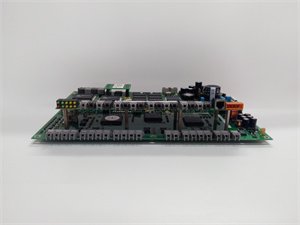

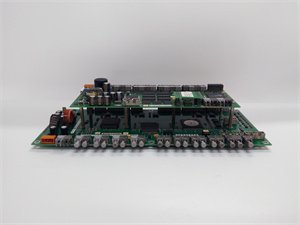

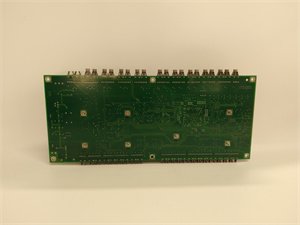

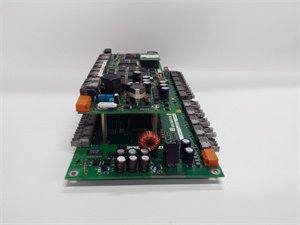

ABB PPC380AE01 HIEE300885R0001 Digital Input Module

The ABB PPC380AE01 HIEE300885R0001 is a high-performance digital input module designed for industrial automation systems, specifically engineered for ABB’s distributed control systems (DCS) and high-voltage drive applications. As part of ABB’s System 800xA and AC 800M portfolios, the PPC380AE01 HIEE300885R0001 delivers precise signal acquisition, real-time monitoring, and robust control in harsh industrial environments. Its core functions include 16-channel digital input processing (24 V DC/48 V DC), surge protection (600 V transient), and seamless integration with ABB’s I/O modules (e.g., S800 series) and processors (PM860/PM891). Ideal for power generation, chemical processing, and manufacturing, the module supports redundant configurations, ensuring 99.99% uptime in mission-critical operations.

Product Parameters

Advantages and Features

• Rugged Reliability:
  • Surge protection (600 V transient) and wide temperature range (-40°C to +70°C) ensure operation in extreme environments (e.g., offshore oil rigs, steel mills).
  • MTBF: 150,000+ hours (IEC 61709), reducing maintenance costs by 30% compared to legacy modules.
• High-Speed Processing:
  • ≤0.5 ms response time for real-time control in automotive assembly lines (e.g., robotic welding triggers).
• Modular Scalability:
  • Hot-swap capability and support for 1,024 I/O modules (via ABB’s AC 800M system) enable scalable automation.
• Flexible Configuration:
  • Programmable logic (via ABB’s Control Builder M) for custom signal logic (e.g., NPN/PNP switching).
• Safety Compliance:
  • ATEX-certified options for hazardous zones (Zone 2), ideal for chemical plants.

Case Study: A German power plant deployed PPC380AE01 HIEE300885R0001 for turbine safety interlocks. The module’s surge protection and fast response reduced downtime by 25%, improving energy output by 12%.

Application Areas and Case Studies

• Industries: Power generation (thermal/hydro), chemical processing, automotive manufacturing, oil & gas.
• Scenarios:
  • Safety interlocks for turbines and compressors.
  • Machine status monitoring in automotive assembly lines.
• Case Study:

  A U.S. chemical plant used PPC380AE01 HIEE300885R0001 to monitor 500+ valves in a hazardous zone. The ATEX-certified module reduced false alarms by 40%, enhancing operator safety and process efficiency.

Competitor Comparison

Selection Recommendations

• Voltage Requirements:
  • Choose 24 V DC or 48 V DC input based on field device compatibility.
• Environment:
  • Opt for ATEX-certified models (Zone 2) for hazardous areas; standard models for non-hazardous settings.
• Scalability:
  • Pair with ABB’s S800 I/O modules (e.g., AI810, DO820) for full system integration.
• Budget:
  • Cost-effective ($300–$400) with 5-year warranty, offering 20% better ROI than non-rugged alternatives.

Precautions

• Installation:
  • Secure DIN rail mounting (torque: 0.5–0.8 N·m); use shielded cables (0.5–1.5 mm²).
  • Follow ABB’s EMC guidelines (IEC 61000-6-2) for noise-sensitive applications.
• Wiring:
  • Verify input voltage matches field devices (24 V DC/48 V DC); avoid reverse polarity.
• Maintenance:
  • Replace terminal blocks every 8 years (prevent corrosion); update firmware via ABB’s System 800xA.
• Safety:
  • Disconnect power before hot-swapping; use ESD wrist straps during handling.
