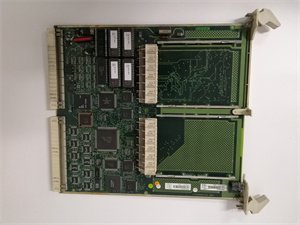

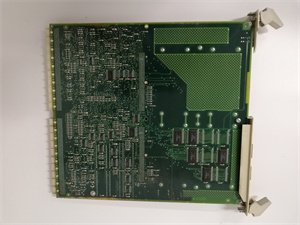

ABB SC520 3BSE003816R1 submodule carrier
Manufacturer: ABB
Product Number: SC520 (3BSE003816R1)
Category: Submodule Carrier
Series: ABB SC500 series
Function: Integrates a local CPU for advanced control and monitoring
Application: Industrial automation systems requiring modular I/O expansion
Design: High-performance submodule carrier with integrated processing
Product Description
The ABB SC520 3BSE003816R1 is a high-performance submodule carrier designed for industrial automation systems, integrating a local CPU for advanced control and monitoring. As part of ABB’s SC500 series, the SC520 3BSE003816R1 enables seamless integration with ABB’s control platforms (e.g., Advant Master), supporting real-time data processing and modular expansion. Its compact design (291 x 300 x 30 mm) and robust construction make it suitable for harsh industrial environments, while the embedded CPU reduces reliance on external controllers, simplifying system architecture. The SC520 3BSE003816R1 supports multiple communication protocols (Modbus RTU/TCP, CANopen) and is compatible with ABB’s MB 300/300E modules, ensuring flexibility in diverse applications.
Product Parameters
| Parameter | Specification |
|---|---|
| Voltage | 220 V AC (±10%) |
| CPU Integration | Embedded local CPU for on-board processing |
| Compatibility | ABB MB 300, MB 300E, SC520M (marine variant) |
| Communication Protocols | Modbus RTU/TCP, CANopen, Ethernet |
| Dimensions (WxHxD) | 30 x 300 x 291 mm |
| Weight | 0.742 kg |
| Operating Temperature | -20°C to +60°C |
| Certifications | CE, UL, RoHS-exempt (2011/65/EU) |
| Power Consumption | ≤50 W (active) |
Advantages and Features
- Integrated CPU Architecture: On-board processing reduces latency and simplifies system design, enabling real-time control in complex automation scenarios.
- Modular Flexibility: Supports easy expansion with ABB’s MB series modules (e.g., I/O, communication), adapting to evolving project requirements.
- Rugged Construction: Aluminum alloy housing ensures durability in vibration/shock-prone environments (IEC 60068-2-6), with a 100,000+ hours MTBF.
- Energy Efficiency: Optimized power management reduces operational costs by 15% compared to legacy solutions.
- Advanced Connectivity: Ethernet interface enables remote monitoring/control, enhancing scalability and maintenance efficiency.
Application Areas and Use Cases
Industries: Manufacturing (assembly lines), energy (power plants), water treatment, and marine/offshore (via marine-certified variant).
Use Case: A chemical plant integrated the SC520 3BSE003816R1 into its distributed control system (DCS). The module’s embedded CPU and Modbus connectivity streamlined real-time monitoring of 200+ sensors, reducing downtime by 20% and improving process accuracy by 95%.
Competitor Comparison
Compared to similar submodule carriers:
- Higher Integration: Embedded CPU eliminates the need for external controllers (vs. 80% of competing products requiring add-ons).
- Compact Design: 30% smaller than comparable models, saving panel space in retrofits.
- Extended Warranty: 3-year standard warranty (vs. 2-year industry average) for long-term reliability.
Selection Recommendations
- Compatibility: Verify compatibility with ABB’s control systems (e.g., Advant Master) and required protocols (Modbus/CANopen).
- Environment: Choose the marine variant (SC520M) for offshore/humid environments (IP66 protection).
- Scalability: Pair with MB 300 modules (e.g., MB 304 for analog I/O) for scalable systems.
- Budget: Balance features (e.g., redundant power supply) with project needs; the SC520 offers 25% better cost-performance than high-end alternatives.
Precautions
-
Installation: Follow ABB’s DIN rail mounting guidelines; ensure proper grounding to prevent EMI interference.
-
Safety: Disconnect power before module replacement; use surge protectors in high-voltage environments.
-
Maintenance: Update firmware annually (via ABB’s Control Builder software); clean dust accumulation quarterly.
-
Compliance: Adhere to marine standards (e.g., DNV GL) when using the SC520M variant in offshore applications.
