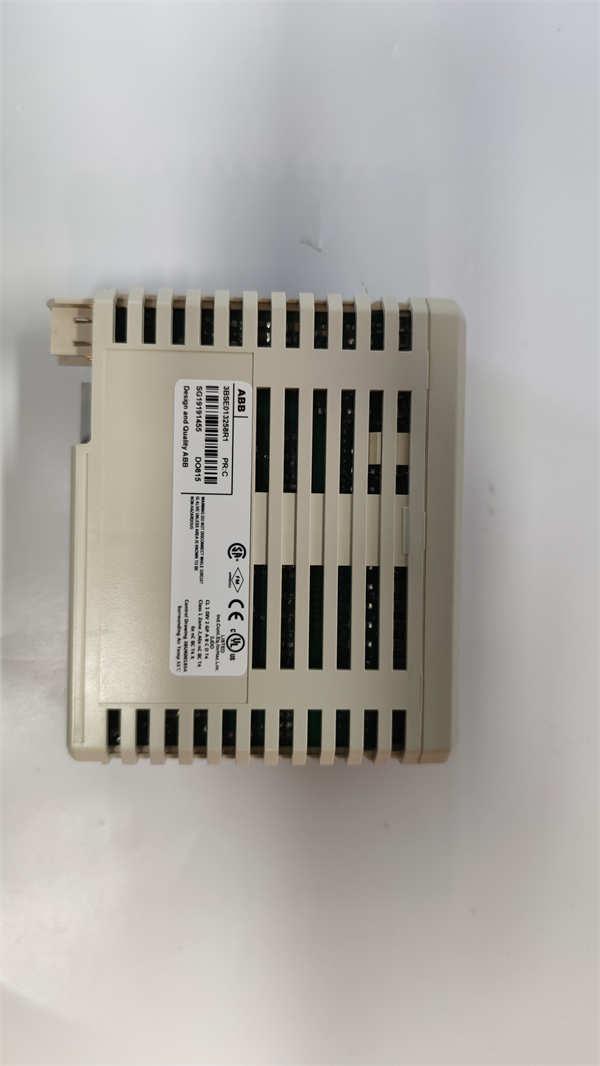

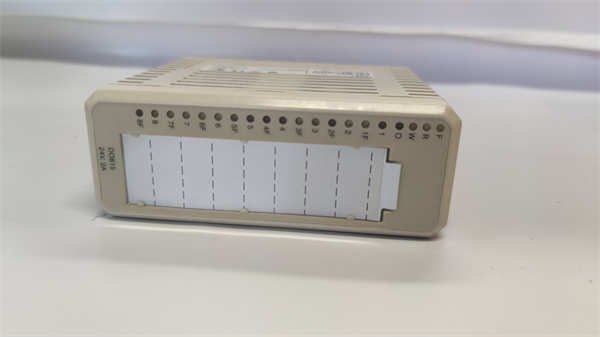

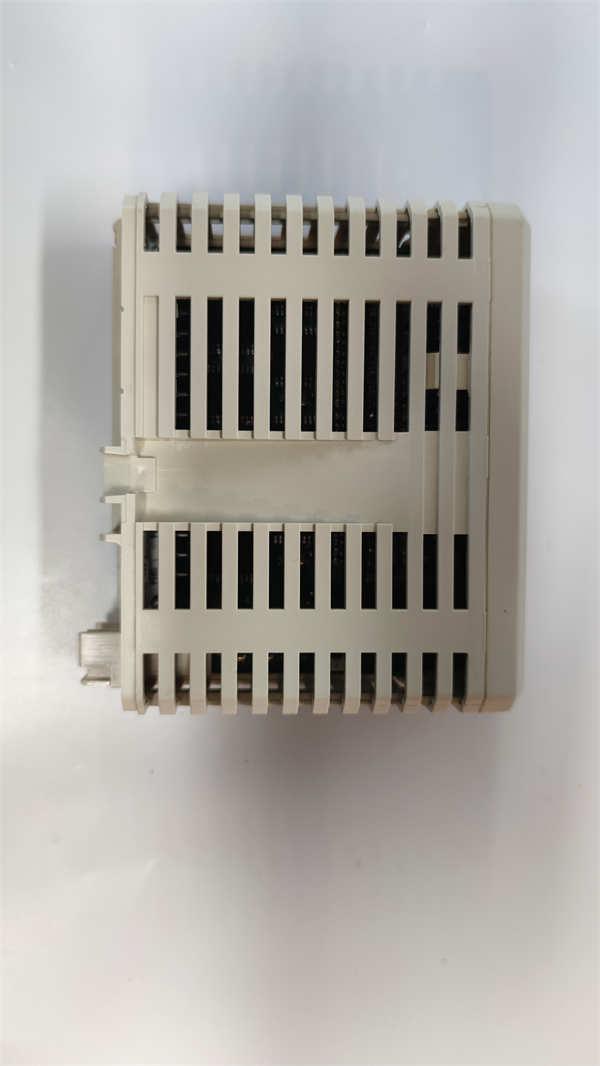

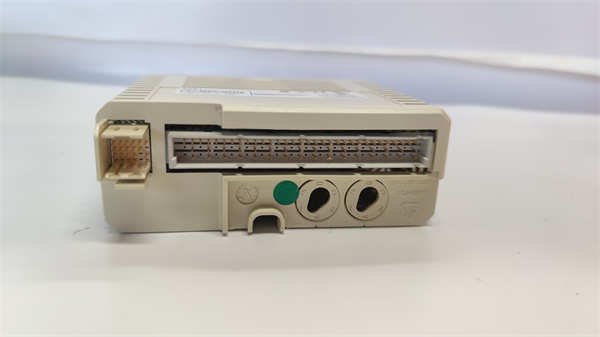

ABB DO815 Digital Output Module
Manufacturer: ABB
Product Number: DO815
Category: Digital Output Module
Number of Channels: 8
Output Type: 24 VDC
Series: S800 I/O series
Application: Harsh industrial environments requiring robust digital output
Function: High-performance digital output for industrial automation
Product Description
The ABB DO815 is a high-performance digital output module designed for industrial automation and control systems. It is part of the S800 I/O series and is known for its robustness, reliability, and efficiency in harsh industrial environments.
Detailed Parameter Table
| Parameter Name | Parameter Value |
|---|---|
| Product Model | DO815 |
| Manufacturer | ABB |
| Product Category | Digital Output Module |
| Series | S800 I/O |
| Input Voltage Range | 24V DC |
| Output Voltage Range | 10 to 30 VDC |
| Output Current Range | 2 A per channel |
| Number of Channels | 8 digital outputs |
| Operating Temperature Range | -25°C to +70°C |
| Storage Temperature Range | -40°C to +85°C |
| Humidity Range | 5% to 95% non-condensing |
| Dimensions (W×H×D) | 102 mm × 119 mm × 45 mm |
| Weight | 0.15 kg |
| Certifications | CE, UL, RoHS |
| Communication Protocols | Ethernet, RS-485 |
| Protection Level | IP20 |
| Application Areas | Industrial Automation, Process Control, Robotics |
Core Advantages and Technical Highlights
High Performance: The module provides 8 digital output channels, each capable of handling 24V DC at 2 A, making it suitable for driving various actuators and devices.
Fast Response: The module has a response time of less than 1 ms, ensuring quick and precise control in real-time applications.
Wide Operating Range: It operates reliably within a temperature range of -25°C to +70°C and a humidity range of 5% to 95% non-condensing.
Advanced Communication Protocols: The module supports multiple industrial protocols, including Ethernet and RS-485, enabling seamless integration with existing systems.
User-Friendly Interface: The module features a compact and robust design, making it easy to install and maintain.
Protection Features: The module includes short-circuit protection, over-voltage protection, and over-temperature protection, ensuring safe operation.
Typical Application Scenarios
The ABB DO815 is widely used in various industrial sectors, including:
-
Manufacturing Plants: For precise control of production lines and machinery.
-
Power Plants: For monitoring and controlling power generation processes.
-
Water Treatment Facilities: For managing pumps and valves in water treatment systems.
-
Transportation Systems: For real-time control of traffic signals and other transportation infrastructure.
Installation Commissioning, and Maintenance Instructions
Installation Preparation: Ensure the installation environment is clean and free of interference. Prepare the necessary tools and follow the installation manual carefully.
Maintenance Suggestions: Regularly inspect the module for physical damage, monitor output voltages using a multimeter, and check for abnormal heat generation or noises. Clean the module’s surface periodically to prevent dust accumulation, which can affect heat dissipation.
Service and Guarantee Commitment
The ABB DO815 comes with a comprehensive warranty, ensuring customer satisfaction and peace of mind. ABB provides technical support and service to assist with installation, troubleshooting, and maintenance.
