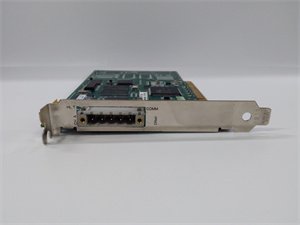

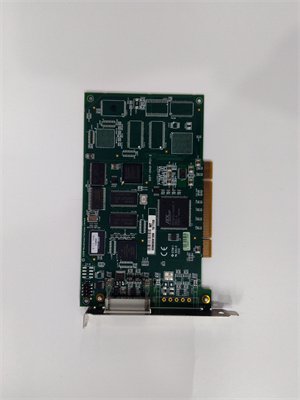

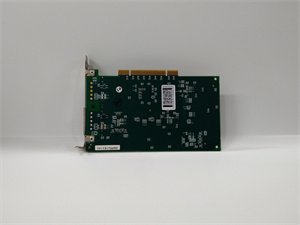

ABB DSQC658 3HAC025779-001 communication module
Manufacturer: ABB
Product Number: DSQC658 (3HAC025779-001)
Category: Communication Module
Application: Critical interface between robotic controllers and peripheral devices
Function: Enables seamless data exchange in industrial automation systems
Design: High-performance communication module for ABB robotics
Product Description
The DSQC658 3HAC025779-001 is a high-performance communication module designed by ABB for industrial automation systems. This module serves as a critical interface between robotic controllers and peripheral devices, enabling seamless data exchange in complex manufacturing environments. It supports multiple communication protocols, including PROFINET and DeviceNet, making it ideal for applications requiring real-time control and diagnostics. With its robust design and advanced features, the DSQC658 ensures reliable operation in demanding industrial settings, such as automotive production lines, material handling systems, and process automation.
Key functionalities include:
- Protocol Compatibility: Integrates with PROFINET and DeviceNet networks for efficient data transfer.
- Fault Detection: Monitors open-circuit current loops and provides visual alerts via LED indicators.
- Redundancy Support: Maintains the last valid output value during communication interruptions or CPU failures.
- Modular Design: Simplifies integration and maintenance in existing automation setups.
Technical Parameters
| Parameter | Specification |
|---|---|
| Brand & Model | ABB DSQC658 3HAC025779-001 |
| Communication Protocols | PROFINET, DeviceNet |
| Power Supply | 24V DC ±10% (external power required) |
| Current Consumption | 250mA @ 24V DC |
| I/O Interfaces | Digital inputs/outputs (8 channels each) |
| LED Indicators | Power (green), Fault (amber), Channel Status (green/red) |
| Environmental Range | -40°C to 85°C (-40°F to 185°F), 95% humidity (non-condensing) |
| Dimensions | 114mm x 257mm x 80mm (4.5″ x 10.1″ x 3.1″) |
| Weight | 0.5 kg (1.1 lb) |
| Certifications | CE, RoHS |
Advantages & Features
Reliability
- High MTBF: With an estimated Mean Time Between Failures (MTBF) exceeding 30,000 hours, the DSQC658 minimizes downtime in critical operations.
- Fault Tolerance: Detect open-circuit current loops (>500Ω) and communicate errors via registers and LEDs, ensuring rapid troubleshooting.
Performance
- Real-Time Communication: Supports PROFINET’s IRT (Isochronous Real-Time) mode for sub-millisecond latency, critical for motion control and precision applications.
- Dual Protocol Support: Seamlessly switches between PROFINET and DeviceNet, adapting to diverse network architectures.
Ease of Use
- Plug-and-Play Integration: Requires minimal configuration, reducing setup time and costs.
- Status Monitoring: Intuitive LED indicators provide instant diagnosis and simplify maintenance.
Energy Efficiency
- Low Power Consumption: Operates efficiently at 24V DC with minimal current draw, suitable for energy-sensitive environments.
Application Areas & Use Cases
Industry Applications
- Automotive Manufacturing: Controls robotic welding and assembly lines.
- Electronics Production: Manages pick-and-place machines and quality inspection systems.
- Material Handling: Coordinates conveyor systems and AGVs (Automated Guided Vehicles).
- Process Automation: Monitors and controls chemical and food processing plants.
Case Study
A leading automotive manufacturer in Germany integrated the DSQC658 into its body-in-white assembly line. The module’s PROFINET connectivity enabled real-time synchronization of 50+ welding robots, reducing cycle time by 15% and improving weld quality consistency. The fault detection feature also minimized downtime by 40% through proactive maintenance alerts.
Competitive Comparison
The DSQC658 outperforms comparable modules in the market by:
- Faster Communication: Supports PROFINET IRT with latency <1ms, whereas many competitors offer only standard RT (10ms+).
- Dual Protocol Support: Combines PROFINET and DeviceNet in a single module, eliminating the need for additional gateways.
- Enhanced Diagnostics: Provides detailed fault codes and LED indicators, unlike basic modules with limited status reporting.
Selection Guidelines
Key Considerations
- Compatibility: Ensure compatibility with ABB’s IRC5 controllers and existing network infrastructure.
- Environment: Verify temperature and humidity ranges match operational conditions.
- Redundancy: For mission-critical applications, pair with redundant power supplies and network switches.
- Budget: Balance performance requirements with cost, considering long-term reliability benefits.
Safety & Maintenance Tips
- Installation: Always power off the system before installing or replacing the module to avoid electrostatic discharge (ESD) damage.
- Power Supply: Use a dedicated 24V DC source to prevent voltage fluctuations.
- Cleaning: Regularly inspect for dust or debris and clean using compressed air.
- Firmware Updates: Keep the module’s firmware updated via ABB’s official tools for optimal performance.
