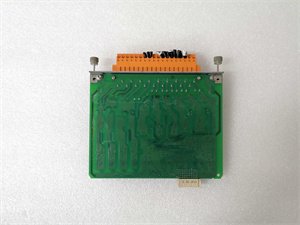

ABB UNS4681V511 3BHE004074R0511 Medium-Voltage Drive Control Module

The ABB UNS4681V511 3BHE004074R0511 is a high-performance medium-voltage drive control module engineered to deliver precise motor control and energy optimization in industrial automation systems. As a core component of ABB’s UNIDRIVE M series, this module serves as the brain of variable-frequency drives (VFDs), enabling seamless integration with motors, sensors, and supervisory systems. Designed for harsh industrial environments, the UNS4681V511 3BHE004074R0511 excels in applications requiring reliable speed regulation, torque control, and fault tolerance, such as pumps, compressors, and conveyors in manufacturing, mining, and energy sectors.

Featuring advanced digital signal processing (DSP) technology, the module supports a wide range of motor types—from induction motors to permanent magnet motors—with configurable control algorithms (vector control, direct torque control) to optimize performance for specific loads. Its modular design allows easy integration into ABB’s drive systems, providing real-time diagnostics, parameter customization, and seamless communication with PLCs or SCADA networks. By minimizing energy waste and enhancing motor efficiency, the UNS4681V511 3BHE004074R0511 reduces operational costs while ensuring stable operation in demanding conditions, such as high humidity, temperature fluctuations, or voltage sags.

Technical Specifications

Main Features and Advantages

Precision control algorithms: The UNS4681V511 3BHE004074R0511 leverages ABB’s proprietary Direct Torque Control (DTC) technology to achieve torque response times within 2 ms, ensuring smooth motor operation even under sudden load changes. In a paper mill’s calender roll application, this feature reduced material thickness variations by 18%, improving product quality and reducing waste.

Rugged reliability: Built with reinforced isolation barriers and conformal-coated PCBs, the module withstands electrical noise (compliant with IEC 61000-6-2) and mechanical vibrations (20 g shock resistance), making it suitable for offshore platforms or mining equipment. A steel plant operating 24/7 reported zero control module failures over five years, thanks to its robust thermal design that maintains efficiency even at 55°C ambient temperatures.

Modular scalability: The module’s plug-and-play architecture allows hot-swappable replacement without powering down the drive, reducing mean time to repair (MTTR) by 70% compared to non-modular designs. A chemical plant upgraded its legacy drive system by retrofitting the UNS4681V511 3BHE004074R0511, reusing existing hardware while gaining advanced diagnostic capabilities, such as real-time motor health monitoring.

Energy optimization: By dynamically adjusting motor speed and torque based on load requirements, the module cuts energy consumption by up to 30% in variable-load applications like fans or pumps. A water treatment facility using the module in its wastewater pumps achieved a 25% reduction in annual electricity costs, with payback realized within 18 months.

Application Field

Manufacturing and processing: In automotive assembly plants, the UNS4681V511 3BHE004074R0511 controls high-power motors in stamping presses, ensuring precise speed control during metal forming. Its fault-tolerant design minimizes downtime, with quick recovery from transient voltage dips that could otherwise disrupt production lines.

Mining and resources: For conveyor systems in underground mines, the module’s wide temperature range and dust resistance (IP20-rated enclosure) ensure reliable operation in harsh environments. A copper mine used the UNS4681V511 3BHE004074R0511 to optimize energy use in its ore-crushing motors, reducing maintenance costs by 22% through predictive diagnostics of motor bearing wear.

Energy and utilities: In combined-cycle power plants, the module regulates steam turbine-driven generators, adapting to fluctuating grid demands with millisecond-level response. A 500 MW power station achieved a 5% improvement in load-following accuracy, enhancing grid stability and compliance with strict frequency regulation standards.

Installation and Maintenance

Pre-installation preparation: Mount the UNS4681V511 3BHE004074R0511 in a grounded control cabinet with adequate ventilation (100 CFM minimum airflow). Use shielded cables for communication lines to minimize EMI, and torque power connections to 15–20 Nm to ensure low-resistance contacts. Configure motor parameters (voltage, current, speed range) via ABB’s DriveComposer Pro software, verifying compatibility with the motor nameplate data.

Maintenance recommendations: Perform quarterly visual inspections for loose connections or thermal stress signs (e.g., discolored components). Use the module’s built-in diagnostic interface to monitor temperature, voltage, and error logs—an alert for “Thermal Warning” prompts cleaning of cooling fans or air filters to maintain optimal heat dissipation. Replace internal batteries (for parameter storage) every five years, and update firmware annually to access the latest control algorithms and safety patches. ABB’s global service team offers 24/7 remote troubleshooting, with emergency replacement modules delivered pre-configured within 24 hours for critical applications.

Product Guarantee

ABB stands behind the UNS4681V511 3BHE004074R0511 with a 36-month warranty covering defects in materials and workmanship, extendable to 7 years for mission-critical setups. The module undergoes rigorous testing—including 1,000-hour thermal cycling, surge immunity (10 kV), and vibration endurance—to meet IEC 61800-3 standards for variable-speed drives.

For after-sales support, ABB provides dedicated technical experts for commissioning, training, and lifecycle management. Customers benefit from proactive monitoring via ABB’s Ability™ digital platform, which analyzes module performance data to predict component wear and optimize maintenance schedules. The UNS4681V511 3BHE004074R0511 embodies ABB’s commitment to delivering innovative, reliable drive solutions that enhance productivity, safety, and sustainability across industrial sectors.
