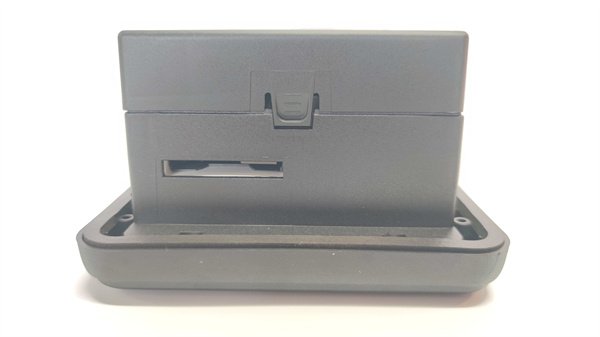

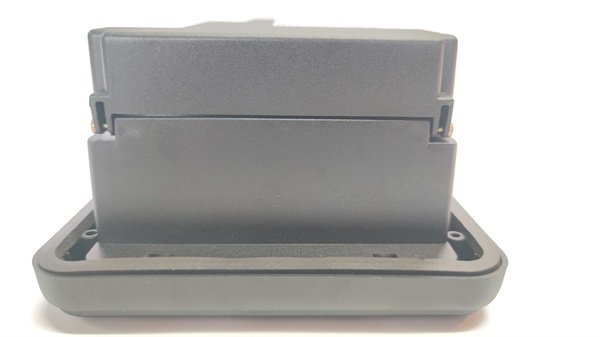

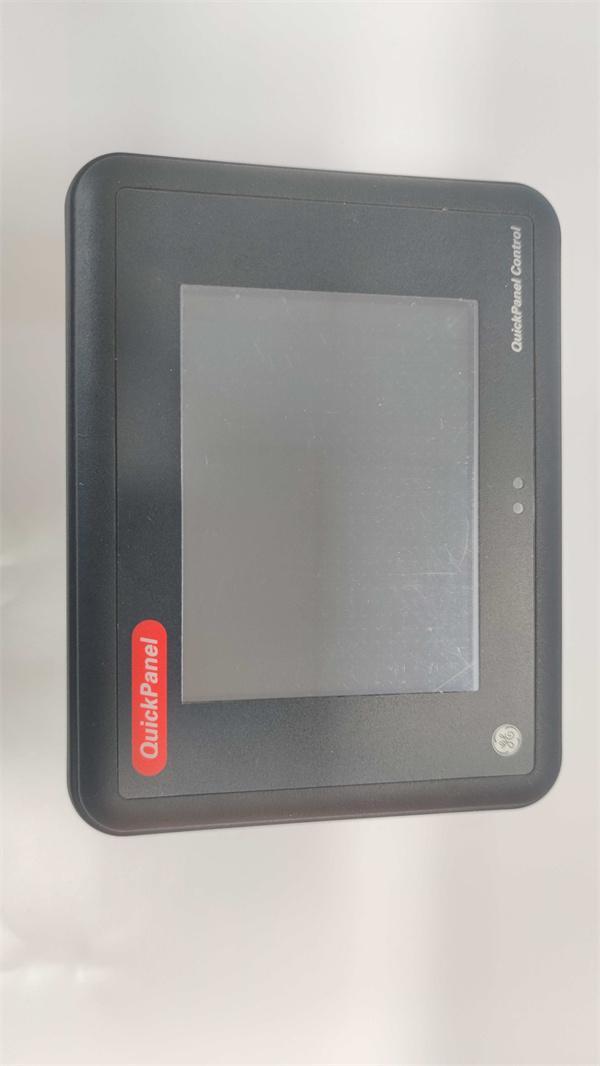

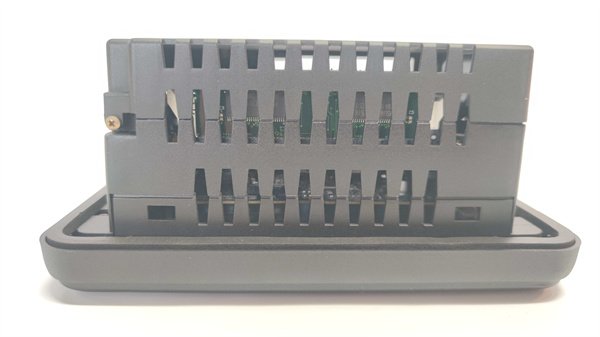

General Electric IC754CSX06CTD Control Display Panel
Manufacturer: General Electric
Product Number: IC754CSX06CTD
Category: Control Display Panel
Series: GE QuickPanel series
Function: All-in-one microcomputer based human machine interface (HMI)
Application: Industrial automation requiring operator interface and control
Product Description
The GE IC754CSX06CTD is a high – performance control display panel belonging to the GE QuickPanel series. It is designed to serve as a crucial human – machine interface (HMI) in industrial automation systems. This all – in – one microcomputer – based device offers maximum flexibility. With its advanced ARM core microprocessor, the IC754CSX06CTD integrates a high – resolution touch – screen operator interface and a variety of communication options, enabling seamless connection to most industrial equipment. It allows users to intuitively monitor and control industrial processes, enhancing operational efficiency and accuracy. The 6 – inch color screen is optimized for high visibility in different lighting conditions, and the touch – screen input supports precise control and interactive functionality.
Technical Specifications
| Parameter Name | Parameter Value |
|---|---|
| Product Model | IC754CSX06CTD |
| Manufacturer | GE |
| Product Type | Control Display Panel |
| Display | 6 – inch color screen |
| Touch Screen | Yes |
| Communication Protocols | RS232 and RS485 |
| Power Requirements | 12 – 30 VDC |
| Memory Capacity | 32 MB main memory, 512 MB DRAM, 256 MB non – volatile flash memory, 512 KB battery – backed SRAM |
| Operating System | Microsoft Windows Embedded Compact 7 |
| Dimensions | 192 mm × 137 mm × 36 mm (L × W × D) |
| Weight | 0.800 kg |
| Mounting Options | VESA mount (75 mm x 75 mm) |
| Environmental Specifications | Designed for harsh industrial environments |
Main Features and Advantages
The IC754CSX06CTD offers remarkable versatility, functioning as a standalone HMI or integrating with PLCs for both local and distributed control. Its customizable configuration options provide the flexibility to meet diverse application needs. The intuitive interface ensures ease of use, requiring minimal training for operators. In terms of reliability, it is built to withstand harsh industrial environments, ensuring stable operation over an extended period. Additionally, it supports multiple communication protocols, facilitating seamless integration with a wide range of industrial devices, thus enhancing the scalability of the automation system.
Application Field
The GE IC754CSX06CTD is widely applicable in various industrial automation scenarios. In manufacturing plants, it is used to monitor and control production lines, enabling operators to adjust parameters and troubleshoot in a timely manner. In the energy industry, it can be applied to monitor and manage power generation equipment and distribution systems. In the chemical industry, it helps to monitor and control complex chemical reaction processes. Moreover, in the transportation and logistics industry, it is utilized to manage and monitor conveyor systems and automated storage and retrieval systems. Overall, wherever there is a need for intuitive monitoring and precise control in industrial processes, the IC754CSX06CTD can play a vital role.
Installation and Maintenance
Pre – installation preparation: Before installing the IC754CSX06CTD, ensure that the power supply meets the requirements of 12 – 30 VDC. Check the physical dimensions and mounting options to ensure a proper fit in the intended location. Inspect the unit for any loose or damaged components. Also, make sure that the communication ports and cables are compatible with the connected devices.
Maintenance recommendations: Regularly clean the screen of the IC754CSX06CTD to ensure clear visibility. Check the power supply and communication connections regularly to ensure stable operation. Update the software and firmware in a timely manner to ensure that the device has the latest features and performance. In case of any malfunctions, refer to the user manual or contact GE technical support for assistance.
Product Guarantee
GE stands behind the quality of the IC754CSX06CTD with a comprehensive product guarantee. The company offers a certain – period quality assurance to ensure that the product is free from manufacturing defects. In case of any quality issues, GE provides prompt after – sales service and technical support. The professional technical team is available to assist customers in troubleshooting and solving problems, demonstrating GE’s confidence in the product quality and its commitment to customer satisfaction.
