GE H201Ti Detailed Introduction

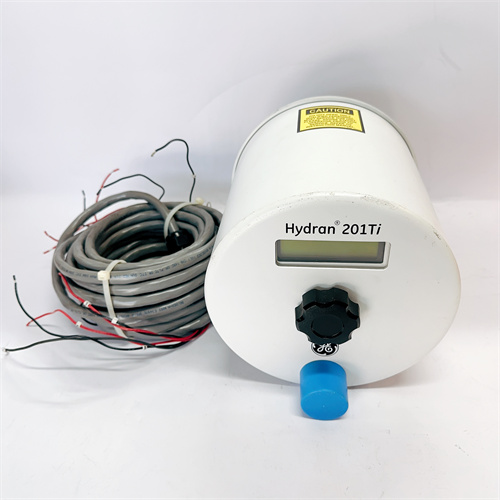

GE H201Ti is a small and easy-to-set-up continuous DGA monitor designed for fault monitoring of power equipment such as transformers.It provides real-time assessment of the health status of the transformer by monitoring the concentration of dissolved gas in the oil,helping users to promptly detect and deal with potential fault hazards.

Main Features

High-precision monitoring:H201Ti uses high-precision gas sensors and analyzers to ensure the accuracy and reliability of gas concentration data.After rigorous calibration and testing,its accuracy can reach±2ppm,and it can detect trace amounts of dissolved gas.

Early warning:H201Ti provides early warning function.When abnormal dissolved gas concentration in oil is detected,it can promptly issue an alarm to the user,helping the user to take timely measures to avoid equipment damage and potential safety risks.

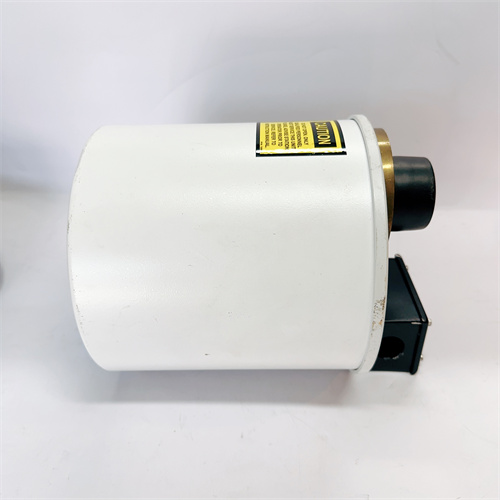

Strong adaptability:H201Ti can adapt to different working environments and transformer types.It can be directly connected to the dissolved gas monitoring valve of the transformer through a brass adapter,which is convenient and quick to use.

Remote monitoring:H201Ti supports remote monitoring function.Users can remotely view gas readings and trends through serial port communication to achieve remote management and maintenance of equipment.

Easy to maintain:The terminal of H201Ti is convenient for connecting AC power,alarm contacts(gas high,gas high-high and system fault)and supervision connections,which is easy to maintain and maintain.

Technical parameters

Measurement range:0-2000ppm(volume/volume,H2 equivalent)

Measurement accuracy:±10%of reading±25ppm(H2 equivalent)

Gas response

H2:100%concentration response

CO:15±4%concentration response

C2H2:8±2%concentration response

C2H4:1.5±0.5%concentration response

Response time:10 minutes(90%step change)

Communication interface:Supports multiple communication interfaces such as Ethernet,RS-232/485,which is convenient for data exchange with background systems or other devices.

Protection level:Reaching IP67 protection level,it can withstand harsh industrial environments and ensure stable operation of equipment.

Application field

GE H201Ti is widely used in transformer monitoring in the power,petrochemical,chemical and other industries.It can help users monitor the health status of transformers in real time,discover and deal with potential faults in a timely manner,and ensure the stable operation and safe production of power equipment.
