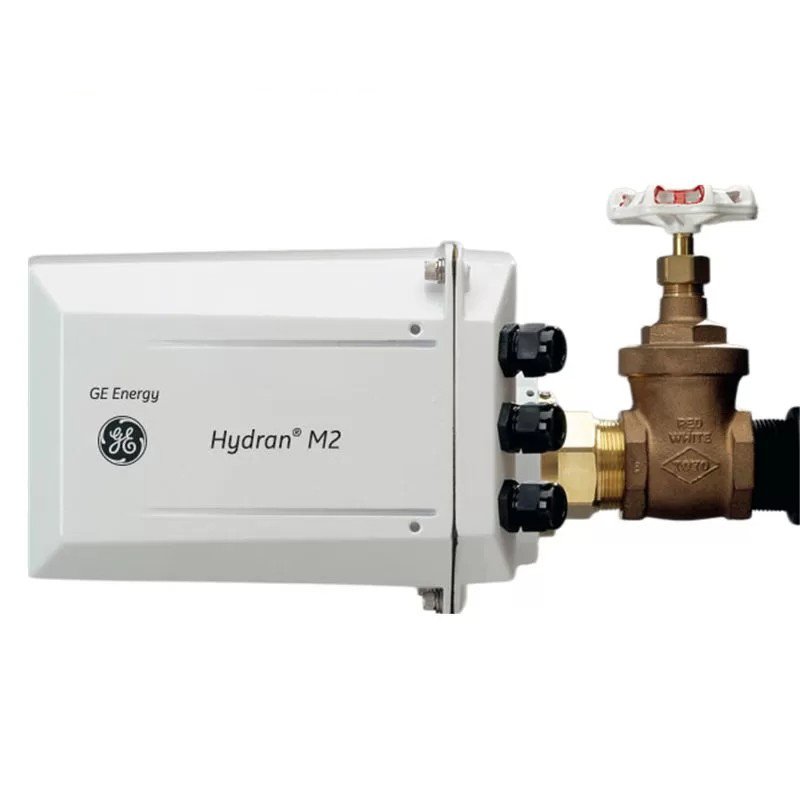

GE HYDRAN M2 Online Transformer Monitoring

The GE HYDRAN M2 is a compact, permanently mounted, online transformer monitoring device. It alerts personnel to developing fault conditions. Essentially, it’s a real-time health monitor for transformers, providing early warnings of potential issues.

Key Features and Benefits

Real-time monitoring: The device continuously monitors transformer health. It detects potential issues before they escalate into major problems.

Early fault detection: Advanced algorithms analyze data from various sensors. This provides early warnings of developing faults.

Compact and easy to install: The HYDRAN M2 is designed for easy installation. It requires minimal maintenance.

Customizable: You can configure it to monitor a wide range of parameters, including:

• Dissolved gas analysis (DGA)
• Moisture in oil
• Load
• Oil temperature

Integration capabilities: The device integrates into existing asset management systems. This allows for comprehensive data analysis and reporting.

Technical Specifications

Specific technical specifications may vary. However, here are some general features you can expect:

Sensors:

• Dissolved gas analysis sensors
• Moisture in oil sensor
• Temperature sensors
• Pressure sensors

Communication:

• Supports various communication protocols (e.g., Modbus, Ethernet)
• Offers remote access for monitoring and configuration

Power supply:

• Supports a wide voltage range
• Consumes low power

Environmental:

• Designed for harsh environments
• Operates within a wide temperature range

Applications

The HYDRAN M2 suits a wide range of applications, including:

• Power generation
• Transmission and distribution
• Industrial facilities
• Commercial buildings
