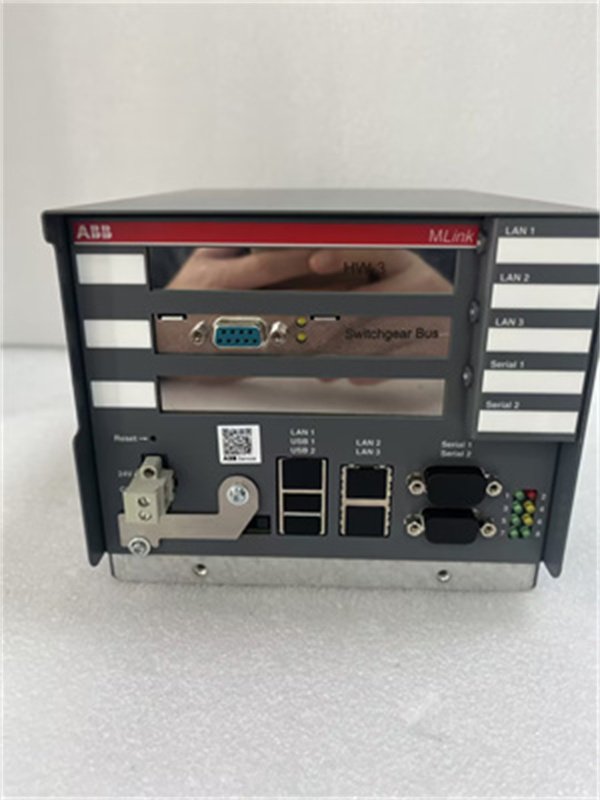

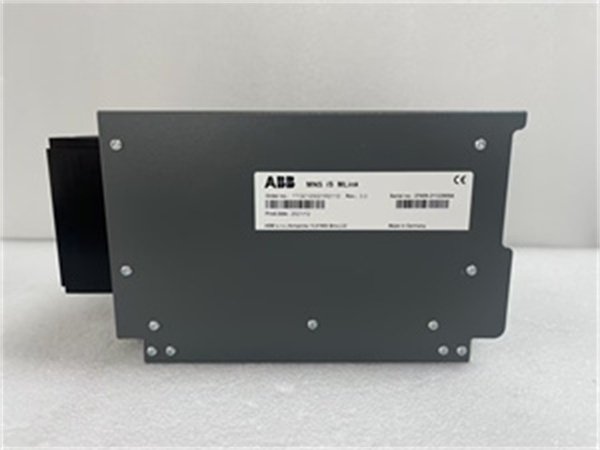

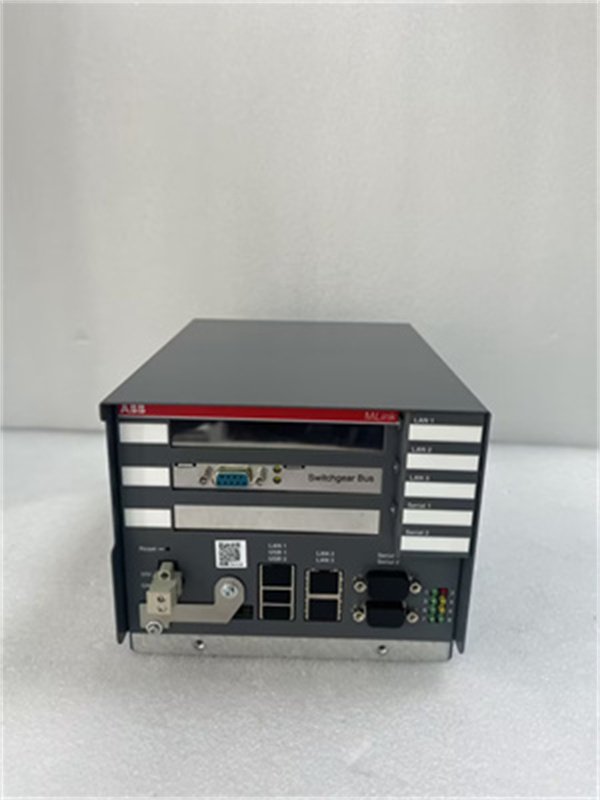

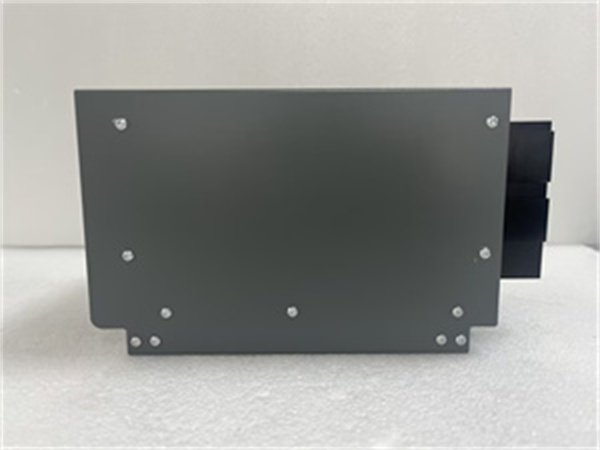

ABB 1TGE120021R0110 Industrial Control Module
Manufacturer: ABB
Product Number: 1TGE120021R0110
Category: Industrial Control Module
Application: Complex automation systems in demanding industrial environments
Function: High-performance control with stable performance
Design: Engineered to meet demanding industrial requirements
Product Description
The ABB 1TGE120021R0110 is a high-performance industrial control module designed for complex automation systems. This module is engineered to meet the demanding requirements of modern industrial environments, ensuring stable performance and seamless integration with existing control architectures.
Detailed Parameter Table
| Parameter Name | Parameter Value |
|---|---|
| Product Model | 1TGE120021R0110 |
| Manufacturer | ABB |
| Product Category | Industrial Control Module |
| Input Voltage | 24V DC (±15%) |
| Power Consumption | ≤10W |
| Communication Protocols | Modbus RTU, Profibus DP, Ethernet IP |
| I/O Channels | 16 digital inputs, 8 analog outputs |
| Data Resolution | 12-bit for analog signals |
| Operating Temperature Range | -20°C to +60°C |
| Storage Temperature Range | -40°C to +85°C |
| Humidity Range | 5% to 95% non-condensing |
| Dimensions (W×H×D) | 150 mm × 100 mm × 50 mm |
| Weight | 0.45 kg |
| Certifications | CE, RoHS, IEC 61131-2 compliant |
Core Advantages and Technical Highlights
Exceptional Reliability and Durability: The 1TGE120021R0110 features a rugged design that protects against dust, moisture, and vibration. It achieves an average mean time between failures (MTBF) of 150,000 hours, demonstrating its long-term reliability in harsh industrial settings.
Flexible I/O Configuration: The module offers 16 digital inputs and 8 analog outputs, with a 12-bit resolution for analog signals. This flexibility allows users to customize input/output channels according to specific application needs.
High-Speed Data Processing: The 1TGE120021R0110 supports high-speed data processing with minimal latency, critical for real-time control and monitoring applications.
Hot-Swapping Capability: The module supports hot-swapping, allowing for easy replacement without system shutdown, which significantly reduces downtime and maintenance costs.
Advanced Diagnostic Tools: Built-in diagnostic tools provide real-time status updates, helping users proactively identify and resolve issues.
Typical Application Scenarios
The ABB 1TGE120021R0110 is widely used in various industrial sectors, including:
-
Automated Production Lines: For controlling conveyor belt speeds, robotic arm positioning, and achieving high-precision synchronous production.
-
Robot Control: Outputting pulse signals to drive robot joint motors and complete complex trajectory planning.
-
Process Control Systems: Communicating with DCS to monitor the operating status of equipment such as valves and pumps.
-
Testing and Measuring Equipment: Generating precise pulse signals for calibrating sensors or performing periodic tests.
Installation Commissioning, and Maintenance Instructions
Installation Preparation: Ensure the installation environment is clean and free of interference. Prepare the necessary tools and follow the installation manual carefully.
Maintenance Suggestions: Regularly inspect the module for physical damage, monitor output voltages using a multimeter, and check for abnormal heat generation or noises. Clean the module’s surface periodically to prevent dust accumulation, which can affect heat dissipation.
Service and Guarantee Commitment
The ABB 1TGE120021R0110 comes with a comprehensive warranty, ensuring customer satisfaction and peace of mind. ABB provides technical support and service to assist with installation, troubleshooting, and maintenance.
