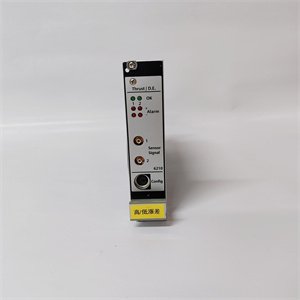

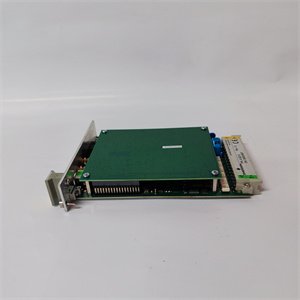

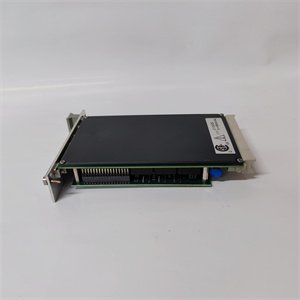

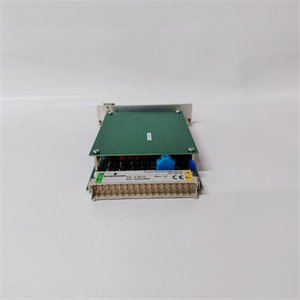

Emerson A6210 high-performance monitoring module

The Emerson A6210 is a high-performance monitoring module designed for critical industrial applications, including power generation, oil & gas, and manufacturing. It integrates three core functions into a single unit: thrust position monitoring, differential expansion tracking, and rod position detection, ensuring real-time equipment health assessment and safety.

Core Functions and Applications

1. Thrust Position Monitoring:

   • Tracks axial shaft displacement in turbomachinery (e.g., turbines, compressors) to prevent rotor-to-case contact.
   • Resolves movements as small as ±0.001 mm, using eddy current sensors to detect sudden shifts that could lead to catastrophic failures.

2. Differential Expansion Monitoring:

   • Measures thermal growth differences between turbine casings and rotors during start-up/shutdown cycles.
   • Supports tandem/complementary or cone/ramp modes to adapt to varying temperature fluctuations in power plants and industrial facilities.

3. Rod Position Monitoring:

   • Detects piston rod wear in reciprocating compressors by monitoring rider band movement.
   • Enables predictive maintenance by alerting operators to early-stage wear, reducing unplanned downtime.

Technical Specifications

Key Features

1. Multi-Mode Flexibility:

   • Combines three critical monitoring functions in one module, reducing hardware complexity and installation costs.
   • Supports API 670 compliance for machinery protection in high-risk environments.

2. Reliability and Safety:

   • Dual-channel redundancy with voting logic for SIL 3-rated safety systems.
   • Real-time self-diagnostics for hardware health, power supply, and sensor integrity via front-panel LEDs.

3. Ease of Integration:

   • Hot-swappable design allows maintenance without system downtime.
   • Seamless compatibility with Emerson’s AMS 6500 Machinery Health Monitor, DeltaV™, and Ovation™ DCS systems via MODBUS or OPC-UA.

4. Advanced Signal Processing:

   • PeakVue Technology enhances detection of early-stage bearing defects and impacts in noisy environments.
   • Built-in linearization algorithms optimize sensor accuracy post-installation.

Industry Applications

• Power Generation:

  Monitors turbine thrust bearings and differential expansion in coal/gas-fired plants to prevent rotor-stator collisions.

• Oil & Gas:

  Detects rod wear in reciprocating compressors and ensures safe operation of turbomachinery in offshore platforms.

• Manufacturing:

  Tracks piston rod position in injection molding machines and presses to avoid equipment damage.

Competitor Comparison

The A6210 outperforms alternatives like Bently Nevada 3300 XL and Siemens SITRANS V in:

• Multi-Functionality: Combines thrust, expansion, and rod monitoring in a single module.
• Temperature Range: Operates reliably at 0–65°C, compared to 0–50°C for some competitors.
• Integration: Native compatibility with Emerson’s AMS 6500 system reduces engineering effort.

Selection and Maintenance

• System Compatibility: Verify compatibility with AMS 6500 controller versions and existing sensor infrastructure.
• Environmental Conditions: Ensure IP20 rating and 0–65°C temperature range suit the installation environment.
• Redundancy Needs: For SIL 3 applications, consider the A6250 triple-redundant module.
• Calibration: Perform periodic calibration using Emerson’s AMS Machinery Manager software.
