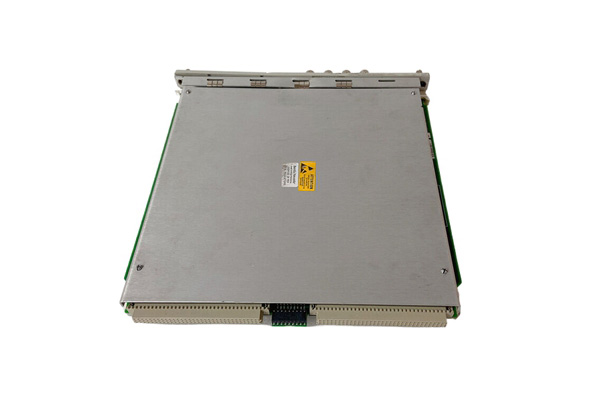

Bently Nevada 3500/42M 176449-02 Monitoring Device

BENTLY 3500/42M 176449-02 module is a high-performance monitoring device designed specifically for radial vibration, axial displacement, eccentricity, REBAM, and differential expansion measurements. The following is a detailed introduction to the module:

Module characteristics

High precision measurement

This module provides up to 24 bit resolution and low noise level, ensuring accurate analog signal measurement.

Has excellent linearity and low drift performance, achieving accurate measurement results over a wide dynamic range.

Multi channel monitoring

It is a configurable 4-channel monitor module, which means that multiple parameters can be monitored simultaneously, improving the efficiency of testing and measurement.

Each channel has independent amplifiers and sampling circuits, supporting multiple adjustable input ranges to meet the amplitude requirements of different signal sources.

Diverse input types

In addition to receiving input types from eddy current sensors, this module can also receive input types from velocity, acceleration, and dual probes (velocity and displacement) and their related signal conditioning, such as filtering and integration.

Differential signal processing

Capable of performing differential signal processing to extract casing vibration signals from relative shaft vibrations, providing critical information for absolute shaft measurements of certain large gas and steam turbines.

Built in calibration function

Equipped with built-in automatic calibration function, it can calibrate each channel during the measurement process, improving the accuracy and reliability of the measurement.

Support NI’s standard calibration program to ensure consistency and accuracy of measurement results.

High speed data transmission

Using PXIe bus interface, it has high-speed data transmission capability and can quickly transmit the collected data to the computer for processing and analysis.

Powerful software support

Closely integrated with NI’s LabVIEW and other software tools, it provides rich functions and easy-to-use programming interfaces, making it easy for users to perform operations such as data acquisition, real-time monitoring, automated testing, and remote control.

Application Fields

BENTLY 3500/42M 176449-02 module is widely used in industrial fields, especially in equipment operation and maintenance in energy, oil and gas, chemical and other industries:

Energy industry: used in power plants, power plants, and other energy facilities to monitor the bearing status of rotating equipment such as generators, turbines, and wind turbines, predict potential failures, and ensure equipment reliability and safety.

Oil and gas industry: used in oil drilling, refineries, and natural gas processing facilities to monitor the vibration level of rotating equipment such as pumps and compressors, detect signs of equipment failure in a timely manner, and avoid production interruptions and equipment damage.

Chemical industry: In the chemical production process, it is used to monitor the vibration of rotating equipment such as mixers, centrifuges, and pumps, predict equipment failures, take appropriate maintenance measures, and reduce downtime and production losses.

Price and Purchase

Regarding the price of BENTLY 3500/42M 176449-02 module, the specific transaction price may change due to factors such as product participation in activities, purchase quantity, or selected specifications. It is recommended to directly contact the relevant suppliers or distributors to obtain the most accurate price information.

In summary, the BENTLY 3500/42M 176449-02 module plays an important role in the field of industrial monitoring due to its high precision, multi-channel, flexible input range, and high-speed data transmission characteristics.
