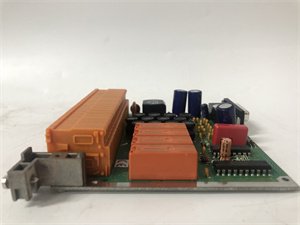

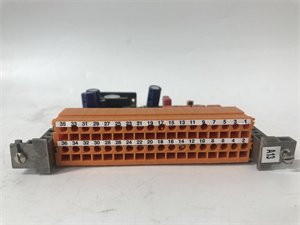

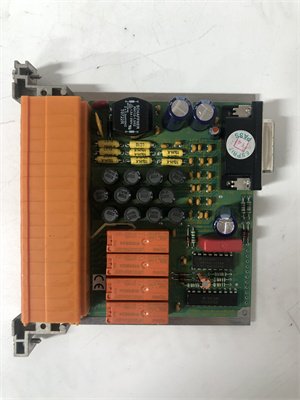

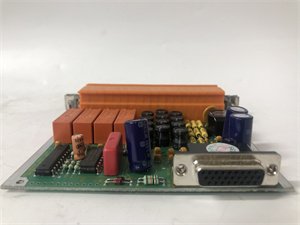

Honeywell 05701-A-0361 Single Channel Control Card
Manufacturer: Honeywell
Product Number: 05701-A-0361
Category: Single Channel Control Card
Type: Analog output control card
System Compatibility: Honeywell legacy free control systems
Function: Receives digital control signals and provides analog output
Application: Industrial automation requiring single-channel analog output
Product Description
The Honeywell 05701-A-0301 is a single-channel analog output control card designed for use in Honeywell’s legacy free control systems for industrial automation applications. It receives digital control signals from the superior control system (PLC, DCS) and converts these signals into analog voltage or current outputs according to the program configuration. The analog output signal can be used to control external devices such as actuators (valves, motors) or variable speed drives in industrial processes.
Detailed Parameter Table
| Parameter Name | Parameter Value |
|---|---|
| Product Model | Honeywell 05701-A-0301 |
| Manufacturer | Honeywell |
| Product Category | Single Channel Control Card |
| Operating Voltage | 18V to 32V DC |
| Output Type | 4-20mA |
| Number of Channels | 1 |
| Communication Interface | Backplane connector |
| Operating Temperature Range | 0°C to +60°C |
| Dimensions | Not specified |
| Weight | Not specified |
| Certifications | Not specified |
Core Advantages and Technical Highlights
High Precision Control
The Honeywell 05701-A-0301 provides precise control of industrial processes by converting digital signals into analog outputs with high accuracy.
Robust Design
The module is designed for industrial environments, with anti-noise, anti-vibration, and a wide operating temperature range, ensuring reliable operation.
User-Friendly Interface
The module features a four-part liquid display, including an analog display with 25 segments and a digital display with four characters. This provides clear and intuitive feedback for operators.
Typical Application Scenarios
The Honeywell 05701-A-0301 is widely used in:
-
Industrial Automation: For precise control of production lines and machinery.
-
Process Control: For monitoring and controlling critical processes in power plants, oil and gas industries, and chemical processing.
-
Environmental Monitoring: For measuring and monitoring environmental parameters such as water quality and air quality.
Installation Commissioning, and Maintenance Instructions
Installation Preparation
Ensure the environment meets the specified temperature and humidity requirements. Use appropriate tools and safety equipment to secure the module in place. Connect the module to the control system according to the manufacturer’s guidelines.
Maintenance Suggestions
Regularly inspect the module for signs of wear or damage. Keep the unit clean and free from dust to prevent overheating and ensure efficient operation.
