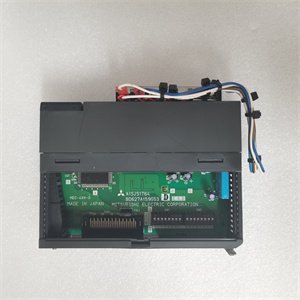

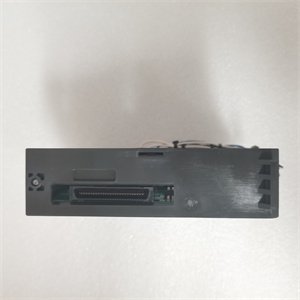

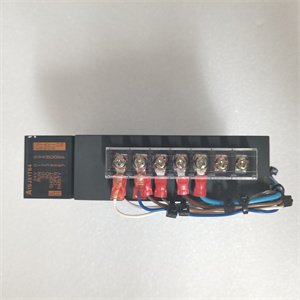

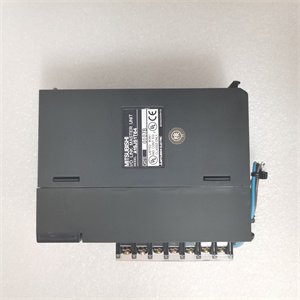

Mitsubishi A1SJ51T64 Remote I/O Module
Manufacturer: Mitsubishi
Product Number: A1SJ51T64
Category: Remote I/O Module
Series: MELSEC I/O Link system
Application: Industrial automation requiring reliable and efficient control of remote I/O devices
Function: High-performance remote I/O for Mitsubishi PLC systems
Product Description
The Mitsubishi A1SJ51T64 is a high-performance remote I/O module designed for industrial automation applications. It is part of the MELSEC I/O Link system and provides reliable and efficient control and monitoring of remote I/O devices.
Detailed Parameter Table
| Parameter Name | Parameter Value |
|---|---|
| Product model | Mitsubishi A1SJ51T64 |
| Manufacturer | Mitsubishi |
| Product category | Remote I/O Module |
| Operating Voltage | DC 21.6V to 27.6V |
| Input/Output Channels | 64 points (I/O split: 64 outputs) |
| Communication Protocol | CC-Link |
| Communication Speed | 38400 bps |
| Data Transmission Method | Register insertion method |
| Synchronization Method | Frame synchronization, bit synchronization |
| Parity Check | Yes |
| Bus Form | T-branch possible, no terminal resistance required |
| Maximum Cable Length | 200 meters |
| Maximum Number of Stations | 16 stations per master unit |
| Indicators | LED indicators for status, RUN A, RUN B external outputs |
| Input Current | 90 mA (typical at DC 24V) |
| Maximum Output Current | 115 mA |
| Dimensions | 130 mm × 34.5 mm × 106.6 mm |
| Weight | 0.3 kg |
| Certifications | UL, CSA, CE |
Core Advantages and Technical Highlights
The Mitsubishi A1SJ51T64 supports high-speed data transmission with a refresh time of approximately 5.4 ms, regardless of the number of points. This ensures real-time control and monitoring in demanding industrial environments.
Robust Communication Capabilities
The module supports multiple communication protocols, including CC-Link, ensuring seamless integration with various control systems. It also features advanced diagnostic capabilities for remote I/O devices.
Flexible Configuration
The Mitsubishi A1SJ51T64 can be configured with different I/O splits (16/32/48 points) depending on the number of remote I/O units connected. This flexibility allows for optimal system design and resource utilization.
User-Friendly Design
The module features LED indicators for status monitoring and RUN A, RUN B external outputs. Its compact design and lightweight construction make it easy to install and integrate into existing systems.
Typical Application Scenarios
The Mitsubishi A1SJ51T64 is widely used in industries requiring high reliability and precision, such as:
-
Manufacturing: Controlling production lines and robotic systems.
-
Oil & Gas: Ensuring safe and efficient operation in refineries and drilling platforms.
-
Power Generation: Real-time control of turbines and generating units.
-
Water Treatment: Managing water treatment processes and monitoring environmental parameters.
Installation Commissioning and Maintenance Instructions
Installation Preparation
Before installing the Mitsubishi A1SJ51T64, ensure the environment is free from excessive dust and moisture. Verify that the power supply matches the module’s requirements (DC 21.6V to 27.6V) and that the operating temperature range (0°C to 60°C) is suitable for the installation location.
Maintenance Suggestions
Regular maintenance is crucial for extending the lifespan of the Mitsubishi A1SJ51T64. Perform routine inspections to check for loose connections or signs of wear. Clean the module periodically to prevent dust buildup and monitor its operation to detect any potential issues early.
Service and Guarantee Commitment
The Mitsubishi A1SJ51T64 is backed by a comprehensive warranty, ensuring customer satisfaction and peace of mind. Mitsubishi is committed to providing exceptional after-sales service, with a dedicated technical support team available to assist with any issues or inquiries.
