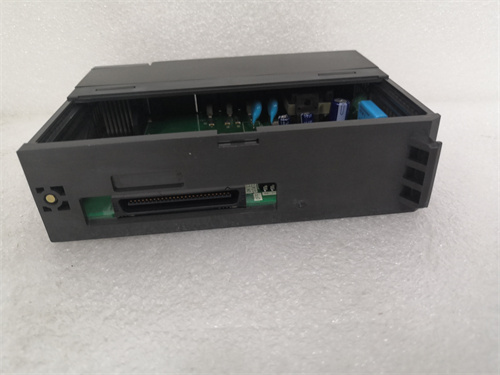

MITSUBISHI A1SJ51T64 Product Details

MITSUBISHI A1SJ51T64 is a temperature control module produced by Mitsubishi Electric.The following is a detailed introduction to the module.

Basic information

Brand:MITSUBISHI

Model:A1SJ51T64

Category:Temperature control module

Technical specifications

Network connection:Using Mitsubishi’s MELSEC I/O network connection unit technology

Control points:Maximum output control points are 128 points

Input and output refresh time:5.4ms

Connection cable:twisted pair cable 0.75 mm2 or more;rubber insulated cable 0.75 mm2 or more

Communication speed:38400bps

Communication method:register insertion method

Error control method:parity check

Transmission channel form:bus transmission

Transmission distance:200m

Number of remote I/O unit connection stations:1

Input and output occupied points:64 points

External power supply:voltage DC21.6~27.6V,current 90mA;DC5V internal consumption current 115mA

Dimensions:130*34.5*106.6mm

Weight:0.3Kg

Main features

High-precision temperature control:By adjusting the output of heating or cooling,the temperature is stabilized within the set range.It is suitable for industrial processes that require precise temperature control and helps improve product quality and production efficiency.Flexibility:The module can be configured as a temperature sensor and control output,and monitors and controls the temperature through input and output circuit connections,providing users with flexibility and the ability to choose different configurations and connection methods according to actual needs.

High reliability:It uses high-quality materials and components,and has been rigorously tested and verified to be able to operate stably under harsh environmental conditions.At the same time,it has a fault diagnosis function that can detect and isolate faults in a timely manner to ensure the reliability and stability of the system.

Easy to integrate:The compact design and small size make it easy to integrate into various industrial automation and control systems.Standard communication interfaces such as Modbus,Profibus,etc.are provided to facilitate data communication with other devices and control systems.

Easy maintenance:The design makes it easy to maintain and replace.If the module needs to be repaired or replaced,it usually only requires simple tools and steps to complete the operation.In addition,manufacturers usually provide user manuals and technical support to help users better maintain and use the module.

Application areas

Industrial heating and cooling systems:Used to control and monitor industrial heating systems(such as baking ovens,furnaces,etc.)and cooling systems to ensure that the process temperature is within the predetermined range.

Temperature regulation and speed control equipment:In applications where temperature regulation and equipment speed control are required,it can be used to control temperature and adjust the operating parameters of the equipment.

Environmental control system:Applied to building and industrial environmental control systems,such as air conditioning systems,to keep the temperature of a specific area within a comfortable range.

Food and pharmaceutical industries:Strict temperature control is required to ensure product quality,and A1SJ51T64 can be used in these applications.

Laboratory and R&D equipment:Used to control and monitor temperature during experiments.

Production line temperature monitoring:Used to monitor and control temperature during production to ensure product quality and consistency.

In summary,the Mitsubishi A1SJ51T64 temperature control module is a high-performance,high-reliability industrial control module suitable for a variety of industrial automation and process control applications that require precise temperature control.
