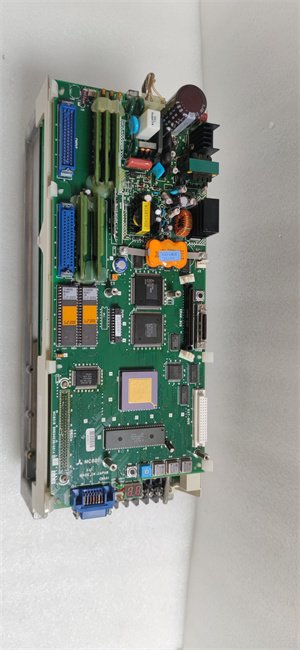

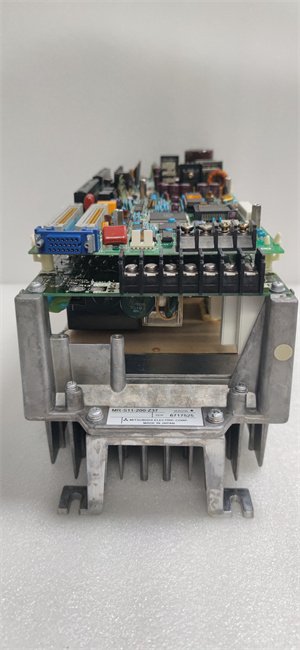

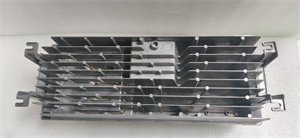

Mitsubishi MR-S11-200-Z37 AC Servo Drive
Manufacturer: Mitsubishi
Product Number: MR-S11-200-Z37
Category: AC Servo Drive
Rated Power: 200 W
Control Mode: Position, speed, torque
Feedback: Encoder
Operating Temperature: 0°C to +55°C
Application: Industrial automation requiring precise motion control
Product Description
The Mitsubishi MR-S11-200-Z37 is a high-performance AC servo drive designed for industrial automation applications. It offers precise control and reliable performance, making it suitable for various industrial environments.
Detailed Parameter Table
| Parameter Name | Parameter Value |
|---|---|
| Product model | Mitsubishi MR-S11-200-Z37 |
| Manufacturer | Mitsubishi Electric |
| Product category | AC Servo Drive |
| Rated Power | 200 W |
| Rated Voltage | 24 V DC |
| Rated Current | 8.3 A |
| Rated Speed | 3000 rpm |
| Encoder Resolution | 2500 ppr |
| Overload Capacity | 200% for 3 seconds |
| Response Frequency | 1 kHz |
| Inertia Matching | Automatic |
| Communication Interface | RS-422 |
| Dimensions | 176 mm × 100 mm × 32 mm |
| Weight | 0.5 kg |
| Operating Temperature Range | -10°C to +60°C |
| Certifications | CE, UL, RoHS compliant |
Core Advantages and Technical Highlights
High Precision and Reliability
The MR-S11-200-Z37 features a high-precision encoder with a resolution of 2500 pulses per revolution (ppr), ensuring accurate positioning and reliable operation. It supports both open-loop and closed-loop control modes, providing flexibility for different control needs.
Compact Design
With dimensions of 176 mm × 100 mm × 32 mm and a weight of only 0.5 kg, the MR-S11-200-Z37 is compact and lightweight, making it easy to install in space-constrained applications.
Advanced Control Capabilities
The drive supports multiple control modes, including position, speed, and torque control, allowing it to adapt to various industrial requirements. It also features a digital signal processor (DSP) for precise motor control, achieving higher control accuracy and faster response speeds.
High Overload Capacity
The MR-S11-200-Z37 can handle overloads up to 200% for 3 seconds, ensuring stable operation even under heavy loads. This feature is crucial for applications requiring high torque during startup or sudden load changes.
Typical Application Scenarios
The MR-S11-200-Z37 is widely used in industrial automation fields, including:
-
CNC Machine Tools: Providing precise control for high-precision machining.
-
Robots: Ensuring accurate positioning and smooth operation in robotic arms.
-
Packaging Machinery: Controlling packaging processes with high precision.
-
Printing Machinery: Ensuring high-quality printing with precise control.
-
Food Machinery: Managing food processing equipment with high reliability.
Installation Commissioning and Maintenance Instructions
Installation Preparation
Before installing the MR-S11-200-Z37, ensure the environment is free from excessive dust and moisture. Verify that the power supply matches the drive’s requirements (24 V DC) and that the operating temperature range (-10°C to +60°C) is suitable for the installation location.
Maintenance Suggestions
Regular maintenance is crucial for extending the lifespan of the MR-S11-200-Z37. Perform routine inspections to check for loose connections or signs of wear. Clean the drive periodically to prevent dust buildup and monitor its operation to detect any potential issues early.
Service and Guarantee Commitment
The Mitsubishi MR-S11-200-Z37 is backed by a comprehensive warranty, ensuring customer satisfaction and peace of mind. Mitsubishi Electric is committed to providing exceptional after-sales service, with a dedicated technical support team available to assist with any issues or inquiries.
