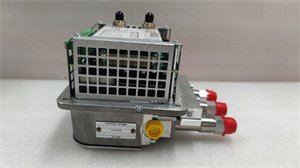

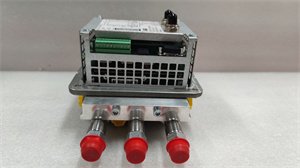

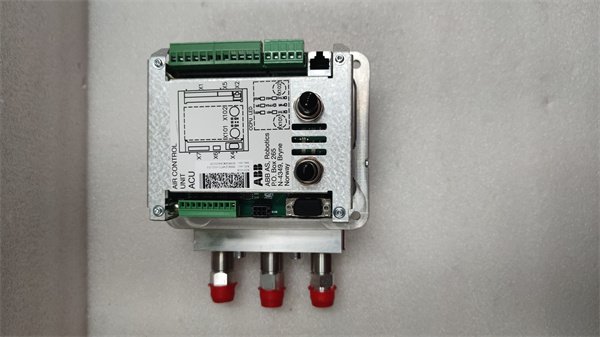

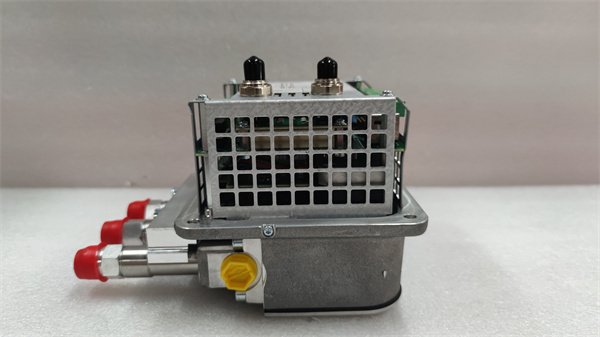

ABB ACU-01B 3HNA024871-001 sealed control unit
Manufacturer: ABB
Product Number: ACU-01B (3HNA024871-001)
Category: Sealed Control Unit
System Compatibility: ABB industrial robotics and automation systems, IRB 5400, IRB 580, IRB 5500 series spray painting robots
Function: Serves as the control interface for spray painting robot applications
Application: Industrial robotics requiring sealed control units for harsh environments
Product Description
ACU-01B 3HNA024871-001 is a high-performance sealed control unit designed for ABB’s industrial robotics and automation systems, specifically tailored for spray painting robots such as the IRB 5400, IRB 580, and IRB 5500 series. This module serves as a critical component in robotic systems, ensuring precise control of spray parameters and enabling seamless integration with ABB’s IRC5 controller platform.
Product Overview
The ACU-01B is engineered to manage complex spraying processes in industrial environments, offering advanced features for paint flow regulation, pressure control, and nozzle management. Its sealed design protects against dust, moisture, and chemical exposure, making it suitable for harsh manufacturing settings. This module is widely used in automotive, aerospace, and general industrial painting applications.
Key Technical Parameters
| Parameter | Specification |
|---|---|
| Voltage Input | 24 V DC ±10% |
| Current Consumption | ≤1.5 A |
| Communication Protocol | CANopen (default), MODBUS RTU (optional) |
| Control Channels | 8 analog outputs (0–10 V) for paint flow/pressure |
| Interface Types | M12 connectors for power and signals |
| Operating Temperature | -20°C to +60°C |
| Dimensions (W×H×D) | 160 mm × 140 mm × 210 mm |
| Weight | 3.66 kg |
Features and Advantages
- Precision Control: Supports closed-loop feedback for real-time adjustment of spray patterns and material flow rates.
- Sealed Design: IP67-rated enclosure ensures protection against contaminants in paint booths.
- Modular Architecture: Easy integration with ABB’s IRC5 robot controller and other peripheral devices.
- Safety Compliance: Compliant with ISO 10218-1/2 (robot safety standards) and CE marking.
- User-Friendly Setup: Configurable via ABB’s RobotStudio software for quick parameter adjustments.
Application Areas
- Automotive Industry: Used in car body painting lines to achieve uniform paint thickness and reduce overspray.
- Aerospace: Applies protective coatings on aircraft components with high precision.
- General Manufacturing: Integrates with robotic arms for consistent painting of metal parts, plastics, and composite materials.
Competitor Comparison
| Feature | ACU-01B 3HNA024871-001 | Competitor Models |
|---|---|---|
| Sealing Rating | IP67 | Typically IP54–IP65 |
| Analog Outputs | 8 channels | 4–6 channels |
| Protocol Flexibility | CANopen + MODBUS RTU | Limited to proprietary protocols |
| Weight | 3.66 kg | 4.5–5 kg |
Selection Recommendations
- Compatibility: Ensure compatibility with ABB’s IRC5 controller and robot models (e.g., IRB 5400/580/5500).
- Environment: Verify temperature and humidity conditions in the installation location.
- Budget: The ACU-01B offers a balance of performance and cost compared to higher-end modules.
Precautions
- Installation: Follow ABB’s wiring guidelines to avoid signal interference.
- Maintenance: Regularly inspect connectors for corrosion and replace seals every 12 months.
- Firmware Updates: Use ABB’s official tools to update firmware for new features and bug fixes.
Ordering Information
- Part Number: 3HNA024871-001
- Replacement Part: Supersedes 3HNA013719-001
- Stock Availability: Warehouses in Menden (Germany) and Shanghai (China)
- Minimum Order Quantity: 1 piece
Loading comments...
