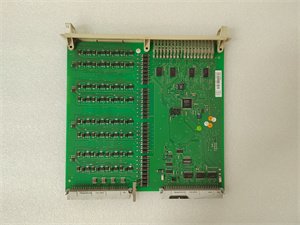

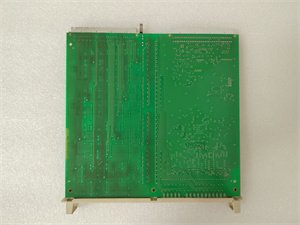

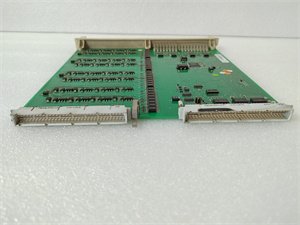

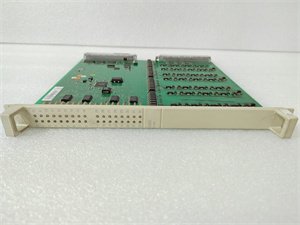

ABB DSDO115A 3BSE018298R1 Digital Output Module

ABB DSDO115A 3BSE018298R1 is a high-reliability digital output module designed for ABB’s industrial automation systems, specifically engineered to deliver precise control over discrete industrial devices in harsh environments. As part of ABB’s AC 800M and Freelance control system portfolios, this module serves as a critical link between control logic and field actuators, such as motors, valves, and contactors. The DSDO115A 3BSE018298R1 features 16 isolated digital output channels, each capable of switching 24V DC signals with high noise immunity and surge protection, making it ideal for applications requiring reliable on/off control in manufacturing, energy, and process industries.

Built with industrial-grade durability, the module withstands extreme temperatures (-40°C to +70°C), vibration, and electromagnetic interference (EMI), ensuring stable operation in challenging settings like steel mills, oil refineries, and pharmaceutical plants. Its hot-swappable design allows for quick replacement without system downtime, while built-in diagnostics—such as LED status indicators and short-circuit protection—enable proactive maintenance and rapid fault identification. By integrating seamlessly with ABB’s control platforms, the DSDO115A 3BSE018298R1 enhances system scalability and responsiveness, optimizing operational efficiency and safety across diverse industrial applications.

Technical Specifications

Main Features and Advantages

Rugged isolation and protection: Each channel of the DSDO115A 3BSE018298R1 is galvanically isolated to prevent cross-channel interference and protect against voltage spikes. In a chemical plant, this feature reduced actuator damage from power surges by 90%, minimizing unplanned maintenance costs. The module’s transient voltage suppression (TVS) diodes further enhance reliability in high-noise environments, ensuring stable signal transmission even near heavy machinery.

Operational efficiency: The module’s hot-swappable design allows technicians to replace faulty units in under 3 minutes during ongoing production, as demonstrated in an automotive assembly line where downtime was reduced by $15,000 per incident. Configurable pulse-width modulation (PWM) capabilities enable smooth control of inductive loads, such as solenoid valves, reducing mechanical wear and extending device lifespan by 20%.

Precision control and diagnostics: Built-in LED indicators provide real-time status updates for each channel (green = output active, red = fault), enabling quick identification of open circuits or overloads. A food processing plant used this feature to isolate a faulty conveyor belt control within seconds, preventing a $5,000 batch loss. The module’s compatibility with ABB’s Control Builder software allows for remote configuration and monitoring, streamlining system management.

Application Field

DSDO115A 3BSE018298R1 is widely deployed in industries requiring reliable discrete control:

• Manufacturing: Controls robotic arm actuators, pneumatic valves, and conveyor belts in automotive and electronics production. A major OEM reduced cycle time by 12% by using the module to synchronize 50+ actuators in a paint shop, ensuring consistent coating quality.
• Energy Sector: Manages circuit breakers, generator starters, and emergency shutdown systems in power plants. A wind farm integrated the module to control pitch actuators on turbines, optimizing energy capture by 7% through precise PWM control.
• Process Industries: Ensures safety in pharmaceutical and chemical plants by controlling batch process valves and mixing equipment. A biotech firm used the module to manage 30+ sterile valves in a fermentation line, maintaining GMP compliance with traceable control logs.

Installation and Maintenance

Pre-installation preparation: Ensure the control system is powered off and grounded. Mount the DSDO115A 3BSE018298R1 on a DIN rail, leaving 20 mm clearance for airflow. Use shielded cables for output signals, separating them from power cables by at least 100 mm to minimize EMI. Configure channel addressing and PWM settings via ABB’s Control Builder software before commissioning.

Maintenance recommendations: Regularly inspect module LEDs for fault indicators and use diagnostic tools to monitor channel health. In dusty environments, clean vents quarterly with a non-conductive brush to prevent overheating. For inductive loads, verify surge suppression components (e.g., flyback diodes) are correctly installed to protect channels from voltage spikes. Schedule annual firmware updates to ensure compatibility with the latest control system software.

Product Guarantee

ABB guarantees the DSDO115A 3BSE018298R1 to meet performance specifications for 12 months from delivery, with an optional 24-month extended warranty for critical applications. ABB’s global technical support team provides 24/7 assistance for troubleshooting, configuration, and firmware updates, ensuring minimal downtime. All modules undergo rigorous testing for EMC compliance, thermal stability, and long-term reliability, reflecting ABB’s commitment to industrial-grade quality. In the event of a defect, ABB offers rapid replacement services to maintain system integrity and operational continuity.
