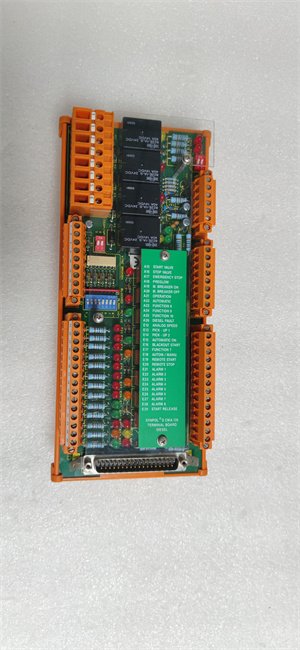

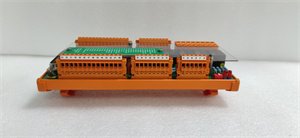

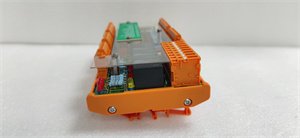

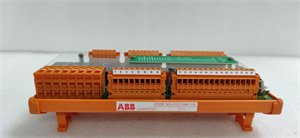

ABB CMA135 Diesel Start/Stop Automatic Control Module

The ABB CMA135 is a high-performance diesel start-stop automatic control module designed for seamless integration into industrial automation systems. It is engineered to optimize the performance of diesel engines by providing precise control over start and stop operations, ensuring reliable and efficient operation. The module is designed with advanced algorithms and robust hardware, making it suitable for a wide range of industrial applications, including power generation, oil and gas production, mining, and transportation.

Detailed Parameter Table

Core Advantages and Technical Highlights

High Reliability and Efficiency: The ABB CMA135 is built with high-quality components and advanced manufacturing techniques, ensuring reliable performance and long service life. It features rapid start-up (≤ 30 seconds) and shutdown (≤ 5 seconds) times, optimizing fuel usage and reducing operational costs.

Wide Operating Range: The module supports a wide range of power outputs (100 kW to 500 kW) and operating temperatures (-20°C to +85°C), making it suitable for various industrial environments.

Versatile Communication Options: The ABB CMA135 supports multiple communication protocols, including Modbus RTU and CANopen, enabling seamless integration with existing control systems.

Compact and Durable Design: The module has a compact size (100 mm x 60 mm x 30 mm) and lightweight construction (0.3 kg), making it easy to install and integrate into control panels. Its IP20 protection class ensures durability in harsh industrial conditions.

Advanced Diagnostics: The module includes diagnostic features that provide real-time status monitoring and quick fault identification, reducing maintenance costs and improving system reliability.

Typical Application Scenarios

The ABB CMA135 is widely used in various industrial sectors, including power generation, oil and gas production, mining, and transportation. In power plants, it is employed for generator control, ensuring smooth transitions and optimal load management. In industrial automation, it serves as a key component for signal transmission, control signal output, data acquisition, and fault diagnosis. The module’s ability to operate in a wide temperature range and its compact design make it suitable for both indoor and outdoor applications.

Installation Commissioning and Maintenance Instructions

Installation Preparation

Before installing the ABB CMA135, ensure that the environment meets the specified requirements, including an operating temperature range of -20°C to +85°C. The installation location should be free from excessive dust, moisture, and corrosive gases to ensure long-term reliability. Use a standard DIN rail or panel mount for secure installation.

Maintenance Suggestions

To maintain the ABB CMA135, perform regular inspections of the module and its connections to ensure they are secure and free from corrosion. Clean the unit regularly with a soft, dry cloth to remove dust and debris. If any issues arise, refer to the troubleshooting guide in the user manual for common solutions. Replace any worn or damaged parts promptly to ensure continued performance. Regularly update the firmware to benefit from the latest enhancements and security features. By following these maintenance tips, you can ensure the long-term reliability and optimal performance of the ABB CMA135.

Service and Guarantee Commitment

The ABB CMA135 is backed by ABB’s commitment to quality and customer satisfaction. ABB offers a comprehensive warranty that covers manufacturing defects and ensures the product meets the highest standards of reliability. In addition to the warranty, ABB provides extensive after-sales support, including technical assistance and spare parts availability. This commitment ensures that customers receive reliable and efficient support throughout the product’s lifecycle, giving them confidence in their investment.
