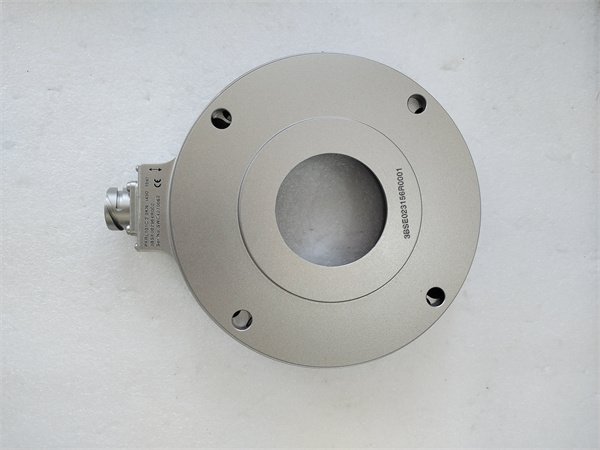

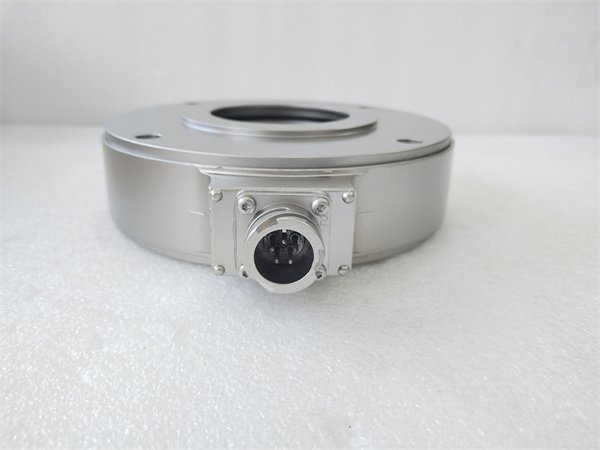

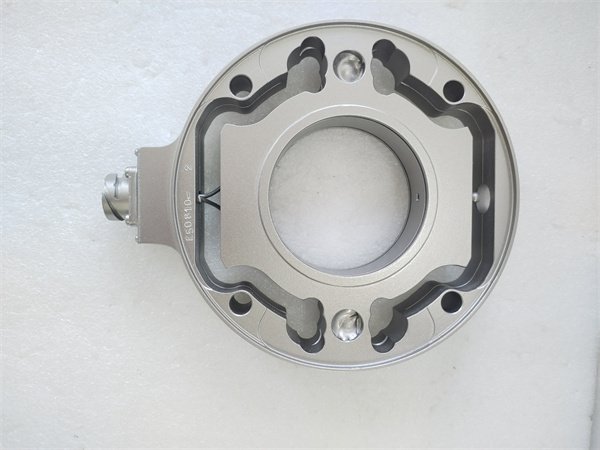

ABB PFRL101C 2.0KN 3BSE002964R002 Load cell / force sensor

The ABB PFRL101C 2.0KN 3BSE002964R002 is a high-precision load cell designed for industrial force measurement applications, part of ABB’s PF series of force sensors renowned for reliability in harsh environments. This sensor converts mechanical force into accurate electrical signals, enabling precise monitoring and control of tension, compression, or weight in critical industrial processes.

ABB PFRL101C 2.0KN 3BSE002964R002 features a 2.0 kN measurement range and 0.1 accuracy class, making it suitable for applications requiring tight tolerance control—from material testing to automated assembly. Its stainless steel construction and IP67 protection ensure durability in wet, dusty, or corrosive environments, such as food processing, chemical plants, or outdoor installations. As a key component in quality control and process optimization systems, ABB PFRL101C 2.0KN 3BSE002964R002 provides reliable data to prevent overloading, ensure product consistency, and enhance operational safety.

Detailed parameter table

Core advantages and technical highlights

Exceptional measurement precision: ABB PFRL101C 2.0KN 3BSE002964R002 achieves 0.1 accuracy class with non-linearity of ≤±0.05% of full scale, ensuring consistent and reliable force readings even in dynamic applications. This precision is critical for processes like torque testing, material fatigue analysis, or dosage control in pharmaceutical manufacturing.

Industrial-grade durability: Constructed from 316L stainless steel, ABB PFRL101C 2.0KN 3BSE002964R002 resists corrosion, chemical exposure, and mechanical stress. Its IP67 rating protects against dust ingress and temporary water immersion (up to 1 meter for 30 minutes), making it suitable for washdown environments in food and beverage production.

Flexible output options: Unlike fixed-output load cells, ABB PFRL101C 2.0KN 3BSE002964R002 offers configurable outputs (4-20 mA or mV/V), allowing seamless integration with PLCs, DCS systems, or standalone indicators. This versatility eliminates the need for signal converters, simplifying system design and reducing installation costs.

Wide temperature stability: ABB PFRL101C 2.0KN 3BSE002964R002 maintains accuracy across a broad temperature range (-30°C to +80°C) with minimal thermal drift (≤±0.002% of full scale per °C). This stability ensures reliable performance in extreme environments, such as cold storage facilities or high-temperature industrial ovens.

Typical application scenarios

In automotive assembly lines, ABB PFRL101C 2.0KN 3BSE002964R002 monitors the clamping force of robotic welders, ensuring consistent pressure during spot welding to prevent weak joints or component damage. Its fast response time captures dynamic force changes during the welding cycle, providing real-time feedback to the robot controller for immediate adjustments.

Within food processing plants, ABB PFRL101C 2.0KN 3BSE002964R002 measures the filling weight of packaged products on conveyor lines. Its stainless steel construction and IP67 rating withstand daily washdowns with caustic cleaners, while its high accuracy ensures compliance with weight regulations, reducing product giveaway and ensuring label accuracy.

In material testing laboratories, ABB PFRL101C 2.0KN 3BSE002964R002 quantifies the tensile strength and elasticity of materials like plastics, textiles, or metals. Its 0.1 accuracy class meets international testing standards, providing data that manufacturers use to validate product quality and material performance.

Installation, commissioning and maintenance instructions

Installation preparation: Before installing ABB PFRL101C 2.0KN 3BSE002964R002, ensure the mounting surface is flat, rigid, and free from vibration to avoid measurement errors. Required tools include a torque wrench (set to 25 Nm for M12 bolts), thread locker (Loctite 243), and a multimeter for signal verification. Use shielded twisted-pair cables (min 0.5 mm²) to connect the sensor, routing them away from power cables to minimize EMI. Verify that the excitation voltage matches the sensor’s 10-30 V DC rating and that the cable length does not exceed 100 meters (328 ft) to prevent signal degradation.

Maintenance suggestions: For ABB PFRL101C 2.0KN 3BSE002964R002, perform quarterly visual inspections to check for physical damage, corrosion, or loose mounting bolts. Clean the sensor surface with a soft cloth and mild detergent—avoid abrasive cleaners that could damage the stainless steel. Calibrate the sensor annually using a certified calibration rig to maintain 0.1 accuracy class, particularly in regulated industries like aerospace or pharmaceuticals. If output drift is detected, check for cable damage or moisture ingress before replacing the sensor. Store spare ABB PFRL101C 2.0KN 3BSE002964R002 units in their original packaging in a dry environment (15°C to 30°C) to prevent corrosion.
