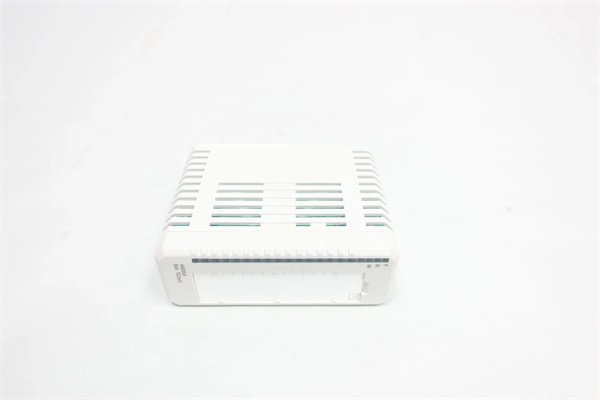

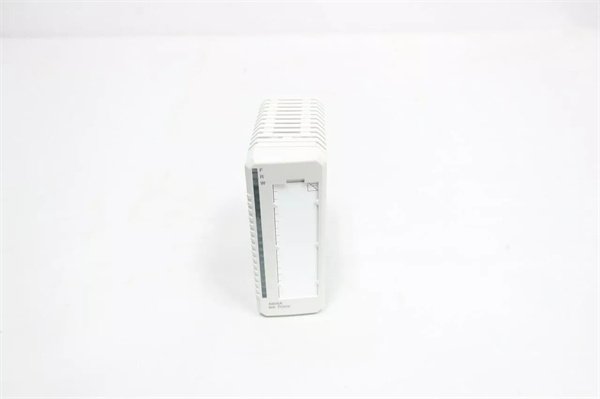

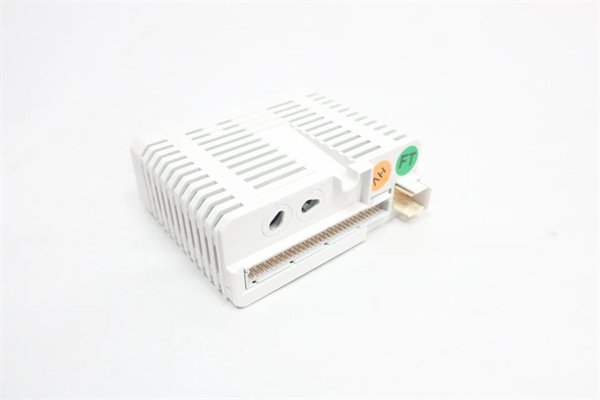

ABB AI835A Analog Input Module

The ABB AI835A is a high-precision analog input module designed for industrial automation systems, specifically tailored for temperature and voltage signal acquisition. It supports a wide range of thermocouple types, including B, C, E, J, K, N, R, S, T, D, L, and U, as well as millivolt signals ranging from -30 mV to +75 mV. This module is part of the ABB S800 I/O system and is compatible with various ABB and third-party control systems. With a 15-bit resolution and configurable cold junction compensation, the AI835A ensures accurate and reliable temperature measurements in demanding industrial environments.

Detailed Parameter Table

Core Advantages and Technical Highlights

High Precision and Versatility: The ABB AI835A offers high-precision measurement with a 15-bit resolution, ensuring accurate data acquisition for temperature and voltage signals. It supports multiple thermocouple types, making it suitable for various industrial applications.

Robust Design: The module is designed for industrial environments, with an operating temperature range of -25°C to +85°C and a storage temperature range of -40°C to +70°C. Its IP30 protection rating ensures protection against dust and non-condensing moisture.

Advanced Diagnostics: The AI835A features channel 8 configurable as a cold junction temperature measurement, enhancing system reliability and accuracy. Each channel can be individually configured, providing flexibility for different measurement requirements.

Easy Integration: The ABB AI835A integrates seamlessly with ABB’s S800 I/O system and supports Modbus RTU communication protocol, facilitating integration into existing automation systems. It is compatible with various Module Termination Units (e.g., TU810, TU812, TU814, TU818, TU830, TU833) for optimal performance.

Typical Application Scenarios

The ABB AI835A is widely used in industries where precise temperature measurement is critical. In manufacturing plants, it monitors process temperatures to ensure product quality and process efficiency. In HVAC systems, the module measures ambient and equipment temperatures for optimal climate control. In chemical processing facilities, it provides accurate temperature data for reaction control and safety monitoring. The ABB AI835A is an ideal solution for applications requiring high precision, fast data processing, and reliable performance.

Installation Commissioning and Maintenance Instructions

Installation Preparation: Before installing the ABB AI835A, ensure the environment meets the specified temperature and humidity requirements (-25°C to +85°C, 5% to 95% RH non-condensing). Use shielded cables and proper grounding to minimize electromagnetic interference. Follow ABB’s guidelines for DIN rail mounting, ensuring proper ventilation and protection from dust.

Maintenance Suggestions: Regularly inspect connections for wear and clean the module with a static-free cloth to ensure optimal heat dissipation. Use ABB’s dedicated software for module configuration and firmware updates. Follow ABB’s guidelines for handling sensitive components, including anti-static measures during maintenance.
