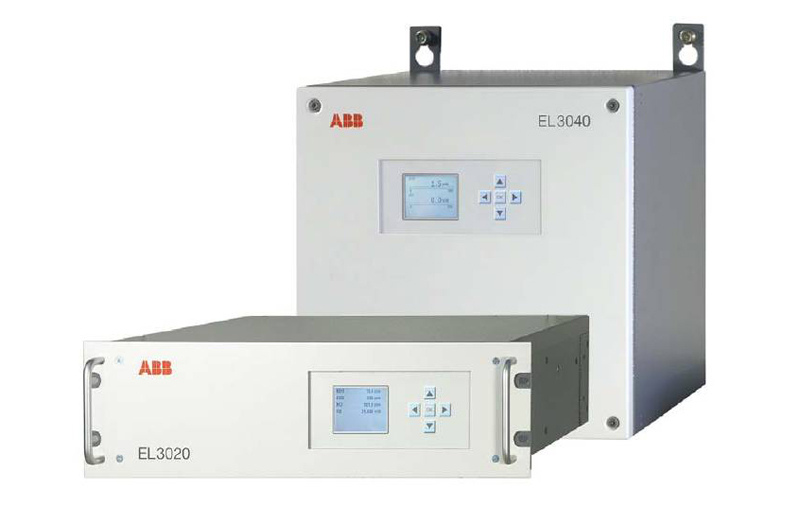

ABB EL3040 GAS ANALYZER PANEL Technical Specifications
ABB EL3040 GAS ANALYZER PANEL Technical Specifications (100-240VAC, 50-60Hz)
General Overview
The ABB EL3040 Gas Analyzer Panel is a compact, modular system designed for continuous monitoring of gas composition in industrial processes. It supports a wide range of applications, including emissions control, combustion efficiency, and process safety. The panel operates on a universal power supply (100-240VAC, 50-60Hz), making it suitable for global installations.
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Power Supply | 100-240VAC ±10%, 50-60Hz (auto-ranging) |
| Power Consumption | ≤ 150VA (typical, depending on configuration) |
| Operating Temperature | -10°C to +50°C (14°F to 122°F) |
| Storage Temperature | -20°C to +60°C (-4°F to 140°F) |
| Humidity Range | 5% to 95% RH (non-condensing) |
| Enclosure Rating | IP54 (NEMA 3R) – weatherproof for indoor/outdoor use |
| Display | 4.3″ TFT color touchscreen with intuitive HMI |
| Communication Interfaces |
– 2x RS485 (Modbus RTU/TCP)
– 1x Ethernet (TCP/IP, HTTP, FTP) – 4-20mA analog outputs (configurable) – Relay outputs (alarm/status) |
| Gas Analysis Technology |
– NDIR (Non-Dispersive Infrared) for CO, CO₂, NO, SO₂
– Electrochemical (O₂) – Thermal Conductivity (H₂, CH₄) – Optional: PID for VOCs |
| Measurement Range |
– CO: 0-1000 ppm
– CO₂: 0-20% vol. – O₂: 0-25% vol. – NO: 0-500 ppm – SO₂: 0-1000 ppm (custom ranges available) |
| Accuracy | ±1% of reading or ±0.5% FS (whichever is greater) |
| Response Time (T90) | ≤ 30 seconds (depending on gas and configuration) |
| Calibration | Automatic or manual (zero/span) with optional auto-calibration module |
| Approvals & Certifications | CE, UL, ATEX (Zone 2/22), IECEx (for hazardous areas) |
Features & Benefits
- Modular Design – Supports up to 4 gas sensors in a single panel, configurable for different gases.
- Multi-Language HMI – Intuitive touchscreen interface with support for English, German, French, Spanish, and Chinese.
- Remote Access – Web server for real-time monitoring, data logging, and firmware updates.
- Alarm Management – Configurable high/low alarms with relay outputs and email/SMS notifications.
- Data Logging – Built-in memory for 10,000+ data points, exportable via USB or network.
- Rugged Construction – Stainless steel enclosure for harsh industrial environments.
Applications
- Emissions Monitoring (CEMS compliance)
- Combustion Optimization (boilers, furnaces, turbines)
- Process Control (chemical, petrochemical, refining)
- Safety Monitoring (toxic/flammable gas detection)
- Greenhouse Gas (GHG) Reporting (CO₂, CH₄)
Dimensions & Weight
- Panel Dimensions (W x H x D): 483mm x 350mm x 180mm (19″ rack-mountable)
- Weight: ~15 kg (33 lbs)
Warranty & Support
- Standard Warranty: 2 years (extendable up to 5 years)
- Global Service Network: ABB-certified technicians for installation, commissioning, and maintenance.
Conclusion
The ABB EL3040 Gas Analyzer Panel is a reliable, flexible solution for industrial gas analysis, offering high accuracy, robust construction, and advanced connectivity. Its universal power supply and modular design make it suitable for a wide range of applications worldwide.
For further details, refer to the ABB EL3040 Product Manual or contact your local ABB representative.
ABB EL3040
The ABB EL3040 is a digital input module designed for industrial automation systems. It ensures reliable and efficient signal processing, enabling precise monitoring and control of digital signals in various automation applications
