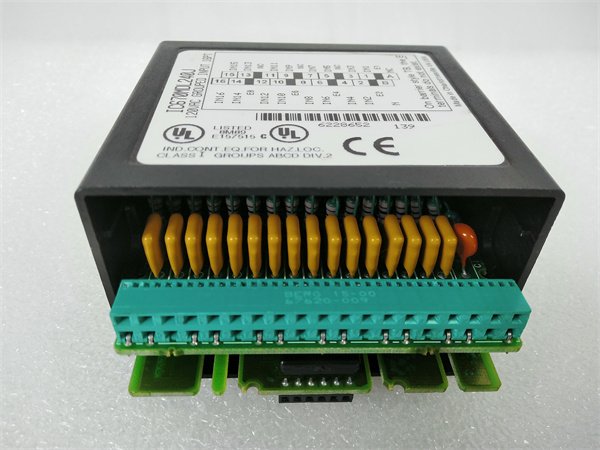

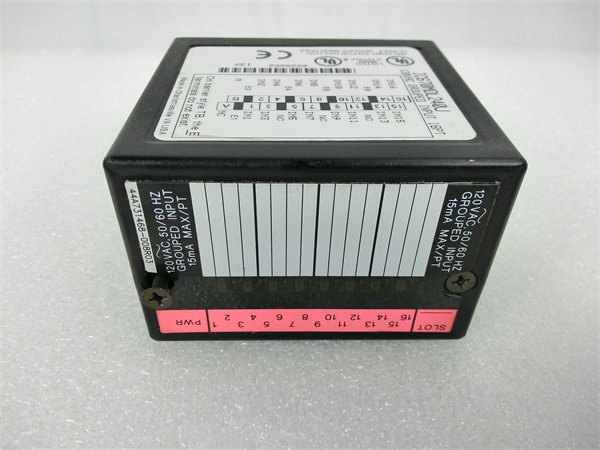

General Electric IC670MDL240J Digital Input Module

The GE IC670MDL240J is a high – performance digital input module that plays a crucial role in industrial automation systems. As part of GE’s esteemed field control series, this module is designed to provide reliable data acquisition and control solutions across a wide range of industries. With the IC670MDL240J, industries can enhance the efficiency and accuracy of their operations. It serves as an essential component for integrating various sensors and devices into the overall control framework, enabling seamless communication and coordination within the automation setup.

Technical Specifications

High Channel Count: The GE IC670MDL240J comes equipped with 16 input channels, allowing for the connection of multiple sensors and devices simultaneously. This high channel count is beneficial for complex industrial applications where numerous digital signals need to be monitored and processed.

Wide Input Voltage Range: With an input voltage range of 0 – 132 VAC, the module can accommodate a variety of input signals. This makes it highly versatile and suitable for use in different industrial environments where the voltage levels of input devices may vary.

Fast Response Times: The module offers fast on – state response times of 12 ms (typical) and 20 ms (max), and off – state response times of 25 ms (typical) and 40 ms (max). These quick response times ensure that changes in input signals are detected and processed in a timely manner, contributing to the overall responsiveness of the automation system.

Reliable Performance: Designed with advanced technology, the IC670MDL240J delivers dependable operation even under harsh industrial conditions. It can withstand temperature variations, electrical noise, and mechanical stress, ensuring consistent performance over time.

LED Status Indicators: Each input channel has its own LED status indicator, which makes it easy to visually monitor the logic 0 and logic 1 states of the input signals. This simplifies troubleshooting and maintenance, as operators can quickly identify any issues with the input channels.

Industrial Automation: In manufacturing plants, the GE IC670MDL240J is used to interface with various sensors such as proximity sensors, limit switches, and push buttons. It enables the automation system to monitor the status of equipment, detect faults, and trigger appropriate actions. For example, in a conveyor belt system, the module can receive signals from sensors that detect the presence of objects, ensuring smooth operation and preventing jams.

Power Generation: In power plants, the module is used to monitor the status of switches, relays, and other electrical components. It helps in ensuring the safe and efficient operation of power generation equipment. For instance, it can detect when a circuit breaker has tripped or when a generator’s cooling system has a fault, allowing for prompt corrective measures.

Oil and Gas Industry: In oil refineries and gas processing plants, the IC670MDL240J is employed to interface with sensors that monitor pressure, temperature, and flow rates. It plays a crucial role in maintaining the integrity of the production process by providing real – time data on the status of various equipment and processes.

Installation and Maintenance

Pre – installation preparation: Before installing the GE IC670MDL240J, ensure that the power to the control system is turned off to avoid electrical hazards. Check the module for any visible signs of damage during transit. Verify that the installation location meets the environmental requirements, such as temperature and humidity. Ensure that the DIN – rail, where the module will be mounted, is clean and free from debris. Also, make sure that the wiring connections are properly planned and that the wires are of appropriate gauge to handle the current.

Maintenance recommendations: Regularly inspect the module for any signs of overheating, such as discoloration or unusual warmth. Check the LED status indicators to ensure that they are functioning correctly and that the input signals are being accurately detected. Periodically clean the module to remove dust and dirt, as these can affect its performance. If any issues are detected, refer to the product manual for troubleshooting steps. Also, keep spare modules on hand to minimize downtime in case of a module failure.

Product Guarantee

GE stands firmly behind the quality of the IC670MDL240J. The module undergoes rigorous quality control procedures during manufacturing to meet high – industry standards. In case of any manufacturing defects, GE provides a comprehensive warranty. Their global network of technical support teams is available to assist customers. Whether it’s providing guidance on installation, helping with troubleshooting complex issues, or offering advice on maintenance, GE’s experts are dedicated to ensuring the long – term reliable operation of the IC670MDL240J, reflecting their commitment to customer satisfaction and product excellence.
