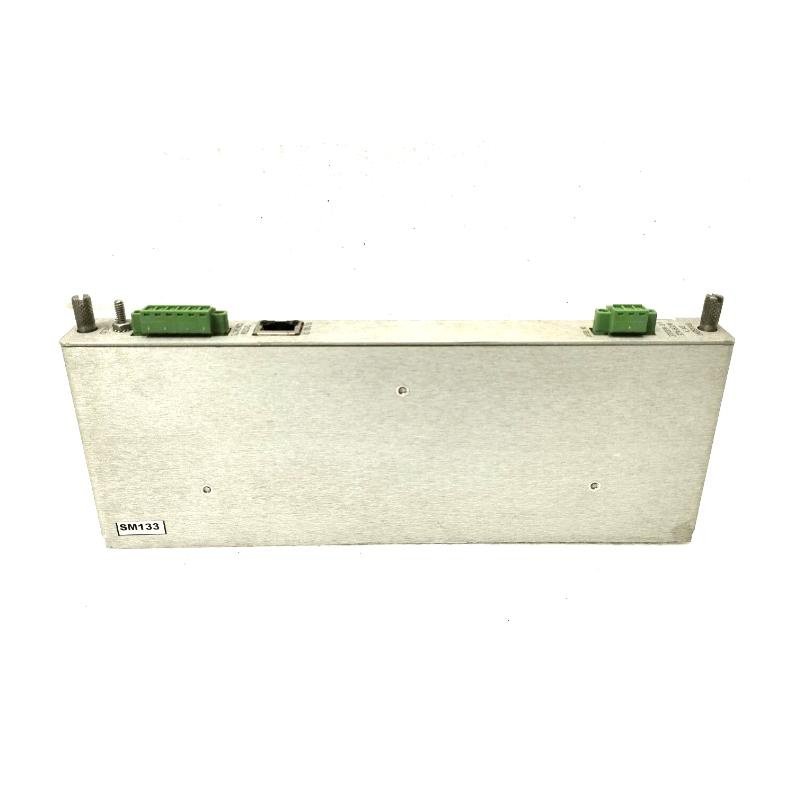

Bently Nevada 3500/22 146031-01 transducer interface module
Manufacturer: Bently Nevada
Product Number: 3500/22 (146031-01)
Category: Transducer Interface Module
Series: 3500 Machinery Protection System
Application: Rotating machinery condition monitoring and protection
Function: Provides signal conditioning for proximity and vibration sensors delivering precise measurements
Product Description
The Bently Nevada 3500/22 146031-01 is a high-performance transducer interface module designed for rotating machinery condition monitoring and protection. It provides signal conditioning for proximity and vibration sensors, delivering precise analog outputs to the 3500 Series Rack System. This module ensures reliable, real-time monitoring of machinery health, supporting early fault detection and reducing the risk of unplanned downtime in industrial environments.
Main Features
Single-channel transducer interface with high precision signal conditioning
Supports AC and DC coupled sensors for vibration and displacement measurements
Hot-swappable design for maintenance without shutting down machinery
Self-diagnostic monitoring with LED status indicators for module health
Rugged industrial construction for high vibration and temperature environments
Seamless integration with 3500 Series Rack and System 1 software for advanced analysis
Technical Specifications
Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 241.3 × 24.4 × 99.1 mm |
| Weight | 0.2 kg |
General Information
| Item | Specification |
|---|---|
| Manufacturer | Bently Nevada (GE Measurement & Control) |
| Model Number | 3500/22 146031-01 |
| Product Type | Transducer Interface Module |
| Mounting | 3500 Series Rack Slot |
| Operating Temp. | 0°C to +60°C |
| Storage Temp. | -40°C to +85°C |
Electrical Characteristics
| Item | Specification |
|---|---|
| Input Channels | 1 |
| Supported Sensors | Proximity probes, velocity sensors, accelerometers |
| Output Type | Conditioned analog signal |
| Power Supply | Supplied via 3500 Series Rack backplane |
| Module Revision | 146031-01 |
Environmental Specifications
| Item | Specification |
|---|---|
| Humidity Range | 5–95% RH (non-condensing) |
| Vibration | 5–2000 Hz, 0.7 g |
| Shock Resistance | 30 g, 11 ms half-sine |
| Protection Class | IP20 (when installed in rack) |
Industry Applications
The Bently Nevada 3500/22 146031-01 is widely used in:
Oil & Gas: Monitoring turbines, compressors, and pumps
Power Generation: Vibration and displacement monitoring of steam and gas turbines
Chemical & Petrochemical: Protection of critical rotating machinery
Mining & Metals: Monitoring motors and gearboxes for early fault detection
Pulp & Paper: Ensuring reliable operation of high-speed rotating equipment
