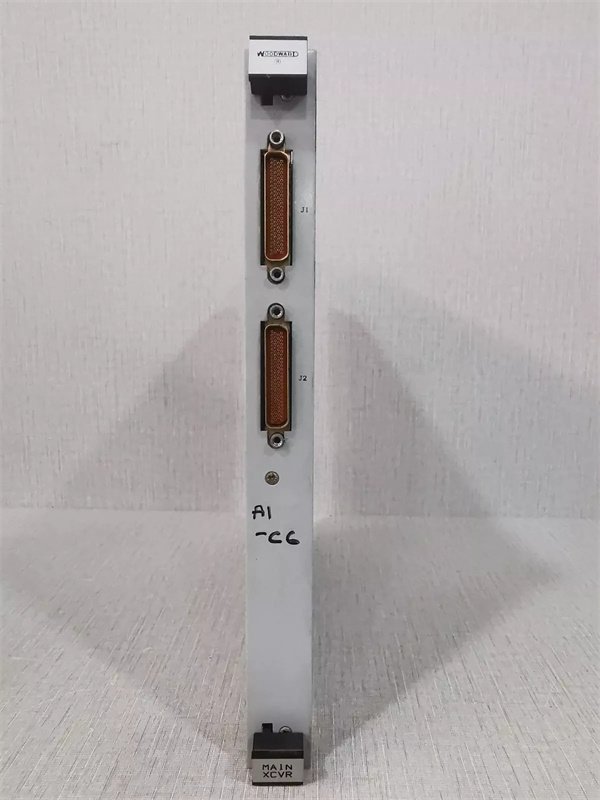

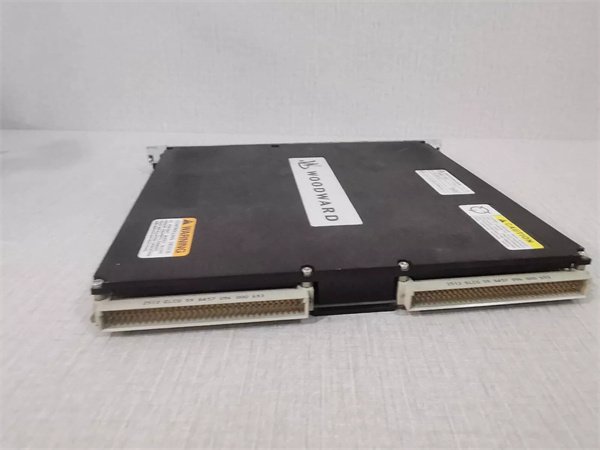

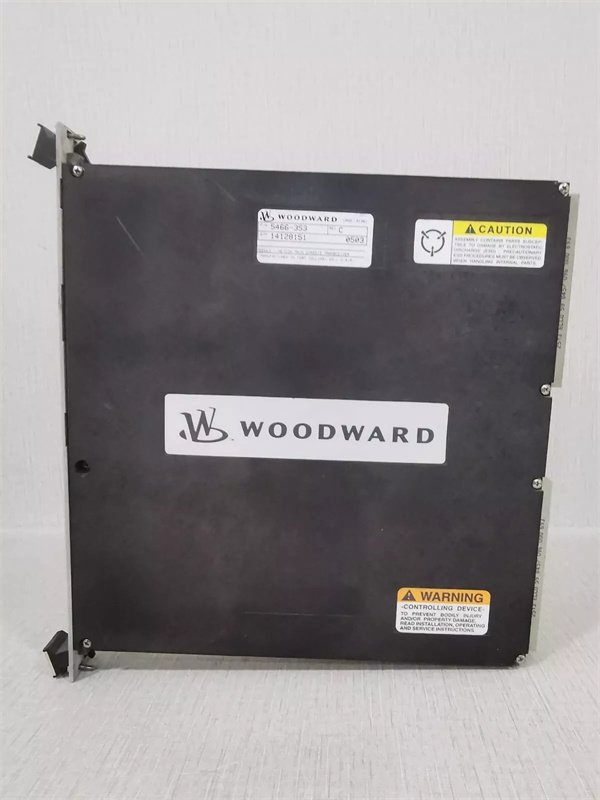

Woodward 5466-353 Transceiver Module

The Woodward 5466-353 is a high-performance transceiver module designed for industrial control systems, particularly in turbine and power generation applications. As part of Woodward’s NetCon series, the 5466-353 enables seamless high-speed data transmission across networks, ensuring reliable communication between system components. It supports protocols like CANopen and Modbus, making it compatible with a wide range of industrial automation setups. The module is engineered for rugged environments, with a robust design that withstands extreme temperatures, vibrations, and chemical exposure. Its modular architecture allows for easy integration and scalability, making it ideal for upgrading existing systems or building new ones.

Technical Parameters

Advantages and Features

• High-Speed Data Transmission: The 5466-353 supports data rates up to 1 Mbit/s, minimizing latency for real-time control applications.
• Modular Expansion: It can accommodate up to 8 I/O modules, enhancing system flexibility and adaptability to changing requirements.
• Rugged Design: Encapsulated housing and wide temperature range (-40°C to +85°C) ensure reliable operation in harsh industrial environments.
• Power Distribution: Integrates power supply management for connected modules, reducing cabling complexity.
• Advanced Security: Built-in data encryption safeguards sensitive information from unauthorized access.

Application Areas and Use Cases

• Energy Sector: Used in steam and gas turbine control systems to monitor and adjust rotational speeds, ensuring stable power generation.
• Manufacturing: Optimizes conveyor systems and machinery by synchronizing control signals across distributed networks.
• Oil and Gas: Deployed in compressor stations to manage load balancing and prevent operational downtime.
• Water Treatment: Coordinates pumps and valves in water distribution systems for efficient resource management.

Example Use Case: A thermal power plant integrated the Woodward 5466-353 to synchronize turbine speed control with grid demands. The module’s high-speed data processing reduced response time by 30%, improving energy output consistency.

Competitor Comparison

Compared to similar modules, the 5466-353 offers superior thermal stability and a broader temperature range, making it suitable for extreme climates. Its modular expansion capacity exceeds many alternatives, allowing users to scale systems without replacing core infrastructure. Additionally, its dual-protocol support (CANopen and Modbus) simplifies integration with both legacy and modern industrial networks.

Selection Recommendations

• Compatibility: Verify protocol support (e.g., CANopen) with existing controllers (e.g., Woodward 505 series).
• Environment: Ensure the module’s temperature and vibration ratings match site conditions.
• Scalability: If future expansion is planned, prioritize modules with higher I/O capacity (e.g., 5466-353 supports up to 8 modules).
• Budget: Balance performance requirements with cost; the 5466-353 offers competitive pricing for its advanced features.

Precautions

• Power Supply: Use a stable 24 VDC source with surge protection to avoid damage.
• Installation: Follow DIN rail mounting guidelines to ensure proper heat dissipation.
• Maintenance: Regularly inspect connections and clean dust or debris to prevent signal interference.
• Firmware Updates: Keep the module’s firmware current to access the latest security and performance enhancements.
