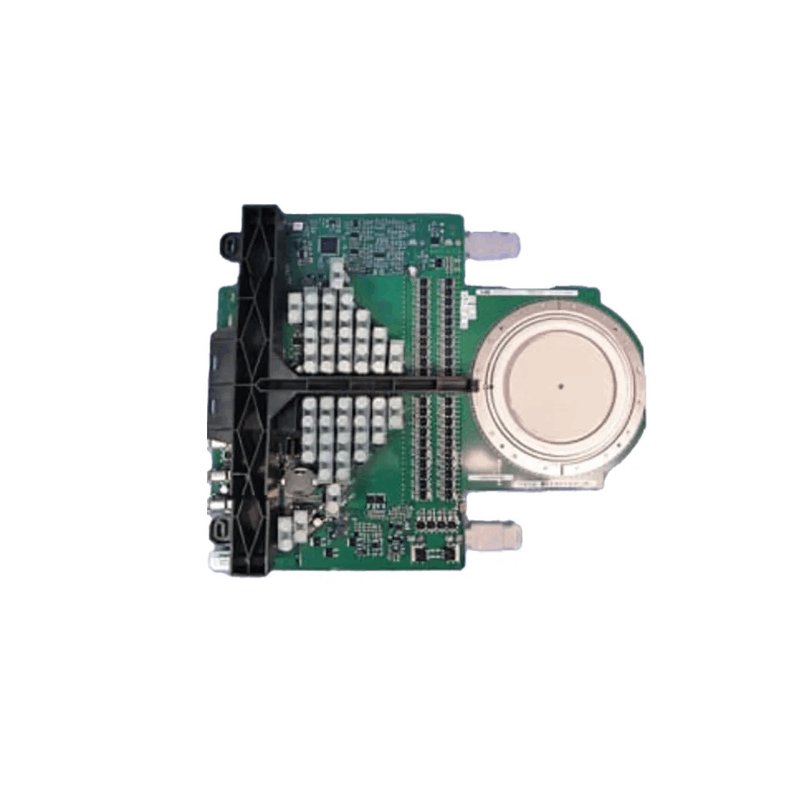

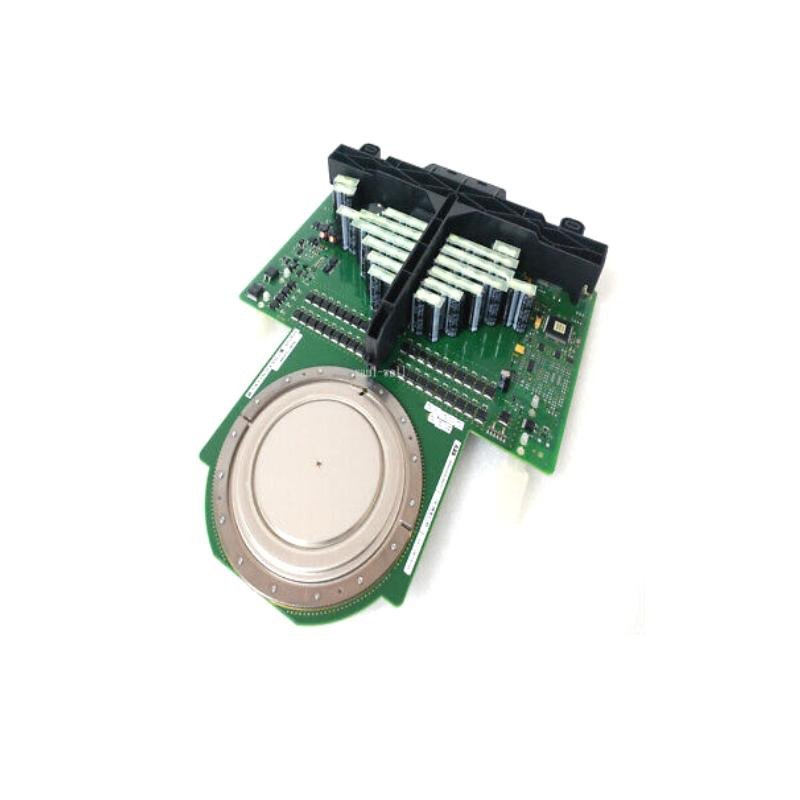

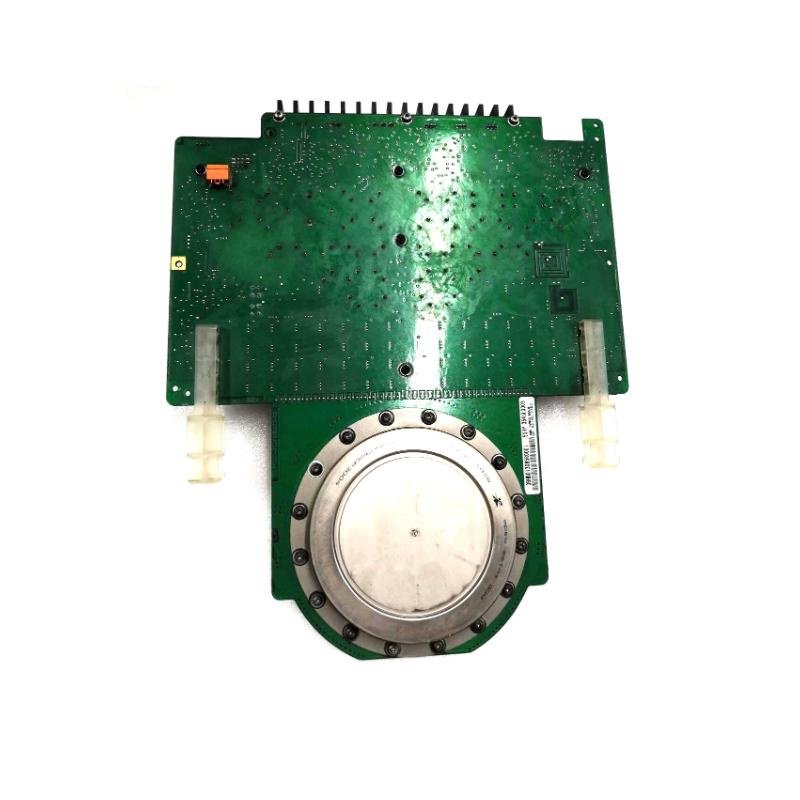

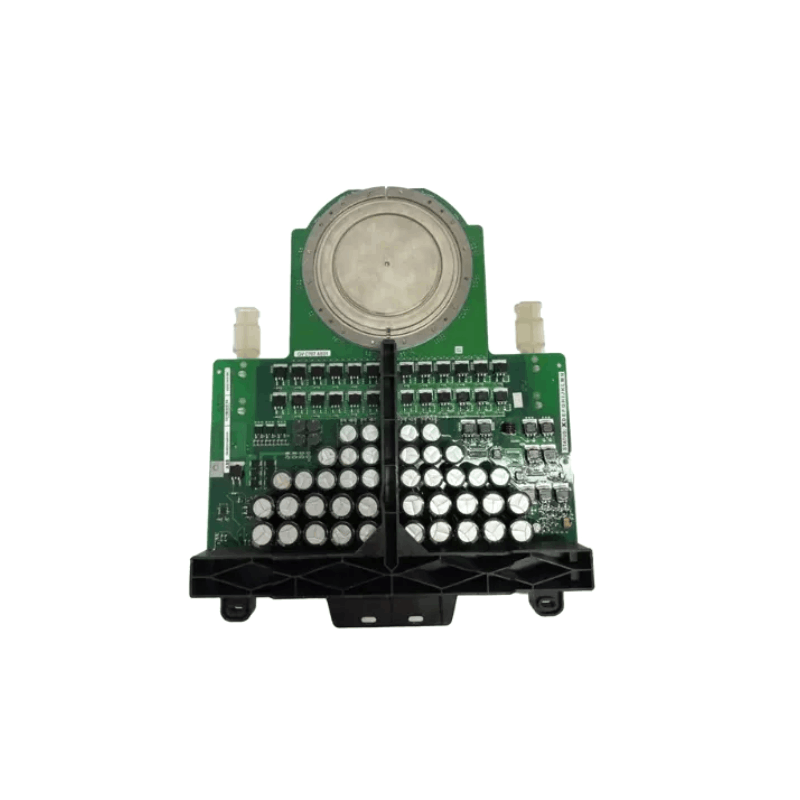

ABB 5SHY4045L0006 3BHB030310R0001 IGCT Module
Manufacturer: ABB
Product Number: 5SHY4045L0006 (3BHB030310R0001)
Category: Integrated Gate-Commutated Thyristor (IGCT) Module
Application: Demanding industrial and energy conversion systems requiring high power handling and low switching losses
Product Description
The ABB 5SHY4045L0006 (model 3BHB030310R0001) is a high-power Integrated Gate-Commutated Thyristor (IGCT) module engineered for demanding industrial and energy conversion systems. Designed to deliver outstanding current capacity, low switching losses, and robust thermal stability, this device combines the advantages of traditional thyristors and modern IGBTs, ensuring reliable performance in medium- and high-voltage power applications. Its rugged construction and efficient thermal management make it a trusted choice for continuous heavy-duty operations.
Main Features
• High voltage and current rating for advanced power conversion systems
• Fast turn-off capability ensuring safe and stable operation in dynamic load conditions
• Low conduction and switching losses improving overall energy efficiency
• Optimized thermal design with enhanced heat dissipation capability
• Compact and durable mechanical structure suited for industrial environments
• Proven ABB IGCT technology providing long-term operational reliability
Technical Specifications
Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 165 mm × 140 mm × 38 mm |
| Weight | 2.0 kg |
General Information
| Item | Specification |
|---|---|
| Manufacturer | ABB |
| Model Number | 5SHY4045L0006 / 3BHB030310R0001 |
| Product Type | IGCT Semiconductor Module |
| Device Type | Integrated Gate-Commutated Thyristor |
| Mounting | Baseplate, screw-mounted |
| Cooling Method | Conduction cooling with heat sink |
Electrical Characteristics
| Item | Specification |
|---|---|
| Repetitive Peak Voltage (V_RRM) | 4500 V |
| RMS On-State Current (I_T(RMS)) | 4045 A |
| Surge Current (I_TSM) | 45 kA (10 ms) |
| On-State Voltage Drop (V_T) | 2.2 V at rated current |
| Gate Trigger Current (I_GT) | 1.5 A |
| Turn-Off Time (t_q) | < 25 μs |
Thermal and Environmental Specifications
| Item | Specification |
|---|---|
| Junction Temperature Range | -40 °C to +125 °C |
| Storage Temperature | -40 °C to +125 °C |
| Thermal Resistance (junction to case) | 0.012 K/W |
| Isolation Voltage (RMS, 1 min) | 4.0 kV |
| Protection Class | IP20 |
Industry Applications
The ABB 5SHY4045L0006 (3BHB030310R0001) is widely used in critical industrial and energy applications, such as:
• Medium and High Voltage Drives–precise motor control in heavy industries
• Power Generation–generator excitation and turbine regulation systems
• HVDC Systems–efficient high-voltage power transmission networks
• Renewable Energy–wind, solar, and energy storage converters
• Metals and Mining–rectifiers and high-current converters for smelting and rolling operations
• Transportation–propulsion and braking in advanced traction systems
