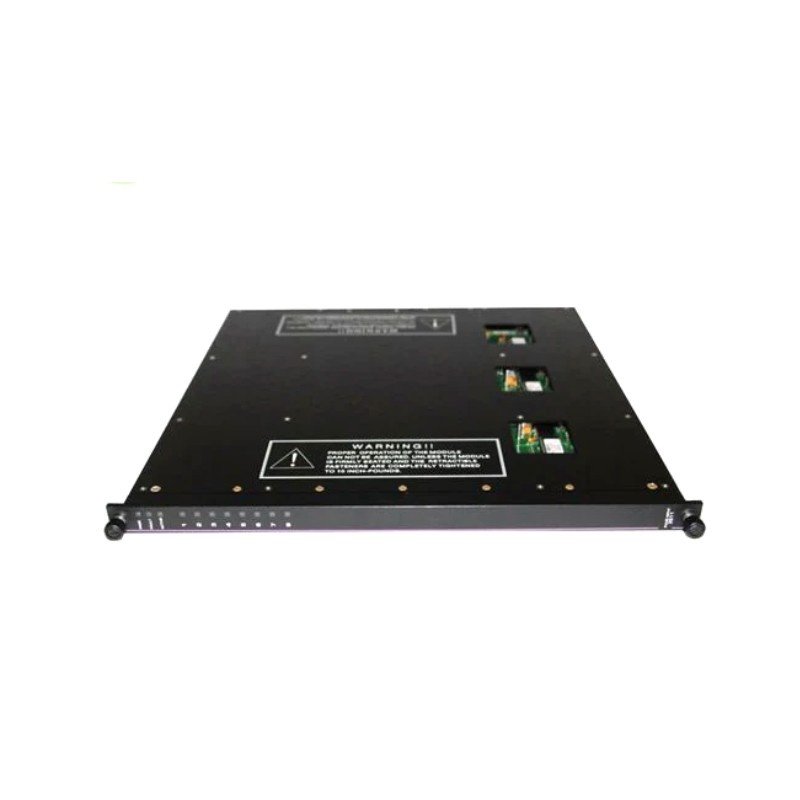

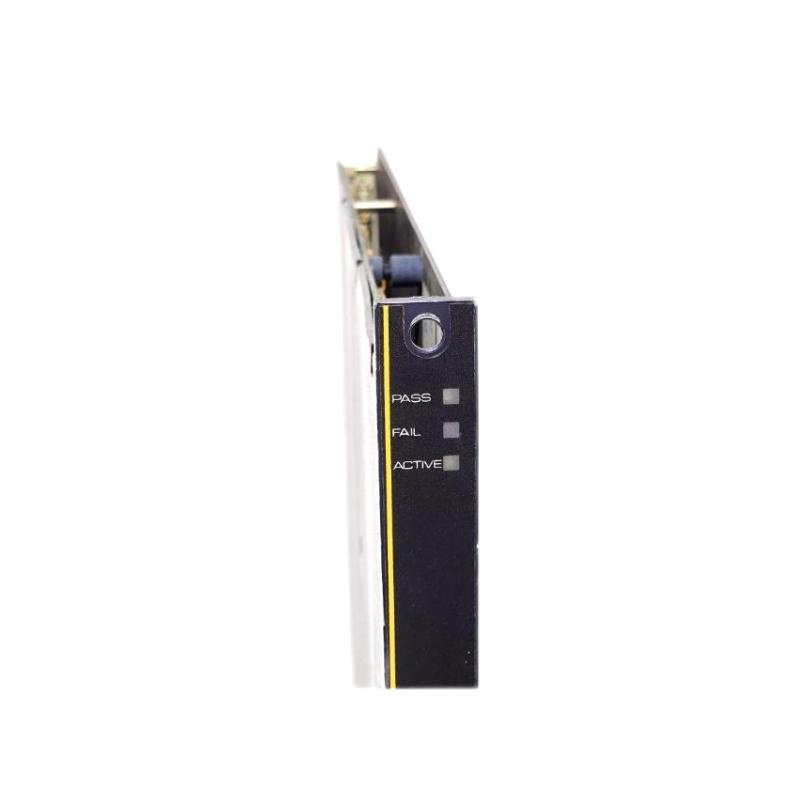

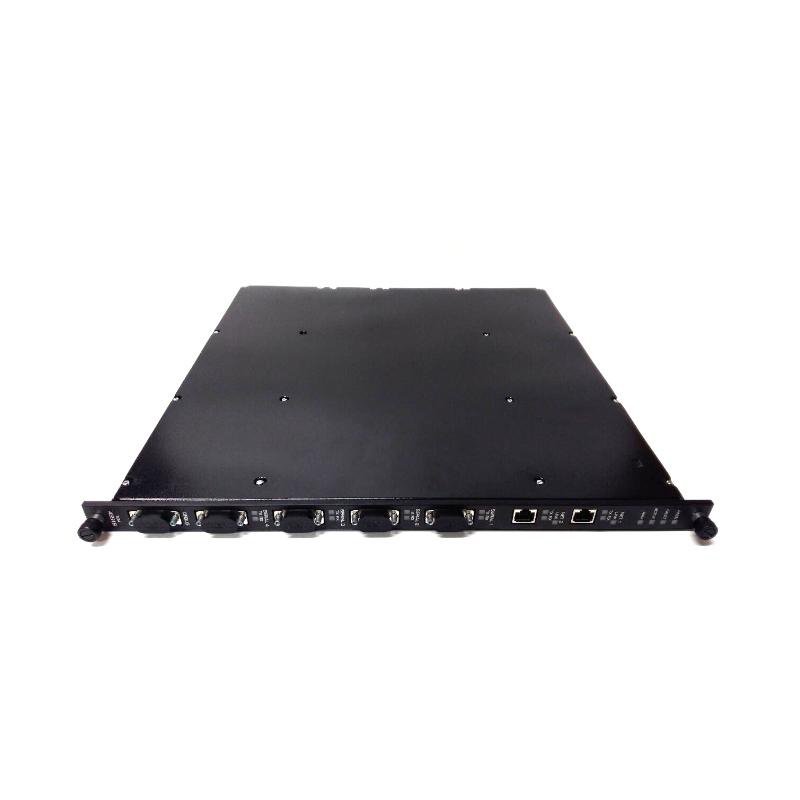

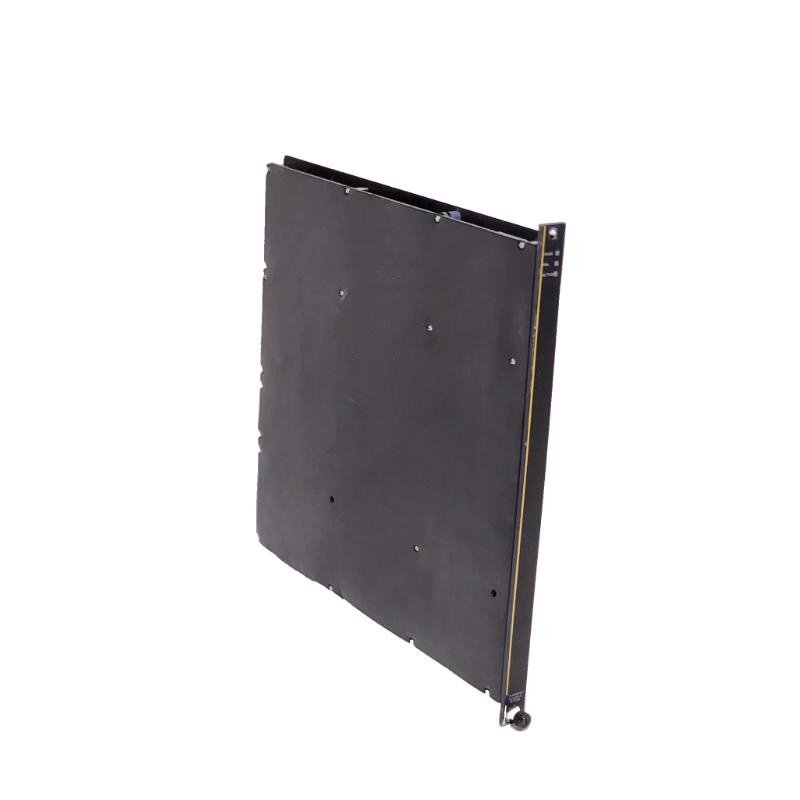

Triconex 3706 Thermocouple Analog Input Module

The Triconex 3706 Thermocouple Analog Input Module is designed for use in the Tricon™ safety and control systems, providing reliable and accurate thermocouple signal processing for temperature measurement in industrial environments. This module supports various thermocouple types (J, K, T, E, R, S, B, and C) and offers high-precision data acquisition with up to 16 channels per module. The 3706 is ideal for industries such as power generation, oil & gas, and chemical processing, where accurate temperature monitoring is essential for process control and safety.

Key Features

• Multi-Channel Support–Supports up to 16 thermocouple input channels per module, enabling efficient temperature monitoring in large-scale systems

• High-Accuracy Measurement–Provides precise temperature measurements with high-resolution analog-to-digital conversion (16-bit), ensuring reliable data for process control

• Wide Thermocouple Compatibility–Compatible with a wide range of thermocouple types (J, K, T, E, R, S, B, C), allowing for flexible sensor integration in different applications

• Cold-Junction Compensation–Includes built-in cold-junction compensation for accurate temperature readings in fluctuating ambient conditions

• Redundancy Support–Offers redundancy configurations to enhance system reliability and minimize the risk of failure in critical applications

• Integrated Diagnostics–Features real-time self-testing and fault detection to ensure the health of the module and the signals it receives

• Safety Certification–Designed to meet the safety integrity requirements of mission-critical industrial applications, including SIL 3 compliance for safe operation

• Hot-Swap Capability–Enables module replacement without shutting down the system, minimizing downtime during maintenance

Technical Specifications

Dimensions and Weight

Electrical Characteristics

Environmental Characteristics

System Compatibility

Industry Applications

• Power Generation–Enables accurate temperature monitoring of turbines, boilers, and reactors for safe and efficient power generation operations

• Oil & Gas–Provides precise temperature measurements in critical monitoring systems such as wellheads, pipeline temperature, and process safety systems

• Chemical Processing–Ensures precise temperature control in reactors, distillation columns, and heat exchangers for safe chemical production processes

• Pharmaceutical Manufacturing–Facilitates temperature control and monitoring in critical pharmaceutical production systems, ensuring compliance with industry standards

• Food and Beverage–Used for precise temperature regulation in food production processes, helping ensure consistent product quality and safety

The Triconex 3706 Thermocouple Analog Input Module offers accurate, high-fidelity temperature measurement for industrial process control in safety-critical applications. Its ability to support multiple thermocouple types, combined with diagnostic capabilities and redundancy, makes it an essential tool for temperature monitoring in complex industrial systems.
