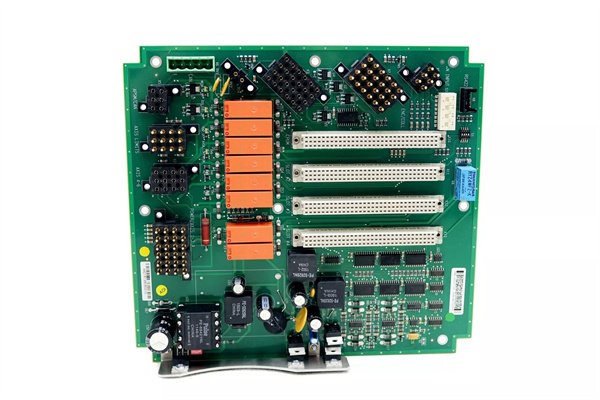

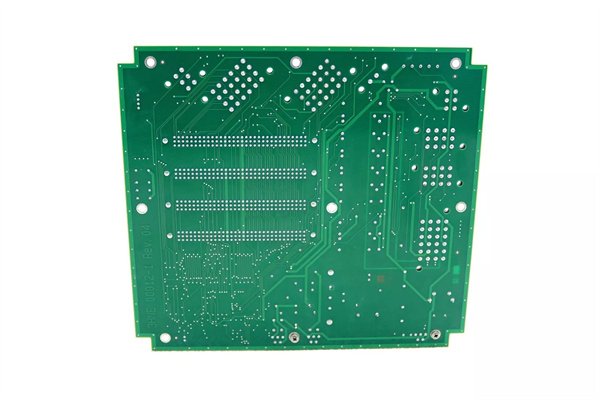

ABB MCOB-01 3HNE00010-1 Network Communication Module

The ABB MCOB-01 3HNE00010-1 is a high-performance network communication module designed for industrial automation systems, particularly compatible with ABB’s S900 I/O platform. As a key component in distributed control systems (DCS), the MCOB-01 3HNE00010-1 enables seamless data exchange between master stations and remote I/O devices, supporting protocols like PROFIBUS-DP for reliable real-time communication. Its compact design and rugged construction make it suitable for harsh environments, including hazardous zones (Zone 1/2), ensuring operational stability in industries such as manufacturing, energy, and chemical processing. The module integrates an internal power management system, allowing hot-swap capabilities for maintenance without system downtime. With advanced diagnostics and configurable parameters, the MCOB-01 3HNE00010-1 optimizes system efficiency and reduces operational costs.

Product Parameters

Advantages and Features

• Hot-Swap Capability: Internal power management allows online replacement of modules (e.g., power supply units) without system shutdown, minimizing downtime.
• Hazardous Environment Compliance: Certified for Zone 1/2 hazardous areas, ensuring safety in explosive atmospheres (e.g., chemical plants, oil refineries).
• Wide Temperature Range: Operates from -40°C to +70°C, suitable for extreme industrial environments.
• Modular Design: Supports up to 7 I/O expansion modules (4 analog + 3 digital), enabling flexible system scaling.
• Reliable Communication: PROFIBUS-DP protocol ensures low latency and high data integrity, with redundancy options for critical applications.
• Compact Footprint: Space-saving design (35mm width) ideal for distributed control setups.

Application Areas and Case Studies

Industries: Manufacturing, energy, oil & gas, chemical processing, water treatment.

Use Cases:

• Manufacturing: Integrates with robotic assembly lines to monitor real-time production data (e.g., automotive factories).
• Energy: Controls distributed generators in smart grids, ensuring seamless synchronization.
• Case Study: A European automotive plant reduced downtime by 30% using the MCOB-01 3HNE00010-1 in their automated welding cells. The module’s hot-swap feature and hazardous zone certification allowed maintenance during production, improving overall equipment effectiveness (OEE).

Competitor Comparison

Compared to similar modules, the MCOB-01 3HNE00010-1 offers:

• Superior Temperature Range: Supports -40°C to +70°C (versus standard 0°C to +50°C in competing products).
• Higher Expansion Capacity: Up to 7 I/O modules (versus 4–5 in comparable products).
• Integrated Hot-Swap: No external power cycling required for module replacement (a common limitation in legacy systems).
• Hazardous Zone Certification: ATEX/IECEx compliance as standard, reducing certification costs for end-users.

Selection Recommendations

• Compatibility: Ensure compatibility with your DCS platform (e.g., ABB S900 I/O).
• Environment: Specify modules with appropriate certifications (e.g., ATEX) for hazardous zones.
• Scalability: Choose based on I/O requirements (e.g., 4 analog + 3 digital modules for complex processes).
• Budget: Balance features (e.g., hot-swap, redundancy) with project costs—ideal for mid-to-high complexity systems.

Precautions

• Installation: Follow ABB’s guidelines for DIN rail mounting and wiring (IP65 protection required for outdoor use).
• Electrostatic Discharge (ESD): Use antistatic equipment during handling to prevent damage.
• Firmware Updates: Regularly update firmware via ABB’s engineering tools for optimal performance.
• Maintenance: Inspect connectors and cables quarterly; replace modules showing signs of wear (e.g., corrosion).
• Safety: Disconnect power before servicing non-hot-swappable components.
