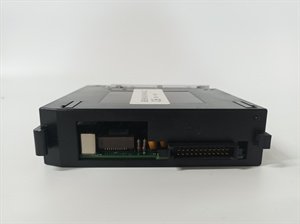

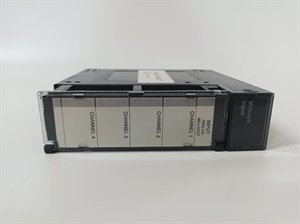

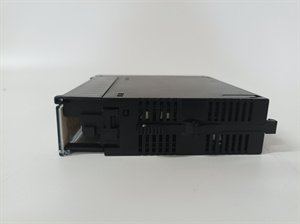

General Electric HE693ADC409A-22 Isolated Analog Input Module

The GE HE693ADC409A-22 is an isolated analog input module by General Electric, a renowned name in industrial automation. This module is an integral part of GE’s industrial control system offerings, designed to interface between field sensors and control systems such as programmable logic controllers (PLCs). With its 4 – channel configuration, the GE HE693ADC409A-22 can simultaneously handle multiple analog input signals. It supports input ranges of +/ – 25 mV, +/ – 50 mV, and +/ – 100 mV, making it suitable for applications where small – scale voltage signals need to be accurately measured. The 14 – bit resolution ensures that it can precisely capture the nuances of these input signals, providing reliable data for control and monitoring in industrial processes.

Technical Specifications

High – Precision Signal Acquisition

The GE HE693ADC409A-22‘s 14 – bit resolution enables it to measure analog signals with great accuracy. In industrial applications, where even minor fluctuations in sensor signals can impact the overall process, this high – precision data capture is invaluable. For example, in a chemical plant’s quality control system, it can precisely measure the voltage signals from sensors monitoring the concentration of chemical substances, ensuring that the production process adheres to strict quality standards.

Multiple Input Ranges

The ability to support input ranges of +/ – 25 mV, +/ – 50 mV, and +/ – 100 mV offers versatility. Different types of sensors in an industrial environment may output signals within these various ranges. This flexibility allows the GE HE693ADC409A-22 to interface with a wide array of sensors, from those measuring temperature in a power generation facility to sensors detecting pressure in a manufacturing plant.

Robust Isolation

With 1500 VAC isolation, the module is well – protected against electrical interference and potential damage. In industrial settings filled with high – voltage equipment and electromagnetic noise, this isolation ensures that the analog input measurements remain stable and reliable. It also safeguards the connected control systems from electrical surges, reducing the risk of system failures and costly downtime.

The GE HE693ADC409A-22 finds extensive use in manufacturing industries. In automotive manufacturing, it can be used to monitor the performance of robotic arms. By measuring the analog signals from sensors that detect the position, speed, and torque of the robotic arms, it enables precise control, ensuring accurate assembly of car parts. In the food and beverage industry, it plays a role in monitoring the filling levels of containers. The module can measure the voltage signals from sensors installed on filling machines, ensuring that each container is filled to the correct volume. In environmental monitoring applications, it can be used to measure the output of sensors that detect air quality parameters such as humidity and pollutant levels. The accurate data provided by the GE HE693ADC409A-22 helps in making informed decisions to maintain a healthy environment.

Installation and Maintenance

Pre – installation preparation: Before installing the GE HE693ADC409A-22, ensure the power to the industrial control system is switched off to prevent electrical accidents. Check the module for any visible signs of damage during transit. Verify that the installation environment meets the temperature and humidity requirements specified in the product manual. Also, confirm the compatibility of the module with the existing PLC system and that the wiring connections are correct as per the provided diagrams.

Maintenance recommendations: Regularly inspect the GE HE693ADC409A-22 for any signs of wear, such as loose connections or discolored components. Clean the module gently to remove dust that could affect its performance. Monitor the operating temperature to ensure it remains within the specified range. If any issues arise, consult the product manual for troubleshooting steps. For more complex problems, contact GE’s technical support for assistance.

Product Guarantee

GE stands firmly behind the quality of the GE HE693ADC409A-22. The module comes with a standard one – year warranty. During this period, if the product is found to have defects in materials or workmanship, GE will repair or replace it free of charge. Their dedicated technical support team is available to assist customers with any installation, operation, or maintenance queries. This reflects GE’s confidence in the reliability and performance of the GE HE693ADC409A-22 and their commitment to ensuring customer satisfaction in industrial automation applications.
