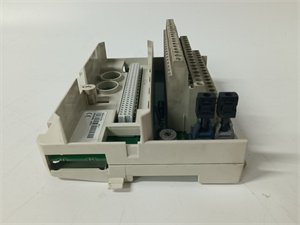

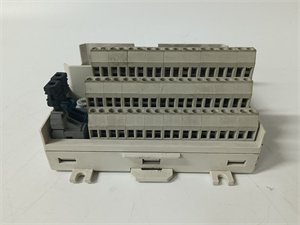

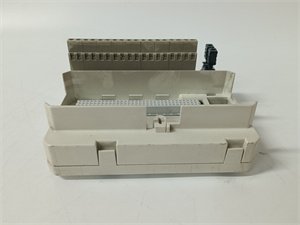

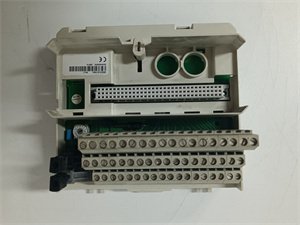

ABB GRBTU 3BSE013175R1 Gateway module

The ABB GRBTU 3BSE013175R1 is a versatile gateway module designed for seamless integration within ABB’s 800xA distributed control system (DCS). It acts as a critical communication bridge, enabling data exchange between different industrial protocols and the 800xA system, thereby facilitating interoperability between diverse field devices and the central control infrastructure.

Equipped with multiple communication interfaces supporting Modbus (RTU/TCP) and Profibus DP protocols, this gateway module ensures that legacy and modern devices can coexist and communicate efficiently in industrial automation environments. Its compact design and robust construction make it suitable for deployment in harsh industrial settings, ensuring reliable data transmission even in challenging conditions. The ABB GRBTU 3BSE013175R1 plays a key role in breaking down communication barriers, enabling centralized monitoring and control of heterogeneous industrial systems.

Detailed parameter table

Core advantages and technical highlights

Multi-protocol support: The ABB GRBTU 3BSE013175R1 supports Modbus RTU, Modbus TCP/IP, and Profibus DP, making it a flexible solution for integrating diverse field devices—such as motor drives, sensors, and actuators—that use different communication standards. This eliminates the need for multiple dedicated gateways, simplifying system architecture and reducing maintenance complexity. In a mixed industrial environment with both legacy Profibus devices and modern Modbus TCP sensors, this capability ensures all data is consolidated into the 800xA system for unified control.

Dual Ethernet and serial ports: With 2 Ethernet ports and 2 RS-485 serial ports, the module offers redundant communication paths, enhancing system reliability. If one Ethernet port or serial link fails, the alternate port automatically takes over, ensuring uninterrupted data flow. This redundancy is critical in applications like power generation, where communication downtime could lead to process disruptions or safety risks.

High data transfer efficiency: Supporting data rates up to 12 Mbps for Profibus DP and 115.2 kbps for Modbus RTU, the ABB GRBTU 3BSE013175R1 ensures fast and responsive communication. This high efficiency allows for real-time data exchange, enabling the 800xA system to make timely control decisions based on up-to-date field data. In high-speed manufacturing lines, for example, it ensures that production metrics from conveyors and robots are transmitted instantaneously to the central controller.

Easy configuration and integration: The module seamlessly integrates with ABB’s 800xA Engineering Studio, allowing for intuitive configuration of communication parameters, device mapping, and data translation rules. Engineers can quickly set up protocol conversions without extensive programming, reducing deployment time. This user-friendly design simplifies system upgrades and modifications, making it easy to adapt to changing industrial requirements.

Typical application scenarios

In chemical processing plants, the ABB GRBTU 3BSE013175R1 connects legacy Profibus DP motor drives and Modbus-based flow meters to the 800xA DCS. It translates data between protocols, enabling the central system to monitor drive status, adjust speeds, and track flow rates in real time. This integration ensures that all process variables are visible in a single HMI, allowing operators to optimize chemical mixing processes and respond quickly to deviations.

Within water and wastewater treatment facilities, the module links Modbus RTU-enabled level sensors and pressure transmitters to the 800xA system via Ethernet. It also connects Profibus DP-based valve actuators, enabling remote control of valve positions. By consolidating data from these devices, the gateway supports centralized management of filtration and pumping systems, ensuring efficient water treatment and compliance with environmental regulations.

In automotive manufacturing plants, the ABB GRBTU 3BSE013175R1 integrates Modbus TCP robots and Profibus DP conveyor systems into the 800xA DCS. It facilitates synchronized data exchange between these devices, allowing the central system to coordinate robot movements with conveyor speeds, optimizing assembly line efficiency. The redundant communication ports ensure uninterrupted operation, minimizing production downtime due to communication failures.

Installation, commissioning and maintenance instructions

Installation preparation: Before installing the ABB GRBTU 3BSE013175R1, ensure the 35mm DIN rail is securely mounted and properly grounded. Verify the operating environment meets the temperature (0°C to 60°C) and humidity (5-95% RH) requirements. Gather tools: screwdrivers, wire strippers, and a network cable tester. Check that the 24 VDC power supply is stable, fused at 1A, and has surge protection. Plan cable routing to separate power, serial, and Ethernet cables, minimizing electromagnetic interference.

Commissioning steps: Mount the module on the DIN rail and connect the power supply, serial cables (to Profibus/Modbus RTU devices), and Ethernet cables (to 800xA system and Modbus TCP devices). Power on the module and verify the status LED illuminates green (normal operation). Use 800xA Engineering Studio to configure protocol settings (baud rates, IP addresses), map devices to data points, and set up translation rules. Test communication by reading data from connected devices and verifying it appears correctly in the 800xA HMI. Validate redundancy by disconnecting one Ethernet/serial port and confirming data continues to flow through the alternate port.

Maintenance suggestions: Inspect the ABB GRBTU 3BSE013175R1 quarterly for loose connections, dust accumulation, or corrosion. Clean vents with compressed air to ensure proper cooling. Monitor system logs in the 800xA system to detect communication errors or device disconnections. Check LED status indicators regularly—red or flashing LEDs indicate faults requiring attention. Back up configuration settings monthly to a secure location. For firmware updates, use ABB’s official tools to ensure compatibility with the 800xA system and connected devices.
