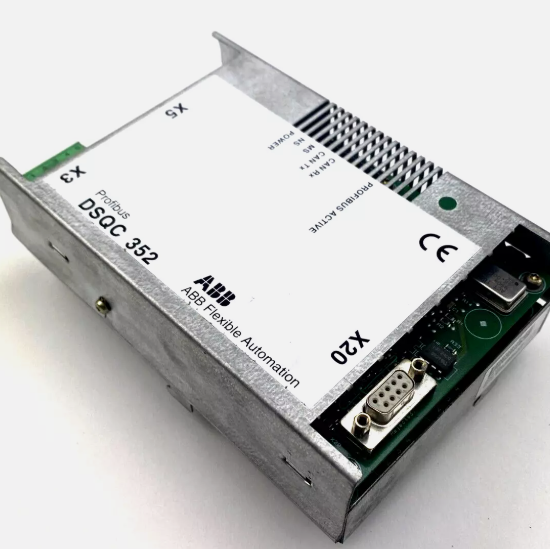

ABB DSQC352 Product Introduction

DSQC352 is a key component in ABB’s robot control system and is a high-performance robot controller.It is mainly used in the field of industrial automation,such as robot motion control,process automation and complex logic control scenarios.DSQC352 is widely used in manufacturing,automobile assembly,logistics automation,food processing and other industries with its stability and high performance.

Main functional features

Multi-axis synchronous control:DSQC352 supports multi-axis synchronous control,which can achieve sub-millimeter motion accuracy and meet various processing needs.

Flexible scalability:It adopts modular design and supports a variety of I/O expansion modules to facilitate system upgrades and function expansion.

Real-time processing capability:Equipped with a high-performance processor,it supports high-speed real-time data calculation and response to ensure the smooth execution of complex tasks.

Strong compatibility:Compatible with ABB’s mainstream robot system,supports a variety of communication protocols(such as Ethernet/IP,Profinet,etc.),and is easy to integrate into the existing automation architecture.

Reliability design:Adopting industrial-grade protection standards,adapting to harsh working environments(high temperature,vibration,etc.),ensuring long-term stable operation.

Technical parameters

The following parameters may vary depending on the specific product,but provide general reference

Number of control axes:supports up to 8-axis synchronous control.

I/O configuration

Digital input:32 points(expandable to 128 points).

Digital output:24 points(expandable to 96 points).

Analog input/output:8 channels(optional).

Communication interface

Ethernet:2 x 10/100Mbps(supports TCP/IP).

Fieldbus:supports Profinet,DeviceNet,etc.

Working voltage:24VDC(±10%).

Working environment

Temperature:0°C to 55°C(operation),-20°C to 70°C(storage).

Humidity:5%to 95%RH(no condensation).

Dimensions and installation

Dimensions:about 200mm x 150mm x 100mm(W x H x D).

Installation method:standard DIN rail installation.

Certification standards:CE certification,IEC 61131-2 industrial control equipment standard.

Application scenarios

Industrial robots:used for robot arm trajectory control,welding,painting,assembly,etc.

Automated production lines:coordinated control of material handling,packaging,and testing equipment.

Smart warehousing:AGV(automatic guided vehicle)path planning and scheduling.

Process control:process automation monitoring and regulation in the chemical and food industries.
