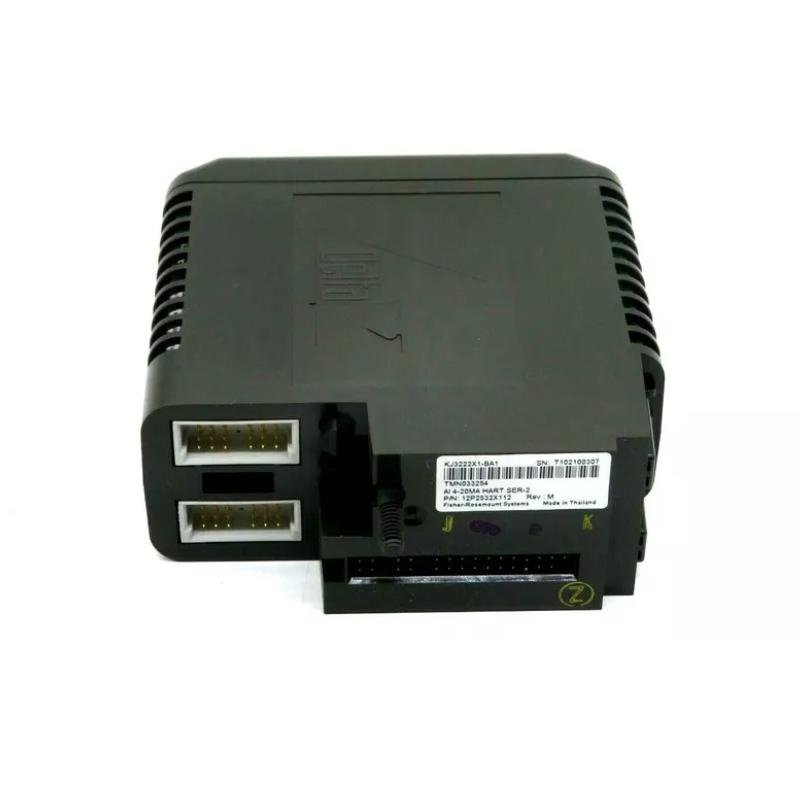

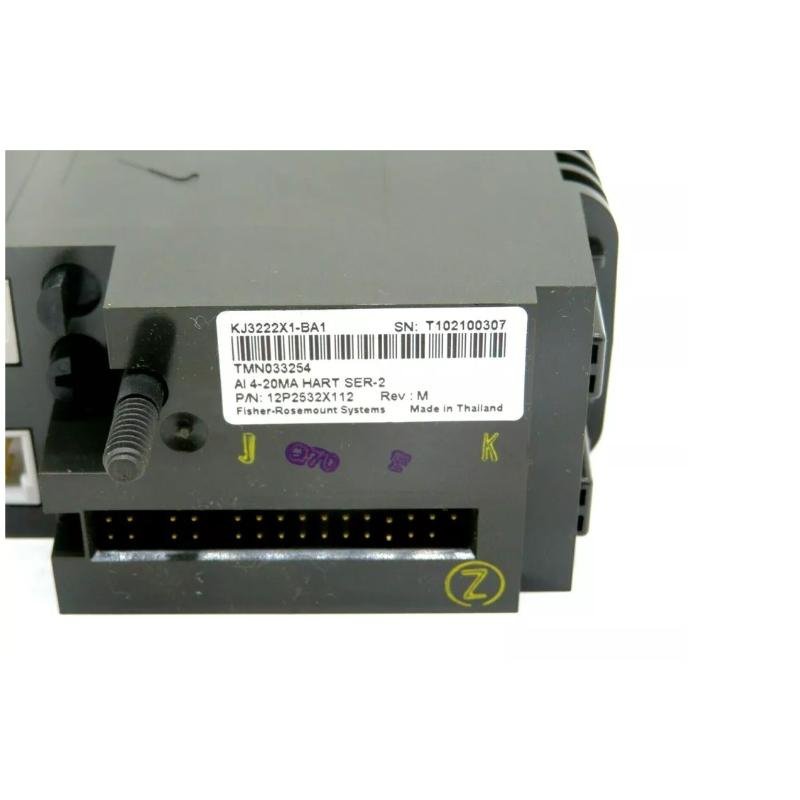

Emerson KJ3222X1-BA1 Analog Input Card
Manufacturer: Emerson
Product Number: KJ3222X1-BA1
Category: Analog Input Card
System Compatibility: Emerson DeltaV DCS
Application: High-precision analog input for industrial applications requiring exceptional accuracy and reliability
Product Description
The Emerson KJ3222X1-BA1 Analog Input Card is designed for high-precision analog input in Emerson’s DeltaV™ distributed control system (DCS). It supports a wide range of industrial applications, offering exceptional accuracy and reliability in real-time process monitoring. The card is engineered for seamless integration with other control modules, providing real-time data acquisition and fast processing for critical industrial processes. This module is ideal for use in industries where precise control and monitoring of variables such as pressure, temperature, and flow are required.
The KJ3222X1-BA1 card offers high-resolution input, and its robust build ensures performance even in challenging industrial environments. Its modular design allows for easy maintenance and scalability, making it a key component for optimizing automation systems.
Key Features
-
High-Resolution Input: Provides up to 16-bit resolution, delivering precise measurements and minimal signal noise.
-
Wide Input Range: Supports various input types including 4-20 mA, 0-10 V DC, and other industry-standard analog signals.
-
Advanced Diagnostics: Includes built-in diagnostics for fault detection and real-time monitoring, improving maintenance efficiency.
-
Compact and Modular Design: Allows for easy integration and minimal space requirements in control systems.
-
High Reliability: Designed to withstand harsh industrial conditions and provide continuous performance.
-
Hot Swappable: Can be replaced or serviced without system shutdown, enhancing system uptime.
Technical Specifications
Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 107 x 41 x 105 mm |
| Weight | 0.18 kg |
General Information
| Item | Specification |
|---|---|
| Model | KJ3222X1-BA1 |
| Manufacturer | Emerson |
| Installation | DIN Rail Mountable |
| Power Supply | 24 V DC |
| Operating Temp | -20°C to +60°C |
| Storage Temp | -40°C to +85°C |
| Humidity Range | 5% to 95% RH (non-condensing) |
Input Characteristics
| Item | Specification |
|---|---|
| Input Type | Analog (4-20 mA, 0-10 V DC) |
| Resolution | 16-bit |
| Input Range | 4-20 mA, 0-10 V DC |
| Input Impedance | ≥ 10 kΩ |
| Conversion Time | < 100 ms |
Electrical Characteristics
| Item | Specification |
|---|---|
| Power Consumption | < 3 W |
| Isolation Voltage | Up to 1500 Vrms |
| Channel Isolation | 1500 Vrms |
Industry Applications
-
Process Control: Essential for accurate monitoring of process variables such as temperature, pressure, and level in industries like oil & gas, petrochemical, and chemical manufacturing.
-
Energy & Power Generation: Ideal for monitoring critical parameters in power plants, including temperature and pressure sensors.
-
Water Treatment: Used in water and wastewater treatment plants for monitoring various water quality parameters, including pH, turbidity, and chemical concentration.
-
Manufacturing Automation: Perfect for controlling and monitoring equipment in automated production environments, ensuring precise operation.
-
HVAC Systems: Provides input for temperature, pressure, and humidity monitoring in HVAC systems for both commercial and industrial buildings.
The Emerson KJ3222X1-BA1 Analog Input Card is a highly reliable, high-precision solution for industrial applications that require real-time data acquisition and processing. With its wide input range, high resolution, and robust diagnostic capabilities, this module ensures optimal performance in demanding environments. It is an essential component in Emerson’s DeltaV™ DCS for industries where uptime, accuracy, and reliability are critical.
