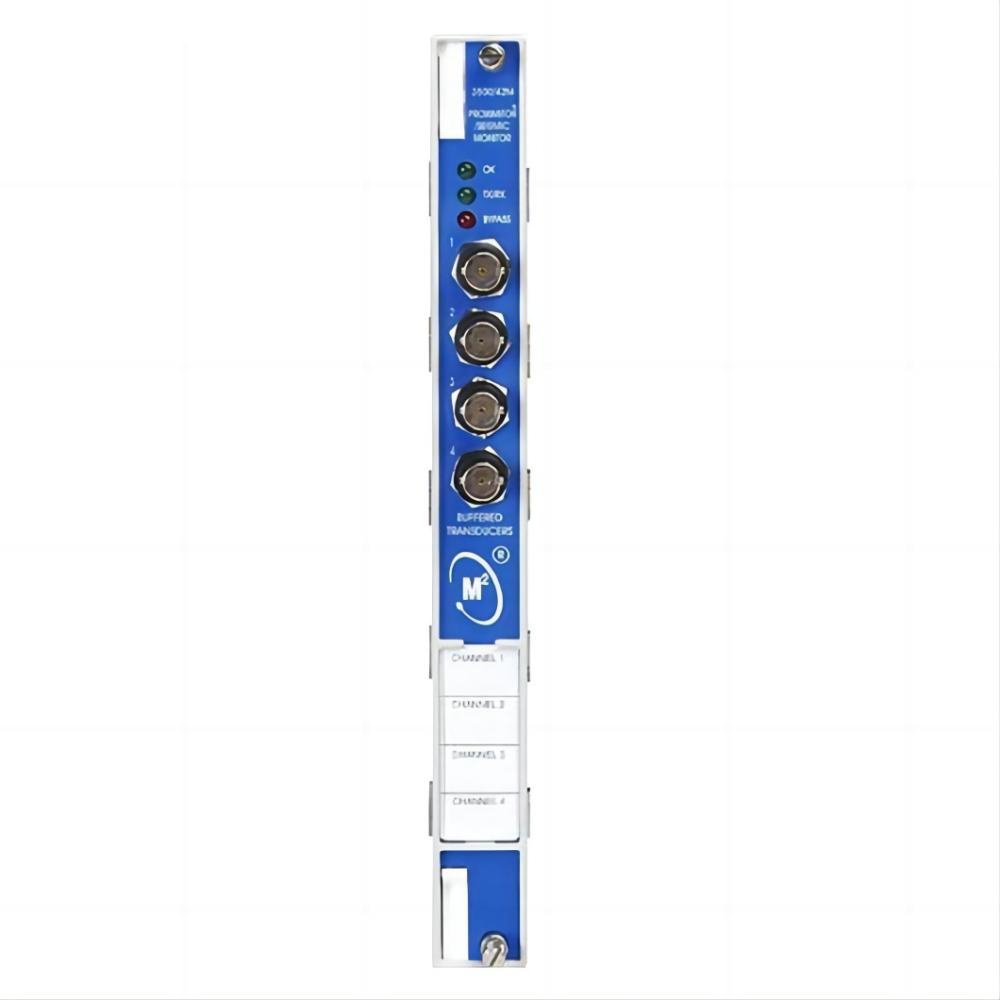

Bently Nevada 3500/42M 176449-01 Proximitor / Seismic Monitor
Manufacturer: Bently Nevada
Product Number: 3500/42M (176449-01)
Category: 4-Channel Proximitor / Seismic Monitor
Number of Channels: 4
Series: 3500 Series Machinery Protection System
Sensor Support: Proximity probes, velocity sensors, seismic transducers
Application: Machinery protection and condition monitoring for critical rotating equipment
Product Description
The Bently Nevada 3500/42M Proximitor / Seismic Monitor is a four-channel machinery protection and condition monitoring module designed for use within the 3500 Series rack system. It accepts signals from proximity probes, velocity sensors, or accelerometers, providing precise measurements of radial vibration, thrust position, differential expansion, eccentricity, velocity, acceleration, and shaft absolute motion.
The 3500/42M continuously processes these inputs and compares them to user-defined alert and danger thresholds. When limits are exceeded, the monitor initiates alarms or trip signals to protect critical rotating equipment. Each pair of channels can be configured for different measurement functions, enabling a single module to perform two independent monitoring roles simultaneously.
This module is widely used for the protection of turbines, compressors, motors, pumps, and other rotating machinery where real-time vibration and position monitoring are essential for safe, reliable operation.
Key Features
-
Four independent input channels (configured in two pairs).
-
Supports Proximitor, velocity, or acceleration sensor inputs.
-
Real-time alarm and trip logic for machinery protection.
-
Configurable measurement modes: vibration, thrust, position, or acceleration.
-
High-resolution filtering and signal conditioning for accurate diagnostics.
-
Direct interface with the 3500 rack system for continuous monitoring.
-
Compact modular design for simplified installation and maintenance.
Technical Specifications
| Parameter | Specification | Description |
|---|---|---|
| Model Number | 3500/42M | Four-channel Proximitor / Seismic Monitor |
| Part Number | 176449-01 | Standard version with non-barrier I/O |
| Number of Channels | 4 (configured as two pairs) | Each pair can perform a unique measurement type |
| Input Types | Proximity probes, velocity sensors, accelerometers | Compatible with Bently Nevada transducers |
| Measurement Functions | Radial vibration, axial thrust, differential expansion, eccentricity, acceleration, shaft absolute | Configurable via software |
| Frequency Response (−3 dB) | Direct filter: 4 Hz–4 000 Hz or 1 Hz–600 Hz; Gap filter: 0.09 Hz | Adjustable per configuration |
| Input Sensitivity | 3.94 mV/µm (100 mV/mil) or 7.87 mV/µm (200 mV/mil) | Determined by probe system |
| Input Impedance | 10 kΩ typical | Ensures signal accuracy and stability |
| Power Consumption | Approximately 7.7 W typical | Standard rack configuration |
| Power Supply | Provided through the 3500 rack backplane | No external supply required |
| Output Signals | Buffered dynamic signal and 4–20 mA proportional outputs | For monitoring and diagnostics |
| Alarm Functions | Alert and danger setpoints per channel | Fully programmable |
| Rack Requirements | One full-height front slot and one rear I/O slot | Standard 3500 Series rack installation |
| Operating Temperature Range | −30 °C to +65 °C (−22 °F to +149 °F) | Industrial environment rating |
| Storage Temperature Range | −40 °C to +85 °C | Long-term storage capability |
| Humidity | 95% non-condensing | Suitable for control-room environments |
| Dimensions (H × W × D) | 241.3 mm × 24.4 mm × 163.1 mm (9.50 in × 0.96 in × 6.42 in) | Compact module for dense rack systems |
| Weight | Approx. 0.46 kg (1.01 lb) | Lightweight design for easy handling |
| Mounting Type | Plug-in rack module | Front insertion with rear I/O module connection |
| Material | Industrial aluminum alloy housing | Durable and EMI-shielded |
| Compliance | CE, CSA, ATEX (depending on version) | Meets international standards |
| Country of Origin | United States of America (USA) | Manufactured in Minden, Nevada |
