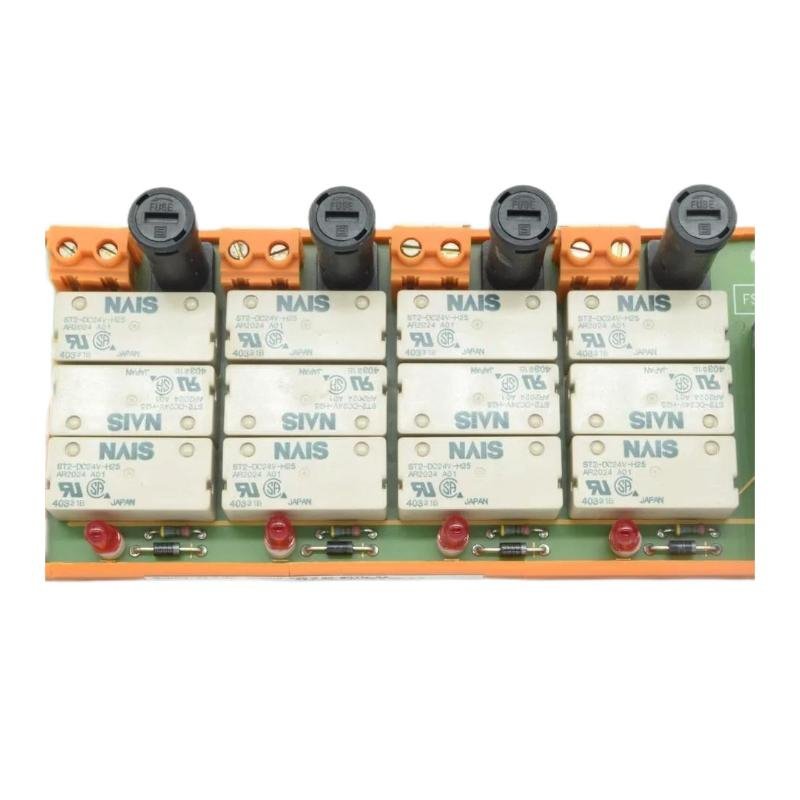

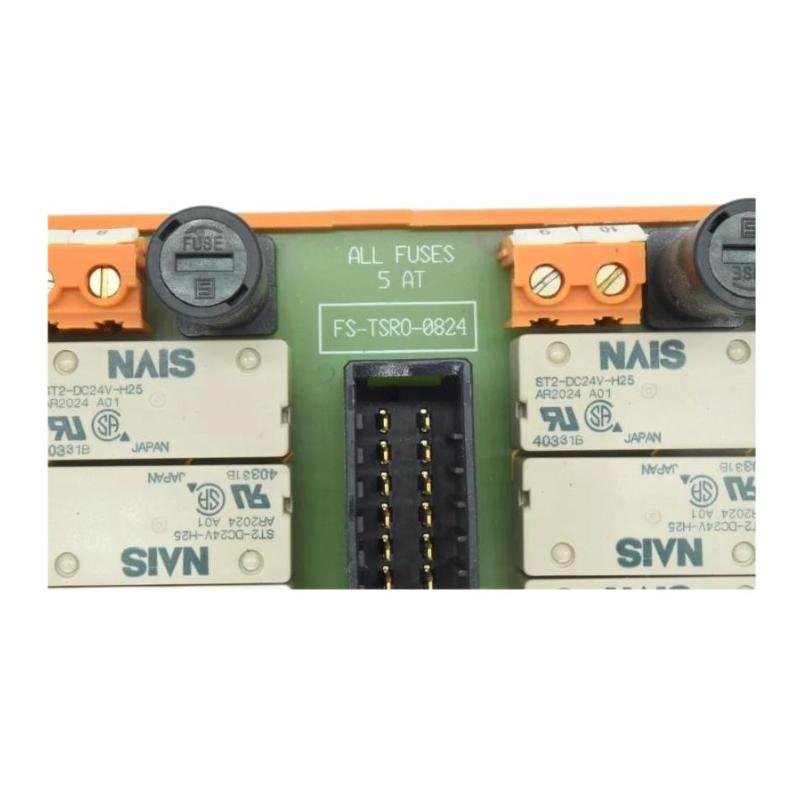

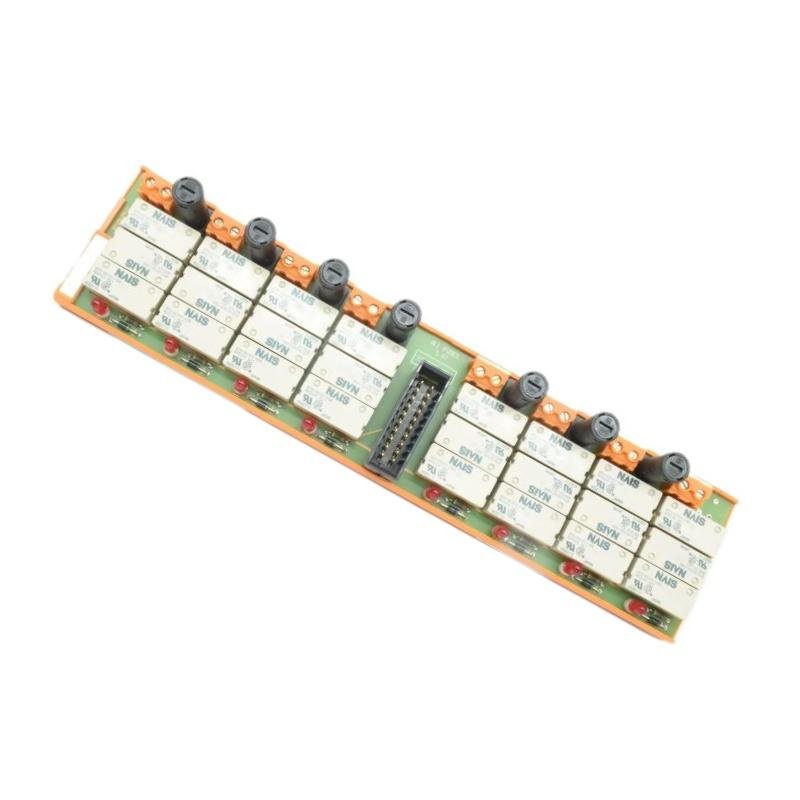

Honeywell FS-TSRO-0824 Digital Output Field Termination Assembly
Manufacturer: Honeywell
Product Number: FS-TSRO-0824
Category: Digital Output Field Termination Assembly (FTA)
System Compatibility: Honeywell Safety Manager, Fail-Safe Control (FSC) systems
Number of Channels: 8
Output Type: 24 V DC digital outputs
Output Current: 0.5 A per channel
Isolation: 1500 V channel-to-channel and channel-to-ground
Product Description
The Honeywell FS-TSRO-0824 is a Digital Output Field Termination Assembly (FTA) specifically designed for use in safety-critical control systems, including the Honeywell Safety Manager platform. It serves as the output interface for transmitting digital control signals to field actuators such as solenoid valves, alarms, and relays. Supporting 8 isolated digital output channels with diagnostic and redundancy options, this FTA is compliant with SIL3 safety standards and ideal for use in high-integrity systems.
Thanks to its modular construction, robust electrical isolation, and compatibility with Honeywell’s safety system, the FS-TSRO-0824 ensures stable and fault-tolerant operation in demanding industrial environments including oil & gas, chemical processing, power generation, and transportation.
Key Features
-
SIL3 Certified: Suitable for high-integrity safety instrumented systems.
-
8 Isolated Channels: Each channel is electrically isolated and protected.
-
Modular Design: Simplifies installation, maintenance, and replacement.
-
Redundancy and Isolation: Improves reliability and mitigates single point failures.
-
High EMC Compliance: Designed for electrically noisy industrial environments.
-
Standard Terminal Blocks: Easy field wiring and maintenance.
Technical Specifications
Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 120 × 50 × 110 mm |
| Weight | 0.4 kg |
General Information
| Item | Specification |
|---|---|
| Model | FS-TSRO-0824 |
| Manufacturer | Honeywell |
| Type | Digital Output Field Termination Assembly |
| Output Channels | 8 |
| Wiring | Screw clamp terminals |
| Mounting | Rack / DIN rail |
Electrical Specifications
| Item | Specification |
|---|---|
| Signal Type | Digital Output |
| Rated Voltage | 24V DC |
| Max Current per Channel | 0.5 A (1 A peak) |
| Output Isolation | Channel and system level electrical isolation |
| Grounding Options | Channel-specific or common ground |
| Power Consumption | ≤ 6 W |
| Insulation Resistance | ≥ 100 MΩ (500V DC) |
Compatibility and Diagnostics
| Item | Specification |
|---|---|
| Compatible Systems | Honeywell Safety Manager |
| Communication Interface | Internal I/O system bus |
| Fault Diagnostics | Open/short circuit detection (via main module) |
| Redundancy Support | Yes |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% to 95% RH (non-condensing) |
Industry Applications
The FS-TSRO-0824 module is widely used in the following sectors to provide safe and reliable digital output connections:
-
Oil & Chemical Industry: For ESD signal output to actuators and interlocks.
-
Gas Distribution and Energy: Automated control of pressure regulation and shut-off valves.
-
Power Industry: For triggering alarms, circuit breaker control, and safety outputs.
-
Transportation and Tunnel Systems: Emergency lighting and ventilation control output.
-
Pharmaceutical and Food Processing: Cleanroom automation and environmental safety alerts.
Its dependable signal integrity and ease of maintenance make the FS-TSRO-0824 an essential component in any high-availability safety automation system.
