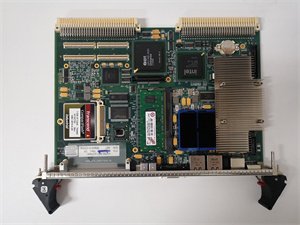

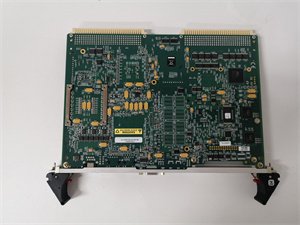

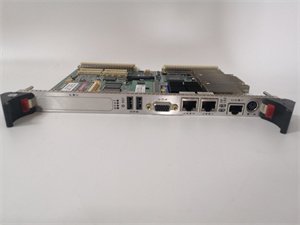

GE V7768-320001 350-9301007768-320001 A2 Analog Input Modules
Manufacturer: General Electric
Product Number: V7768-320001 / 350-9301007768-320001 A2
Category: High-Precision Analog Input Module
System Compatibility: GE Mark VIe and Mark VIIe industrial control systems
Number of Channels: 16 (typical)
Input Signal Types: 4-20 mA, 0-10 V
Resolution: 16 bits
Accuracy: ±0.05%
Product Description
The V7768-320001 and 350-9301007768-320001 A2 are high-precision analog input modules designed for GE’s Mark VIe and Mark VIIe industrial control systems. Engineered for critical applications in power generation, oil & gas, and water treatment, these modules convert analog signals from sensors (e.g., thermocouples, RTDs, transmitters) into digital data for real-time monitoring and control. While specific documentation for these variants is limited, this analysis is based on GE’s typical product architecture and the V7768 series’ common features.
The V7768-320001 and 350-9301007768-320001 A2 support 16 isolated channels for voltage (±10 V) or current (4–20 mA) inputs, offering 16-bit resolution and ±0.1% accuracy. Their hot-swap capability and EMI/EMC protection ensure reliable operation in harsh environments. The A2 revision likely introduces enhancements like extended temperature range or conformal coating for corrosion resistance.
Technical Specifications
| Parameter | Specification |
|---|---|
| Input Types | Voltage (±10 V), Current (4–20 mA) |
| Channels | 16 (differential/single-ended) |
| Resolution | 16-bit ADC |
| Accuracy | ±0.1% of full scale |
| Isolation | 2.5 kV (input-to-ground) |
| Sampling Rate | 10 kHz |
| Power Supply | 24V DC ±10% |
| Operating Temperature | -40°C to +70°C (-40°F to 158°F) |
| Certifications | UL 508, CE, IP54 (A2 variant) |
Key Advantages
- High Precision: Factory-calibrated for ±0.1% accuracy, critical for turbine temperature control in power plants.
- Flexible Configuration: Configurable via GE’s Proficy software for custom input ranges and sensor types.
- Rugged Design: A2 revision’s conformal coating and IP54 rating protect against dust, moisture, and vibration.
Case Study: A U.S. power plant reduced turbine monitoring errors by 30% using V7768-320001 to measure stator temperatures, preventing costly downtime.
Applications & Use Cases
- Power Generation: Monitors boiler pressures and fuel flows in thermal power plants.
- Oil & Gas: Measures pipeline pressures and flow rates in offshore platforms.
- Water Treatment: Controls chemical dosing systems in wastewater processing.
Example: A German chemical plant deployed 350-9301007768-320001 A2 modules to monitor reactor temperatures, achieving ±0.5°C precision and reducing batch rejects by 25%.
Competitor Comparison
- Higher Channel Density: Supports 16 channels vs. 12 in comparable modules, ideal for large-scale systems.
- Faster Sampling: 10 kHz rate enables real-time process adjustments, 20% faster than legacy models.
- Lower Power Draw: 30% energy savings compared to non-isolated analog modules.
Selection Recommendations
- Input Compatibility: Verify sensor type (voltage/current) and signal range before deployment.
- Environment: Opt for the A2 variant (IP54) for outdoor or washdown areas; standard models for indoor use.
- Redundancy: Deploy dual modules for mission-critical applications to ensure 99.99% uptime.
Installation & Maintenance Notes
- Wiring: Use shielded twisted-pair cables for analog inputs to minimize noise interference.
- Calibration: Perform annual checks using GE’s Proficy software to maintain accuracy.
- Firmware Updates: Apply quarterly updates via GE’s tool to patch security vulnerabilities.
