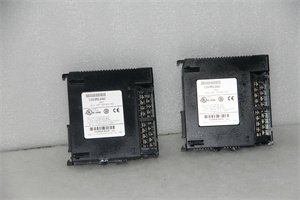

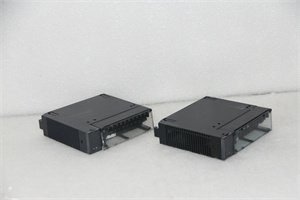

General Electric IC693MDL646 Discrete Input Module

The GE IC693MDL646 is a high – performance discrete input module designed for the GE Fanuc 90 – 30 series programmable logic controllers (PLCs). It serves as a crucial interface between the PLC and various external input devices, such as proximity sensors, push buttons, and switches. This module offers 16 input points, which can handle positive or negative logic, providing great flexibility for different industrial automation applications. With its wide input voltage range from 0 to 30 VDC and a nominal input voltage of 24 VDC, the IC693MDL646 can adapt to various power supply conditions. It ensures reliable signal reception and processing, contributing to the stable operation of the entire automation system.

Technical Specifications

Wide Voltage Range: The GE IC693MDL646 supports an input voltage range of 0 – 30 VDC, making it suitable for different power supply scenarios in industrial settings. This feature enhances its adaptability and reduces the need for additional voltage conversion equipment.

Rapid Response: With a fast response time of 1 ms on/off, it can quickly capture and process input signals. This is crucial for applications that require real – time monitoring and control, ensuring that the PLC can promptly respond to changes in the external environment.

Reliable Isolation: The module provides 1500 – volt isolation between the field side and the logic side. This isolation protects the internal circuitry of the PLC from electrical noise and potential interference, improving the overall reliability and stability of the control system.

Compact Design: Weighing only 0.5 kg and with dimensions of 4.4 cm x 29.2 cm x 22.2 cm, it has a compact structure that saves space in control cabinets. This is beneficial for installations where space is limited, allowing for more efficient use of the available space.

The GE IC693MDL646 is widely used in various industrial automation fields. In manufacturing plants, it can be used to connect sensors and switches on production lines to the PLC, enabling the monitoring and control of production processes. For example, it can detect the status of limit switches on conveyor belts to ensure the proper operation of the conveying system. In the power industry, it can be applied to monitor the status of circuit breakers and switches in substations. By connecting to relevant sensors, the IC693MDL646 can provide real – time information about the on – off state of these devices to the control system, helping to ensure the safety and stability of power supply. In addition, in the field of building automation, it can be used to connect door sensors, temperature sensors, and other devices to the building’s control system, enabling intelligent management of the building’s environment and energy.

Installation and Maintenance

Pre – installation preparation: Before installing the GE IC693MDL646, make sure to turn off the power of the relevant equipment. Check the installation environment to ensure that it meets the requirements of the module, such as appropriate temperature, humidity, and no strong electromagnetic interference. Prepare the necessary tools for installation, such as screwdrivers, and carefully read the installation instructions provided with the module.

Maintenance recommendations: Regularly check the connection status of the IC693MDL646 to ensure that the terminal block connections are firm and there is no looseness. Clean the surface of the module regularly to remove dust and dirt. Monitor the operating status of the module, including input signals and power consumption. If any abnormal conditions are found, such as incorrect input signals or excessive power consumption, promptly check and troubleshoot according to the troubleshooting guide in the product manual.

Product Guarantee

GE provides a comprehensive product guarantee for the IC693MDL646. The company ensures the quality of the product, guaranteeing that it is free from defects in materials and workmanship. With a professional after – sales service team, GE offers timely technical support and solutions to customers. If there are any problems with the product during the warranty period, GE will repair or replace the product free of charge according to the specific situation, demonstrating the company’s confidence in the product quality and its commitment to customer satisfaction.
